4 Electrical installation

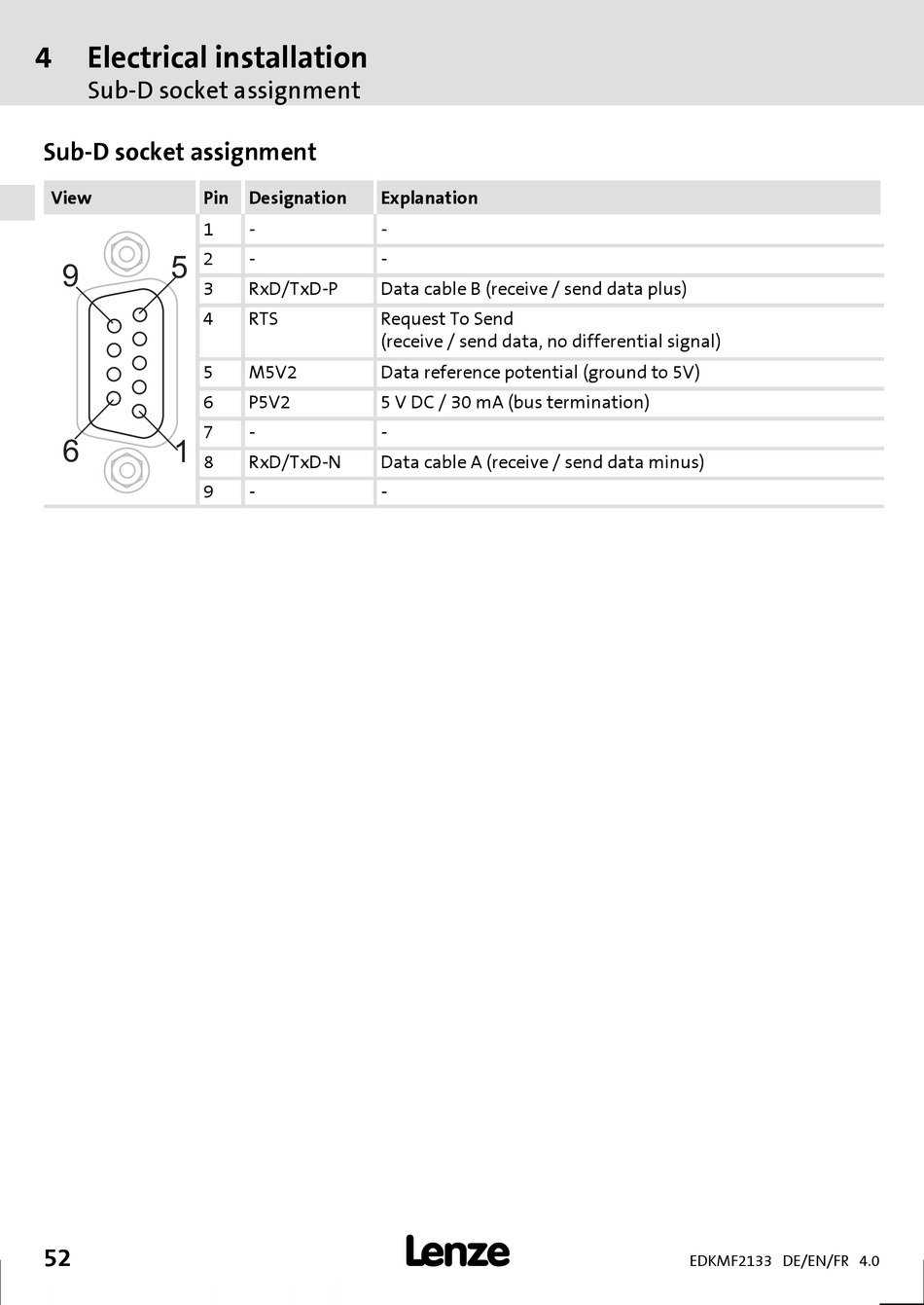

Sub-D socket assignment

Sub-D socket assignment
View Pin
1
2
5
9
3
4
5
6
7
6
1
8
9
52
Designation Explanation
- -
- -
RxD/TxD-P Data cable B (receive / send data plus)
RTS Request To Send
(receive / send data, no differential signal)
M5V2 Data reference potential (ground to 5V)
P5V2 5 V DC / 30 mA (bus termination)
- -
RxD/TxD-N Data cable A (receive / send data minus)
- -

