Electrical installation

Wiring to a host

4 Electrical installation
Wiring to a host

Danger!
Additional electrical isolation must be installed if
an 820X and 821X controller is connected to the host and
ƒ
reliable electrical isolation (reinforced insulation) in accordance with
ƒ
EN 61800-5-1 is needed.

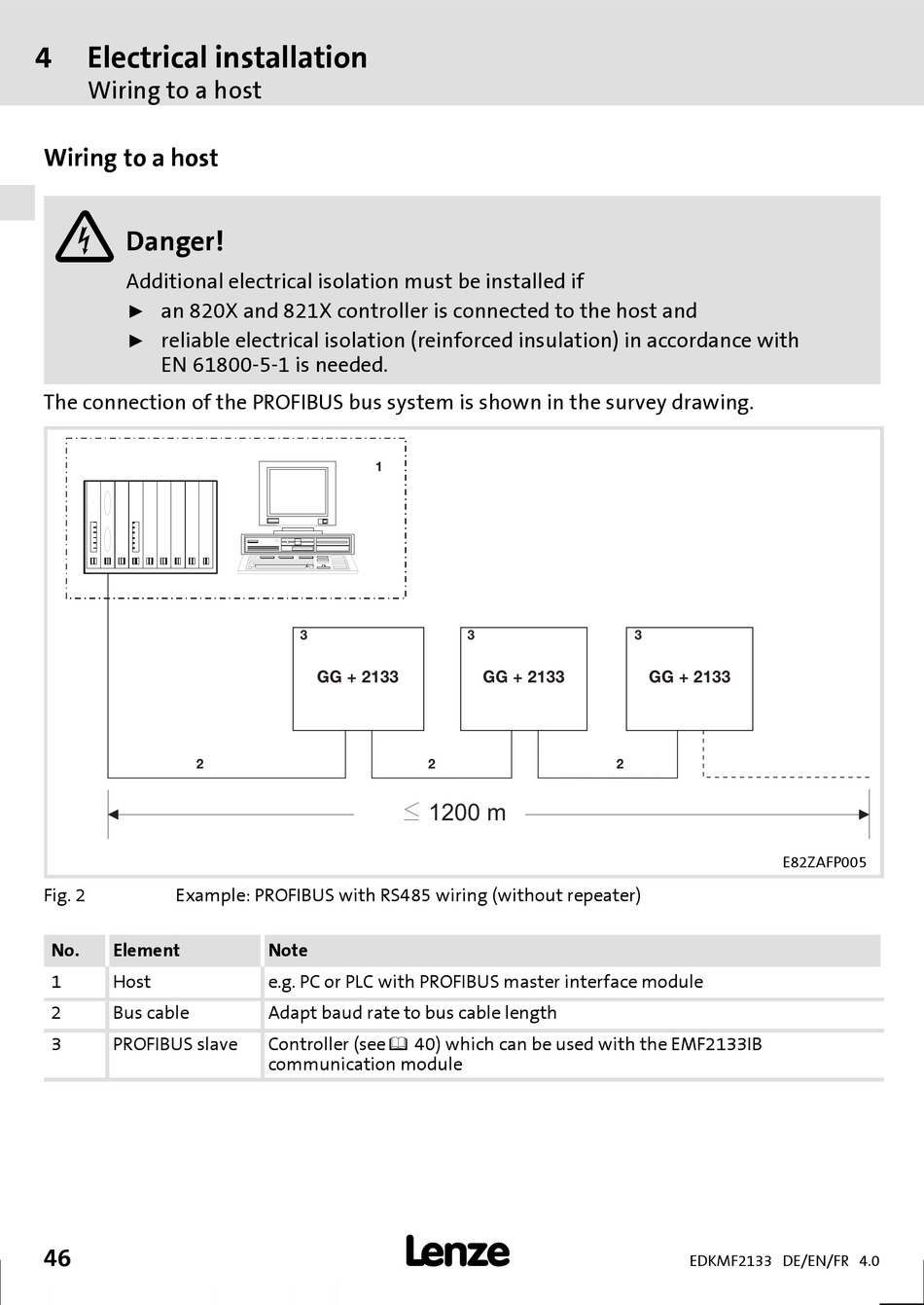

The connection of the PROFIBUS bus system is shown in the survey drawing.
2
Fig. 2 Example: PROFIBUS with RS485 wiring (without repeater)
No. Element
1 Host
2 Bus cable
3 PROFIBUS slave
46
1
3
GG + 2133
2
0 m
1200 m
Note
e.g. PC or PLC with PROFIBUS master interface module
Adapt baud rate to bus cable length
Controller (see 40) which can be used with the EMF2133IB
communication module

3 3
GG + 2133
2
GG + 2133
