Mechanical installation

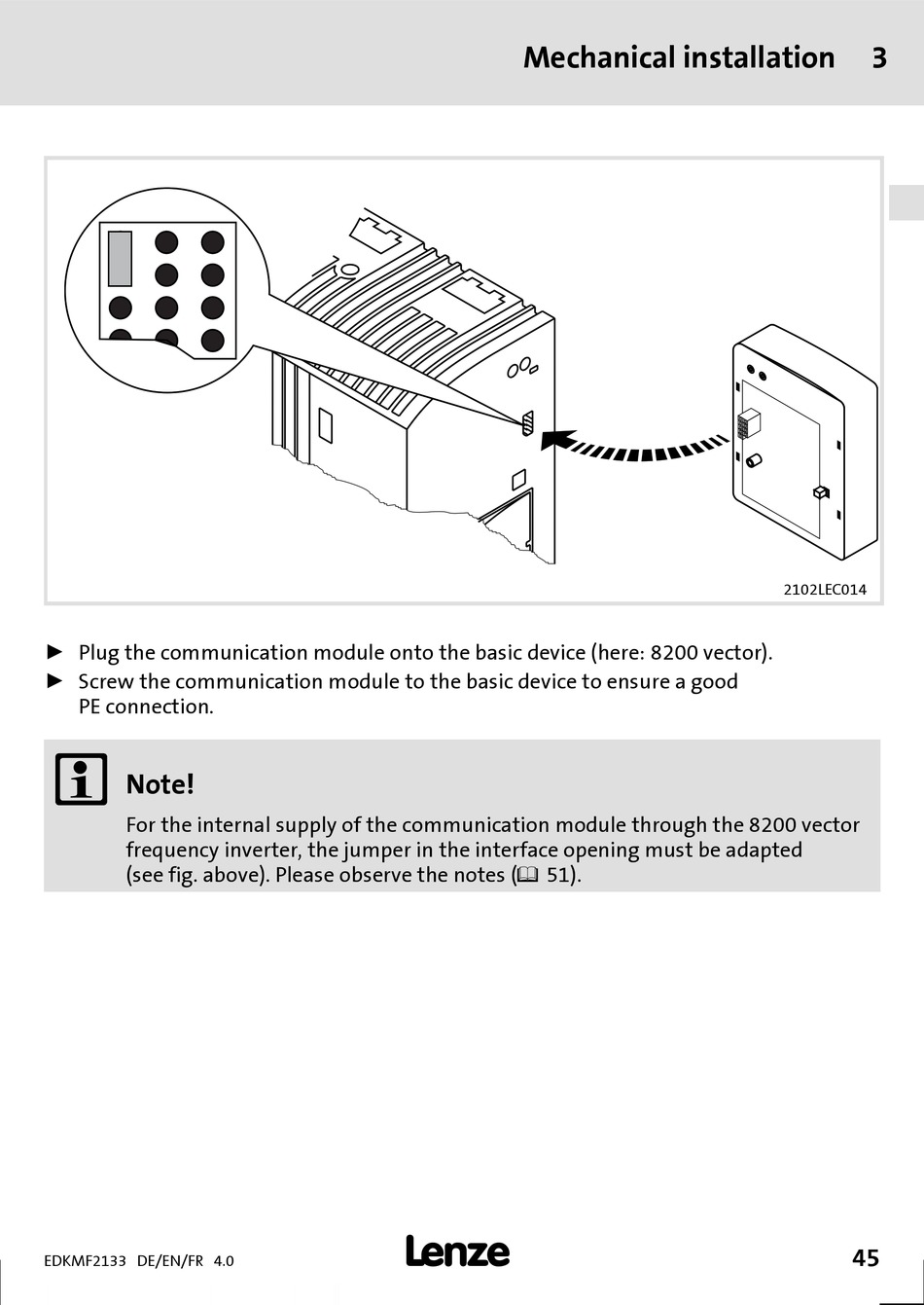

ƒ Plug the communication module onto the basic device (here: 8200 vector).
ƒ Screw the communication module to the basic device to ensure a good
PE connection.

Note!
For the internal supply of the communication module through the 8200 vector
frequency inverter, the jumper in the interface opening must be adapted
(see fig. above). Please observe the notes (51).
EDKMF2133 DE/EN/FR 4.0
Mechanical installation

3
2102LEC014
