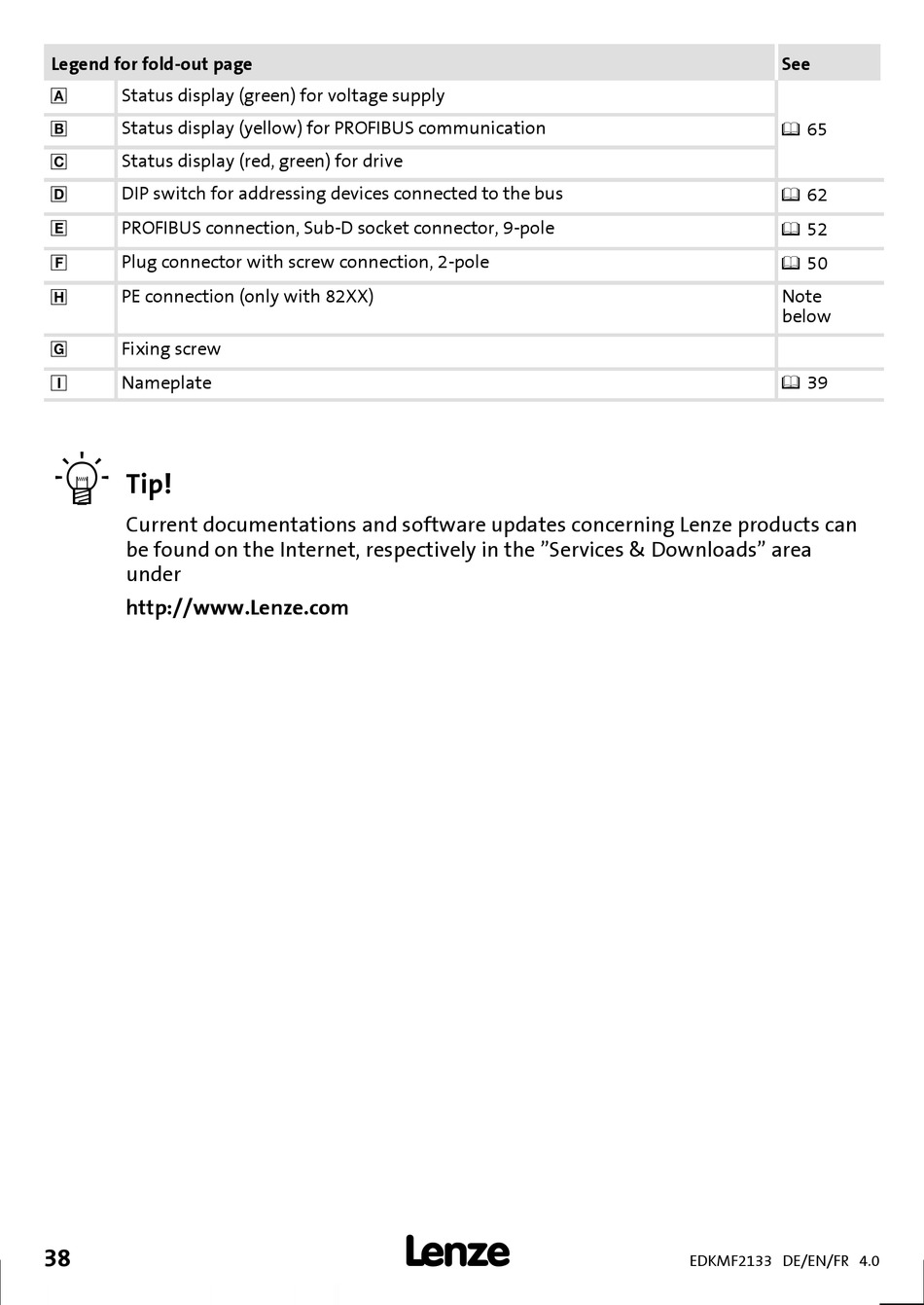

Legend for fold-out page
Status display (green) for voltage supply

Status display (yellow) for PROFIBUS communication

Status display (red, green) for drive

DIP switch for addressing devices connected to the bus

PROFIBUS connection, Sub-D socket connector, 9-pole

Plug connector with screw connection, 2-pole

PE connection (only with 82XX)

Fixing screw

Nameplate


Tip!
Current documentations and software updates concerning Lenze products can
be found on the Internet, respectively in the "Services & Downloads" area
under
http://www.Lenze.com
