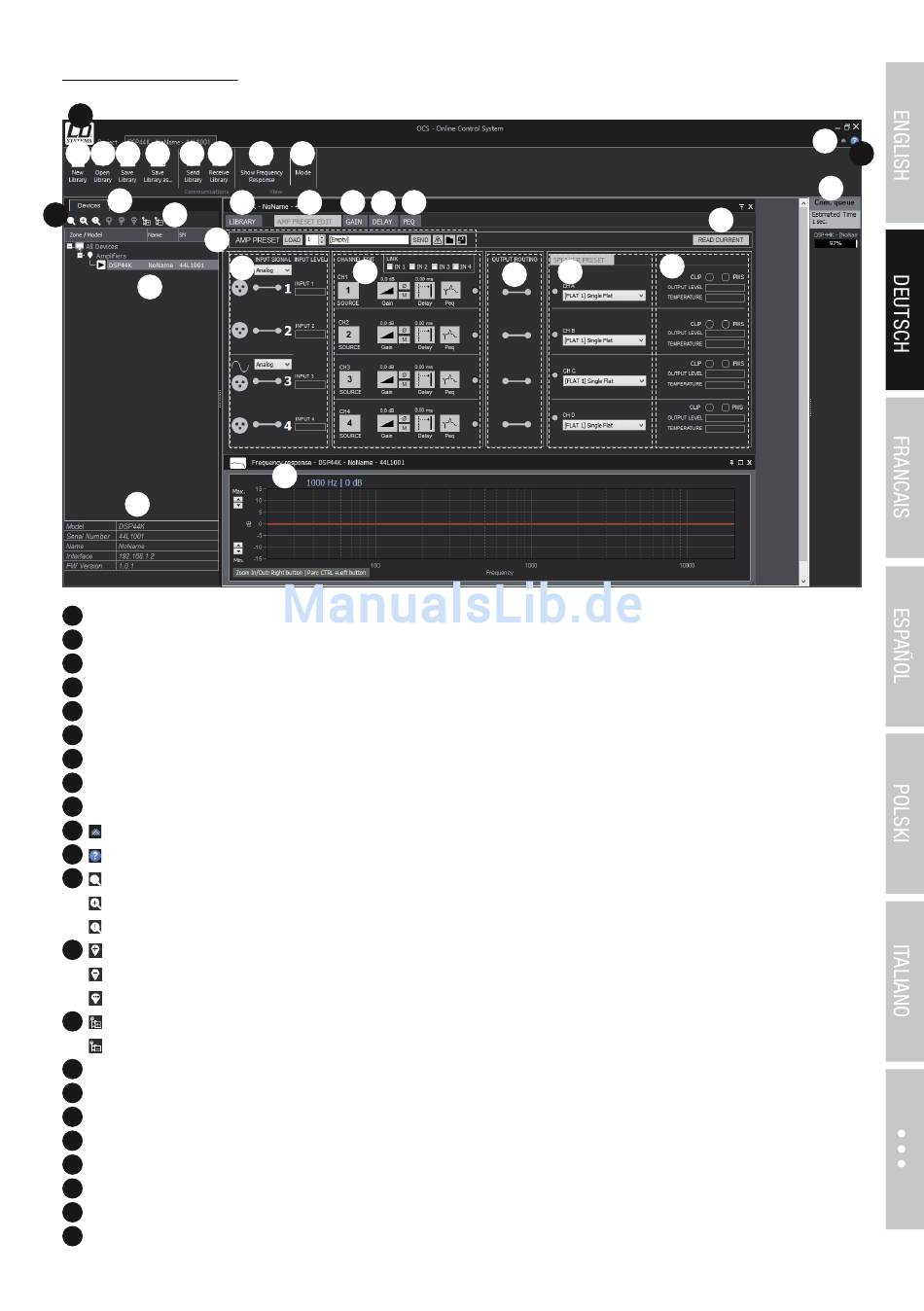

OVERVIEW WINDOW

7
8 9 10 11 12 13
19
18 20
29
27
28
7
LD Systems – click button to access software information window (About application) and switch-off button (exit).
8
New Library – create new preset library. The currently loaded custom amp and speaker presets will be removed from the list of presets.
9
Open Library – load preset library from PC memory. Click to select and open library.
10
Save Library – save preset library to PC. Click to select the location, enter name and save.
11
Save Library As – save preset library under a new name on the PC. Click to select the location, enter name and save.
12
Send Library – transfer currently loaded preset library to the power amplifier's memory.
13
Receive Library – load preset library from power amplifier's memory.
14
Show frequency response – show or hide frequency response (36).
15
Mode – log in with password (= admin) to create individual custom speaker presets.
16
Show or hide menu bar.
17
Open software Information window.
18
Clear, search and add all devices connected – remove devices, search for and add connected devices.
Search and add new devices connected – search for and add connected devices.
Reconnect all lost devices – restore broken connections (e.g. after a power failure).
19
Add new Zone – create a new zone.
Delete selected Zone – delete selected zone.
Rename selected Zone – rename selected zone.
20
Expand all tree – show structure tree.
Collapse all tree – hide structure tree.
21
LIBRARY – click button to access preset libraries "Amp Preset", "Custom Speaker Preset" and "LD Speaker Preset".
22
AMP PRESET EDIT – click button to open the amp preset overview window.
23
GAIN – click button to edit gain, polarity and mute in amp preset.
24
DELAY – click button to edit signal delay in amp preset.
25
PEQ – click button to edit the 12-band equalizer preset in amp preset.
26
Com. queue – status display for synchronization of power amplifier with software.
27
Devices – list of the connected and added devices.
28
Information about the selected device (model, serial number, name, IP address and firmware version).
