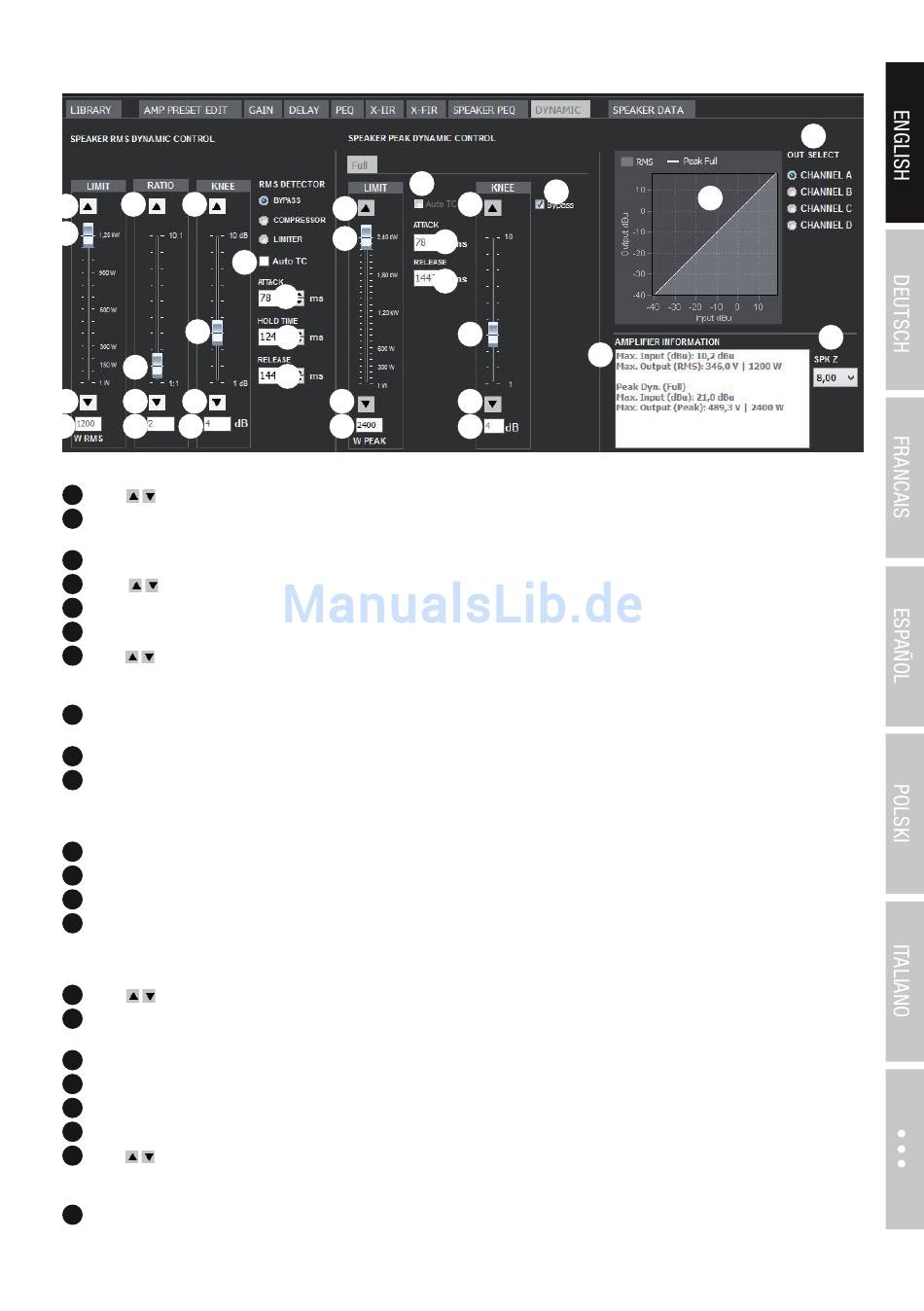

SPEAKER DYNAMIC CONTROL

91 94
88
89
95
92
88 91 94
90 93 96
SPEAKER RMS DYNAMIC CONTROL
88
LIMIT – click the arrow icons to adjust the limiter in accordance with the RMS capacity of the speaker.
89
Virtual Fader – click and hold the virtual FADER button and drag it up or down to adjust the limiter in accordance with the RMS
capacity of the speaker.
90
Display/input field – direct input via keyboard and display of the limiting in watts RMS.
91
RATIO – for use as a compressor, click the arrow icons to adjust the control ratio.
92
Virtual Fader – click and hold the virtual fader button and drag it up or down to adjust the control ratio when using as a compressor.
93
Display/input field – direct input via keyboard and display of control ratio.
94
KNEE – click the arrow icons to adjust the characteristic curve at the level of the threshold value (in this case W RMS)
(low value = hard transition between unprocessed and processed signal, high value = soft transition between the
unprocessed and processed signal).
95
Virtual Fader – click and hold the virtual fader button and drag it up or down to adjust the characteristic curve at the level of the
threshold value (in this case W RMS).
96
Display/input field – direct input via keyboard and display of value.
97
RMS DETECTOR – BYPASS – RMS DYNAMIC CONTROL deactivated (click button).
COMPRESSOR – click to use as a compressor.
LIMITER – click to use as a limiter.
98
Auto TC – check the box for automatic adjustment of attack, hold time and release.
99
ATTACK – use arrow symbols for manual setting of response time and direct input via keyboard (remove check for Auto TC).
100
HOLD TIME – use the arrow symbols for manual setting of hold time and direct input via keyboard (remove check for Auto TC).
101
RELEASE – use the arrow symbols for manual setting of release time and direct input via keyboard (remove check for Auto TC).
SPEAKER PEAK DYNAMIC CONTROL
102
LIMIT – click the arrow icons to adjust the limiter in accordance with the peak capacity of the speaker.
103
Virtual Fader – click and hold the virtual fader button and drag it up or down to adjust the limiter in accordance with the peak capacity
of the speaker.
104
Display/input field – direct input via keyboard and display of the limiting in watts PEAK.
105
Auto TC – check the box for automatic adjustment of attack and release time.
106
ATTACK – direct input via keyboard and for setting the response time using the arrow symbols (remove check for Auto TC).
107
RELEASE – use the arrow symbols for manual setting of release time and direct input via keyboard (remove check for Auto TC).
108
KNEE – click the arrow icons to adjust the characteristic curve at the level of the threshold value (in this case W PEAK)
(low value = hard transition between unprocessed and processed signal, high value = soft transition between the
unprocessed and processed signal).
109
Virtual Fader – click and hold the virtual fader button and drag it up or down to adjust the characteristic curve at the level of the
threshold value (in this case W PEAK).
