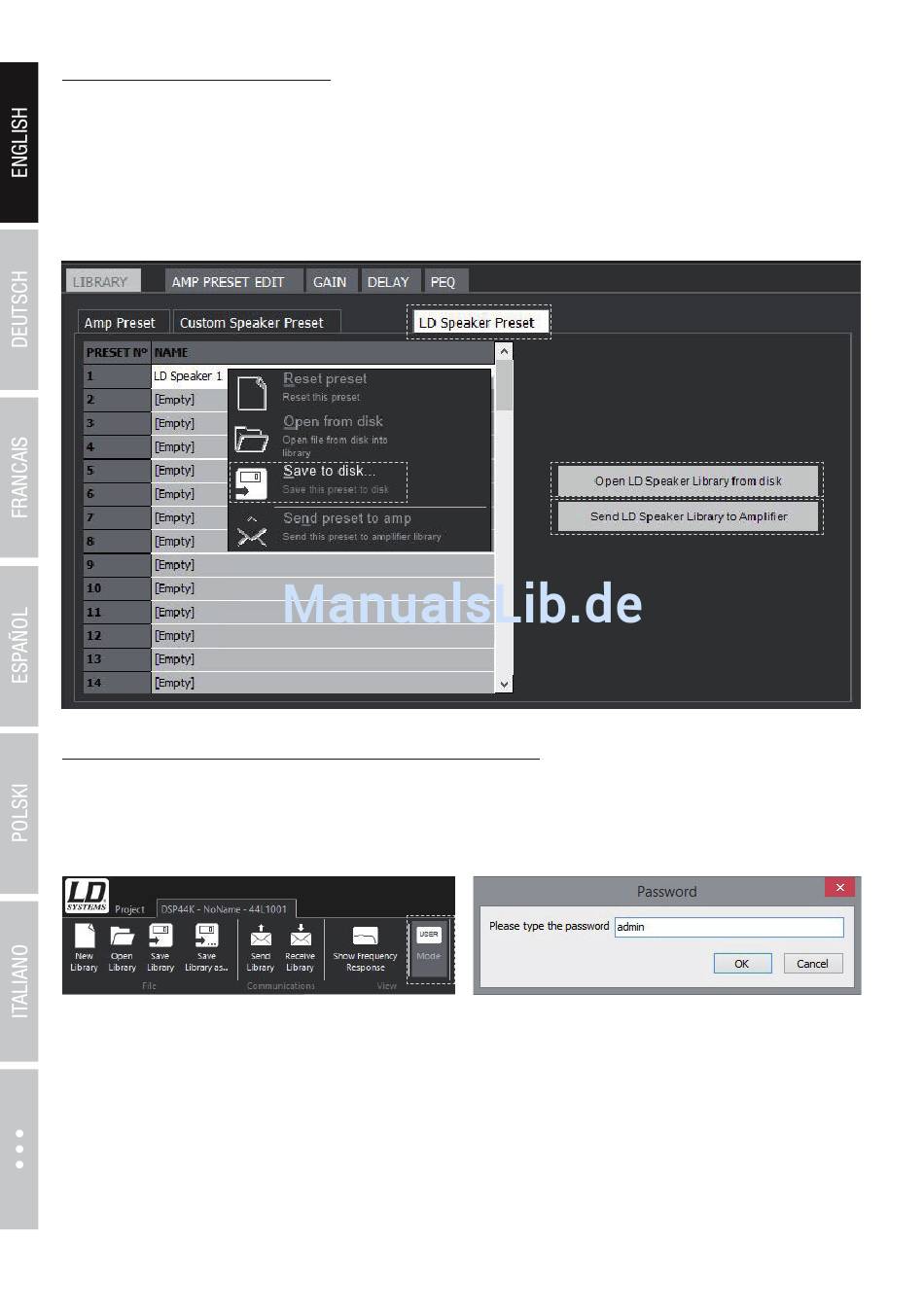

LD SPEAKER PRESET LIBRARY

Download the desired LD Systems speaker library from the product page (LDDSP44K / LDDSP45K) at WWW.LD-SYSTEMS.COM, save it in
the memory of the PC in a folder of your choice and unzip it if necessary. Start the OCS software and establish a connection to the power
amplifier (USB / Ethernet). Click on "LIBRARY" in the overview window, then on "LD Speaker Preset" and open the previously downloaded
LD Systems speaker library by clicking on the button "Open LD Speaker Library from disk". Select the file on the PC and click on "Open".
The loudspeaker presets will now be displayed with names in the list of speaker presets. Transfer the LD speaker library to the amplifier by
clicking on the button "Send LD Speaker Library to amplifier". The presets are now available for use and can be loaded via the selection
window of channels CH A to CH D (see point 34). Right-click the desired preset to save it individually as a file on the PC (save to disk).

CREATING AND MANAGING CUSTOM SPEAKER PRESET

The OCS software enables you to create and manage individual speaker presets (custom speaker presets) for the LD systems DSP power
amplifiers DSP44K and DSP45K. Log in to the OCS software as an administrator by clicking the Mode button in the menu bar. Enter the
password "admin" and confirm with OK. The EDIT button will now be displayed in the SPEAKER PRESET (No. 34) editing field. Click EDITto
open the editing field for the custom speaker presets and to view the editing options. First of all, configure the OUTPUT ROUTING (single,
2-way, bridge) when creating a speaker preset.
Single – each channel is individually adjustable via CHANNEL EDIT and SPEAKER PRESET EDIT and can be controlled by any signal source (SOURCE).
