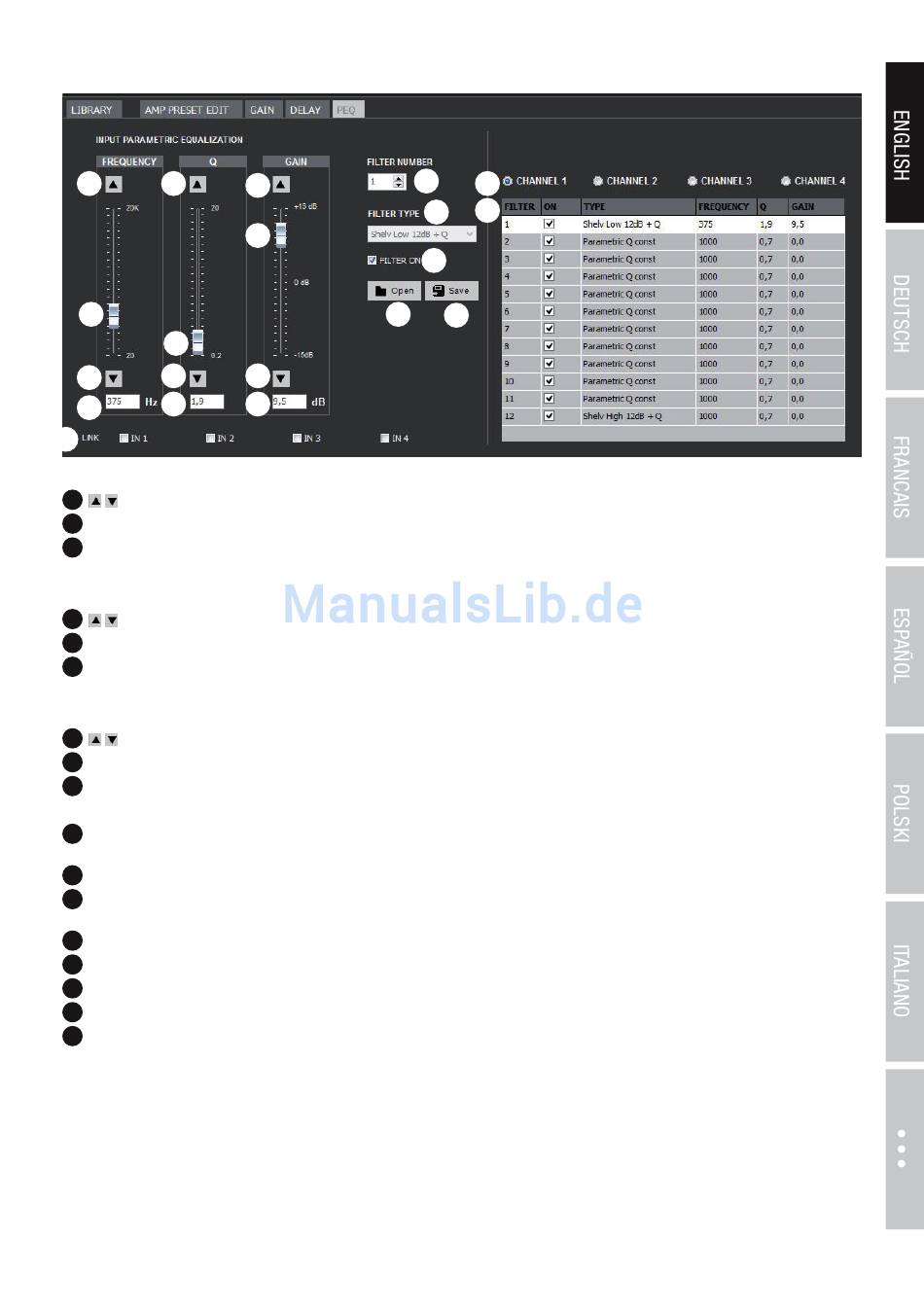

PARAMETRIC INPUT EQUALIZER

148 151
149
152
151
148
153
150
157
FREQUENCY
148
– click the arrow icons to increase or decrease the frequency of the selected EQ bands in 1 Hz increments.
149
Virtual Fader – click and hold the virtual fader knob and drag it upwards to increase the frequency and downwards to lower it.
150
Display/input field – direct input via keyboard and display of the frequency in Hertz (Hz).
Q-FACTOR
151
– click the arrow icons to configure the Q-factor of the selected EQ bands from 0.2 to 20.
152
Virtual Fader – click and hold the virtual fader button and drag it up or down to select the desired Q-factor.
153
Display/input field – direct input via keyboard and display of the Q-factor.
GAIN
154
– click the arrow icons to increase or decrease the gain of the selected EQ bands in 0.1 dB increments.
155
Virtual Fader – click and hold the virtual fader button and drag it upwards or downwards to adjust the gain as required.
156
Display/input field – direct input via keyboard and display of gain in dB.
157
LINK – before editing, you can link the channels whose settings are to be identical (check). The settings must be configured only in one
channel and will be automatically transferred to the linked channels.
158
FILTER NUMBER – use the arrow symbols to select and display the filter number of filters 1 to 12 (selected band is highlighted in white).
159
FILTER TYPE – the type of filter applied to channels 1 to 4 is not selectable and the writing is therefore greyed out
(filter 1 = low shelf, filters 2 – 11 = parametric, filter 12 = high shelf).
160
FILTER ON – check or uncheck the box to activate or deactivate the selected filter (bypass).
161
Save – using this button, the filter settings of all 12 EQ bands can be saved in a file on the PC as an EQ-preset.
162
Open – load a previously saved EQ preset from the PC into the selected channel 1 to 4.
163
CHANNEL 1 to 4 – select the desired channel to edit by clicking on the channel button.
164
EQ 1 to 12 – overview window for EQs 1 to 12. Use the computer mouse to activate or deactivate the desired EQ bands
(checkmark next to ON = EQ band active, checkmark removed = EQ band deactivated).
