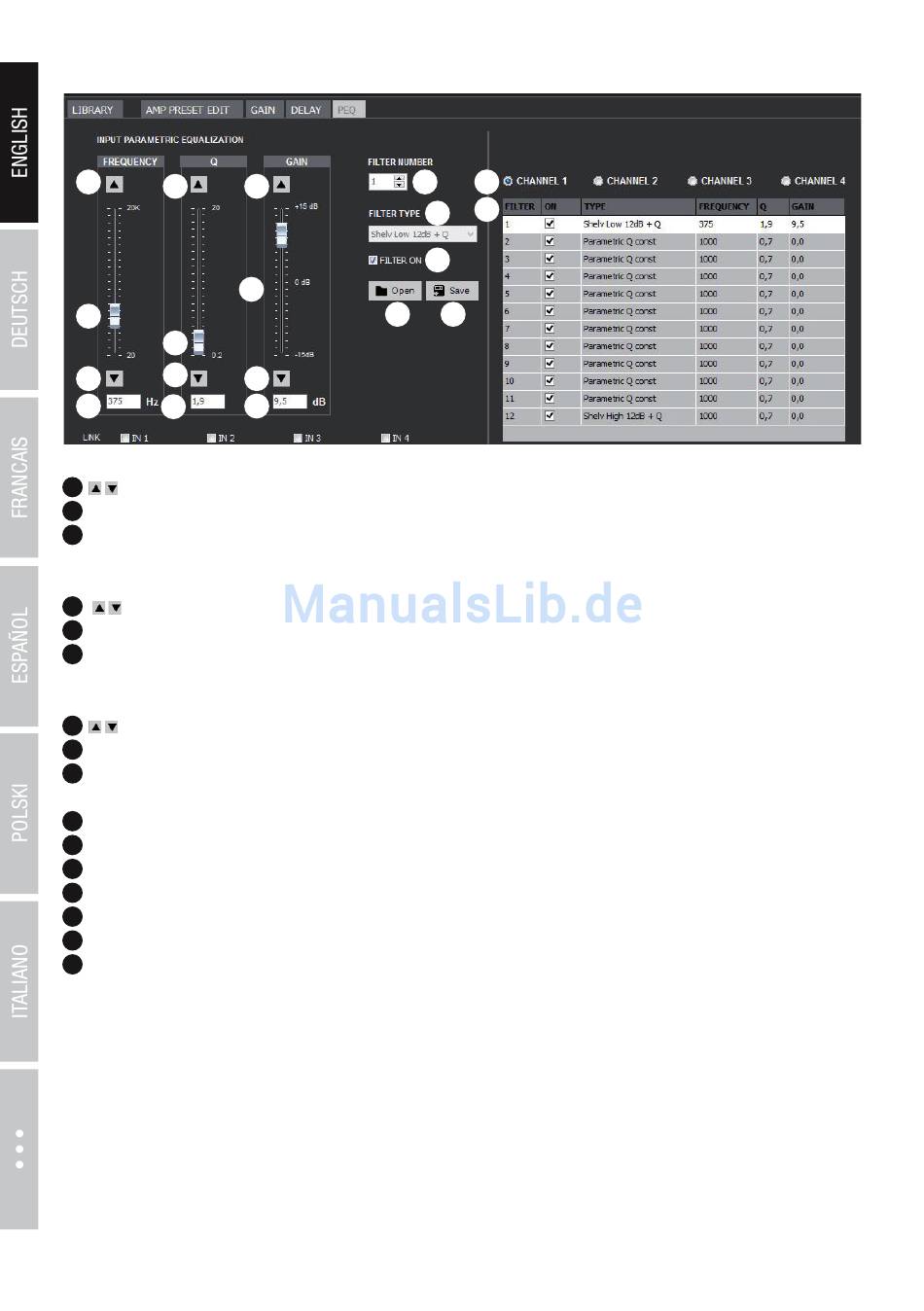

PARAMETRIC SPEAKER EQUALIZER

72
75
73
76
75
72
74 77
FREQUENCY
72
– click the arrow icons to increase or decrease the frequency of the selected EQ bands in 1 Hz increments.
73
Virtual Fader – click and hold the virtual fader knob and drag it upwards to increase the frequency and downwards to lower it.
74
Display/input field – direct input via keyboard and display of the frequency in Hertz (Hz).
Q-FACTOR
75
– click the arrow icons to configure the Q-factor of the selected EQ bands from 0.2 to 20.
76
Virtual Fader – click and hold the virtual fader button and drag it up or down to select the desired Q-factor.
77
Display/input field – direct input via keyboard and display of the Q-factor.
GAIN
78
– click the arrow icons to increase or decrease the gain of the selected EQ bands in 0.1 dB increments.
79
Virtual Fader – click and hold the virtual fader button and drag it up or down to increase or decrease gain as desired.
80
Display/input field – direct input via keyboard and display of gain in dB.
81
FILTER NUMBER – use the arrow symbols to select and display the filter number of filters 1 to 16 (selected band is highlighted in white).
82
FILTER TYPE drop-down menu to select filter type in EQ bands 1 to 16.
83
FILTER ON – check or uncheck the box to activate or deactivate the selected filter (bypass).
84
Save – using this button, the filter settings of all 16 EQ bands can be saved in a file on the PC as an EQ-preset.
85
Open – load a previously saved EQ preset from the PC into the selected channel A to D.
86
CHANNEL A to D – select the desired channel for editing by clicking on the channel button.
87
EQ 1 to 16 – overview window for EQs 1 to 16. Use the computer mouse to activate or deactivate the desired EQ bands
(checkmark next to ON = EQ band active, checkmark removed = EQ band deactivated).
