Frequency Response (Logged In As Administrator); Speaker Data - LD Systems LDDSP44K Bedienungsanleitung

110
Display/input field – direct input via keyboard and display of value.
111
Bypass – check to deactivate PEAK DYNAMIC CONTROL.
112
Graphical representation of the two dynamic control units (grey area = RMS DYNAMIC CONTROL, white line = PEAK DYNAMIC CONTROL).
113
OUT SELECT – select the desired channel for editing by clicking on the channel button.
114
AMPLIFIER INFORMATION – input and output specification of the amplifier.
115
SPK Z – drop-down menu for selection of speaker impedance.

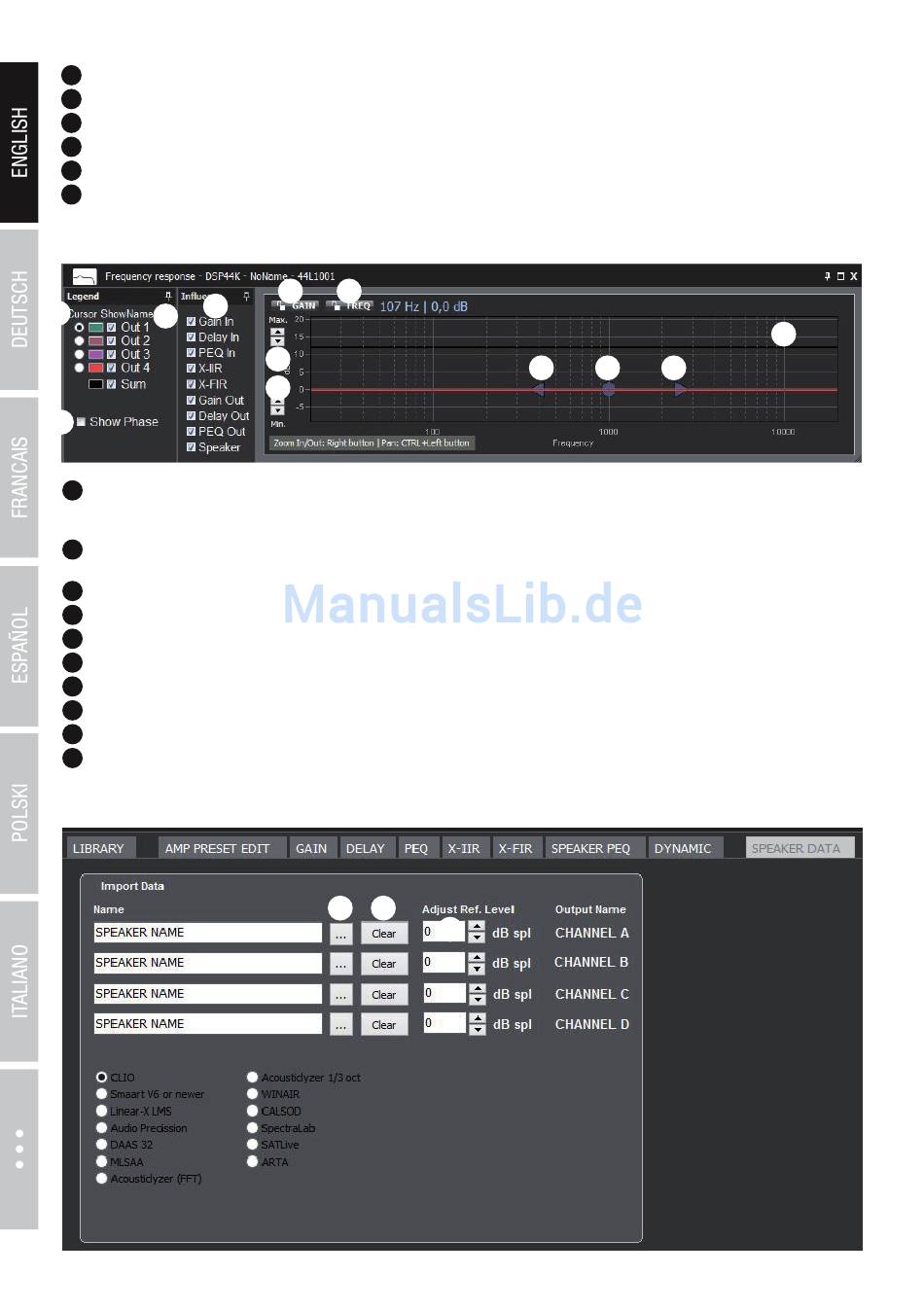

FREQUENCY RESPONSE (LOGGED IN AS AN ADMINISTRATOR)
125
122
123
124
116
FREQUENCY RESPONSE – graphical representation of the frequency response. (Horizontal zoom in: right-click and drag right to mark the
117
Grab point GAIN and FREQUENCY – click and hold the grab point to adjust the frequency and gain of the selected frequency band by
118
Grab points Q-FACTOR – click and hold a grab point to adjust the Q-factor of the selected frequency band by dragging horizontally as required.
119
Max./Min. – use the arrow symbols to zoom vertically.
120
GAIN lock – click on the button to lock (red button) or unlock (grey button) editing of gain in the graphics window.
121
FREQ lock – click on the button to lock (red button) or unlock (grey button) editing of frequency in the graphics window.
122
Cursor – select which channel the cursor follows in the graphics window (frequency and gain display).
123
Show Name – select which channel appears in the graphics window. Click the colour button to configure the line colour individually.
124
Show Phase – check to display phase in the graphics window.
125
Influence – check the input fields of the editing options which should be implied in the frequency curve.

SPEAKER DATA

16
120 121
119
119
desired area. Horizontal zoom out: right-click and drag left to mark the desired area. Scroll vertically by holding Ctrl
and clicking with left mouse button.
dragging along the vertical and horizontal axes.
126 127
118 117
128
116
118
