Options

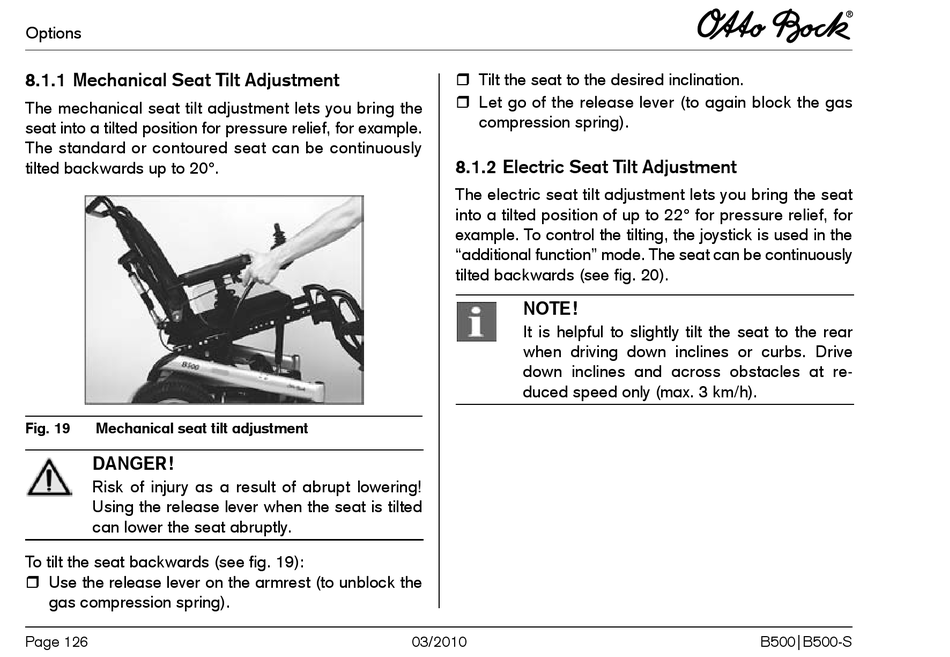

8.1.1 Mechanical Seat Tilt Adjustment
The mechanical seat tilt adjustment lets you bring the
seat into a tilted position for pressure relief, for example.
The standard or contoured seat can be continuously
tilted backwards up to 20°.
fig. 19 Mechanical seat tilt adjustment
DAnGEr !
Risk of injury as a result of abrupt lowering!
Using the release lever when the seat is tilted
can lower the seat abruptly.
To tilt the seat backwards (see fig. 19):
r Use the release lever on the armrest (to unblock the
gas compression spring).
Page 126
r Tilt the seat to the desired inclination.
r Let go of the release lever (to again block the gas
compression spring).
8.1.2 Electric Seat Tilt Adjustment
The electric seat tilt adjustment lets you bring the seat
into a tilted position of up to 22° for pressure relief, for
example. To control the tilting, the joystick is used in the
"additional function" mode. The seat can be continuously
tilted backwards (see fig. 20).
nOTE !
It is helpful to slightly tilt the seat to the rear
when driving down inclines or curbs. Drive
down inclines and across obstacles at re-
duced speed only (max. 3 km/h).
03/2010 B500 | B500-S
