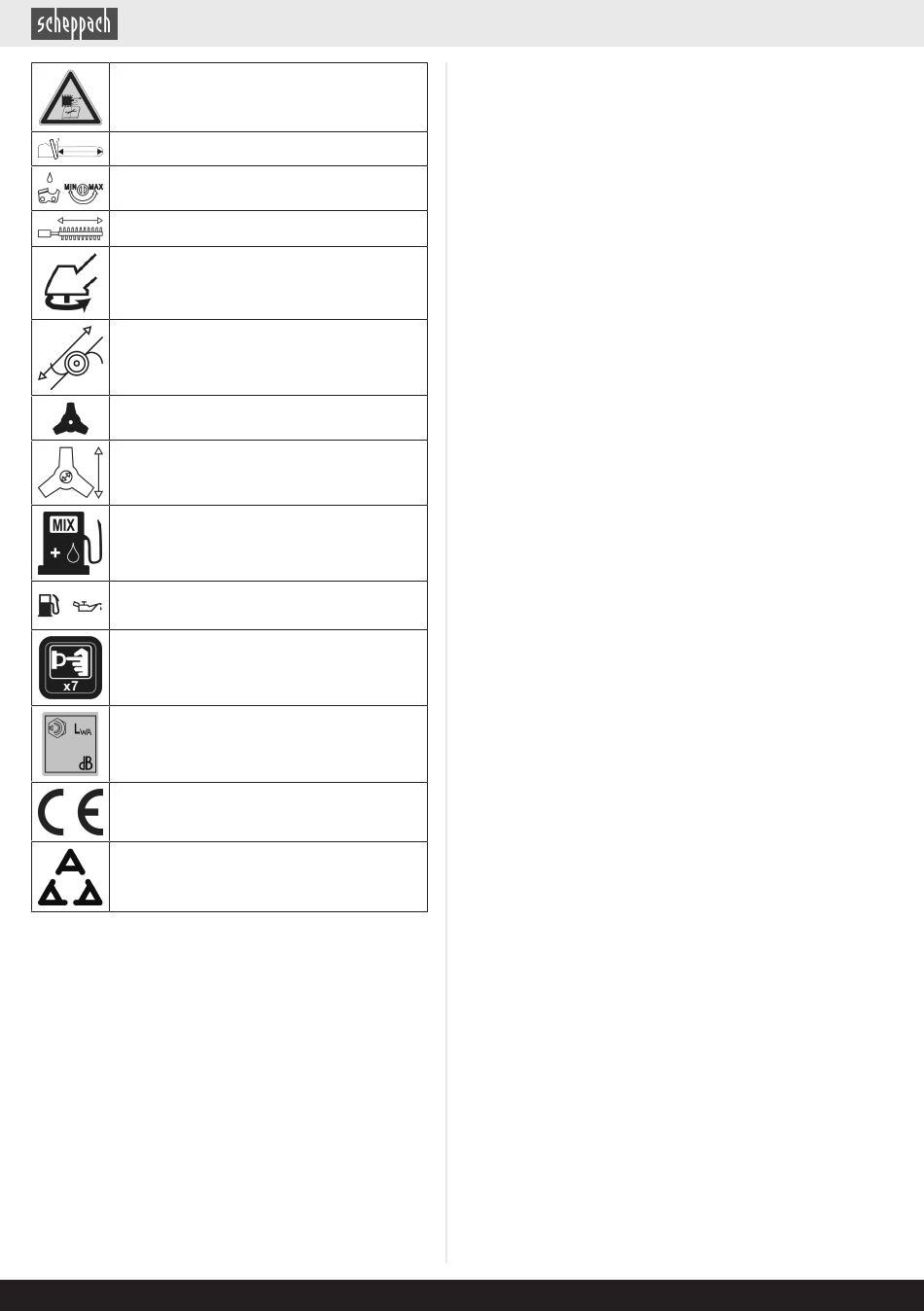

Remove the spark plug connector prior to all
maintenance work.
Cutting length
Chain lubrication setting.
Cutter bar length
Direction of rotation of grass trimmer.
Thread coil diameter.
Cutting blade.
Cutting blade diameter.
Fuel/oil mixture 40:1
Mixing ratio of fuel to 2-stroke engine oil
+
40:1
Press the "Primer" fuel pump 7x.
Guaranteed sound power level of the prod-
117
uct.
The product complies with the applicable
European directives.
The product complies with the applicable
Serbian directives.
1 Introduction
Manufacturer:
Scheppach GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Note:
In accordance with the applicable product liability laws,
the manufacturer of this product assumes no liability for
damage to the product or caused by the product arising
from:
• Improper handling
• Failure to comply with the operating manual
• Repairs carried out by third parties, unauthorised spe-
cialists
• Installing and replacing non-original spare parts
38 | GB
• Improper use
Note:
The operating manual is part of the product and contain
important information for safe, proper and economical op-
eration. Please also observe the applicable national regu-
lations. Read all operating and safety instructions careful-
ly before use and only use the product as described.
Keep the manual and pass it on when you give the prod-
uct to someone else.
2 Product description (Fig. 1-34)
1. Front handle
1a. Hoop guard
1b. Rubber ring
1c. M5 screws
2. Lifting eye
3. On/off switch
4. Switch lock
5. Rear handle
6. Spark plug connector
6a. Spark plug
7. Air filter cover
7a. Screw
7b. Air filter
8. Pull starter
9. Fuel filler cap
10. Fuel tank
11. Throttle
12. Tubular shaft
13. Star grip (tubular shaft)
Brush cutter/grass trimmer
14. Front tubular shaft
14a. Locking pin
14b. Protective cap
14c. Flange
14d. Receptacle spindle
15. Protective cover
15a. M6 screws
15b. Thread cutter
15c. Extension piece
16. Cutting blade
16a. Transport protection
16b. Tension disc
16c. Cover
16d. M10 nut
17. Coil capsule
Pole-mounted pruner
18. Front tubular shaft
18a. Locking pin
18b. Protective cap
19. Chain cover
19a. Fixing nut
20. Chainsaw guide bar (guide rail)
21. Saw chain
22. Guide bar and chain guard
23. Oil tank
23a. Oil level indicator
24. Tubular shaft extension*
24a. Locking pin
24b. Protective cap
25. Star grip
Hedge trimmer
26. Front tubular shaft
26a. Locking pin
26b. Protective cap
27. Handle
