PCB Connector Slot
Latch A
Flexible PCB
(The bridge between
keyboard and the
mainboard.)
Keyboard
Note:
Your notebook
has been tested
with a wide range
of DIMM on the
market. However,
not all memory
modules are
compatible.
Check with your
notebook vendor
for a list of
compatible DIMM
for your notebook.
4-8
Original
Memory Socket
DIMM Module
Latch B

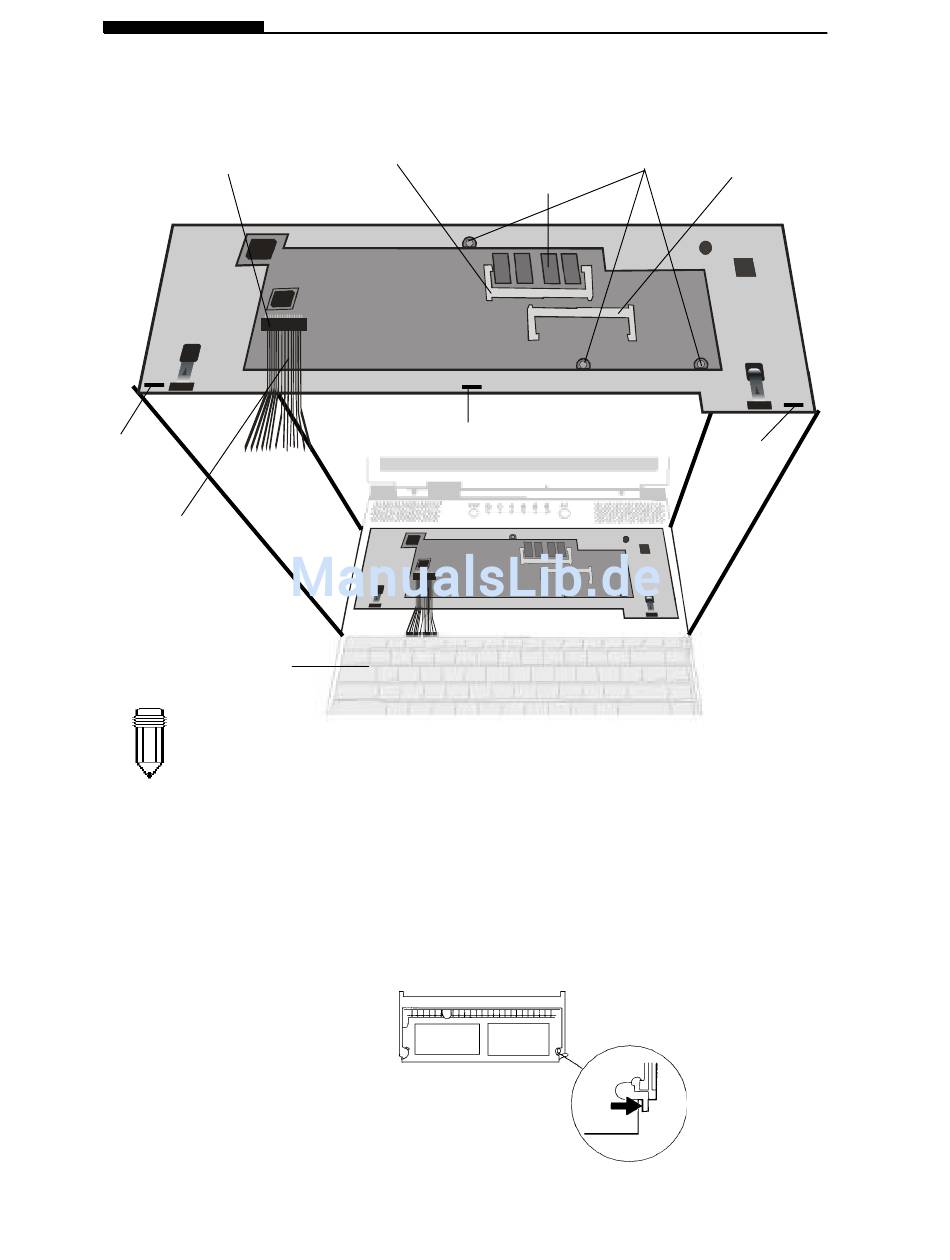

Illustration 4-4
7. The memory socket is now revealed as the shown
illustration 4-4.
8. Press out on the latches located on both edges of the
socket at the same time. The DIMM should pop up to an
angle of 30 degree.
Expansion
Fixing Screws
Memory Socket
Latch C
