EN

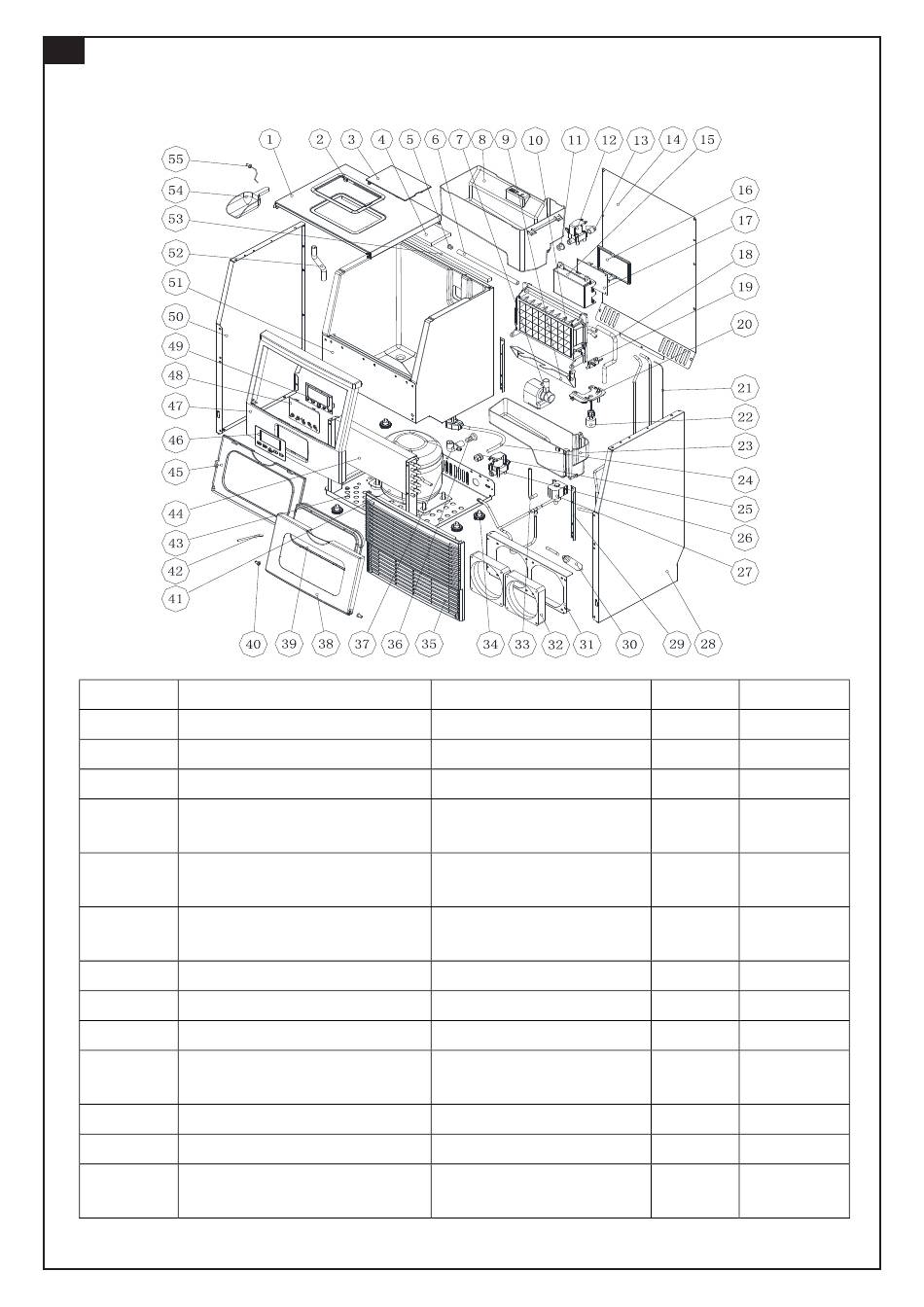

4) EXPLOSIVE DRAWINGS
No
Part Name
1
Top cover
2
Top Water filler flame
3
Top water filler cap
4
Insulation sponge for top
cover
5
Cap of the water dividing
pipe
6
Water dividing pipe, eight
holes
7
Water Circulation pump
8
Water charging tank
9
Ice full detecting plate
10
Evaporator & its frame
11
Sealing circle
12
Water outlet control valve
13
Water pipe of outlet control
valve
Material
Steel plate
ABS
Transparent ABS
PE
Silicone
ABS
Electrical parts
PP
ABS
Copper plated with
nickel, and ABS frame
Silicone
Electrical parts, DC12V
Silicone
8
Qty.
Note
1
With
1
1
1
324*70
1
1
1
4
1
1
1
1
1
