GENERAL INFORMATION

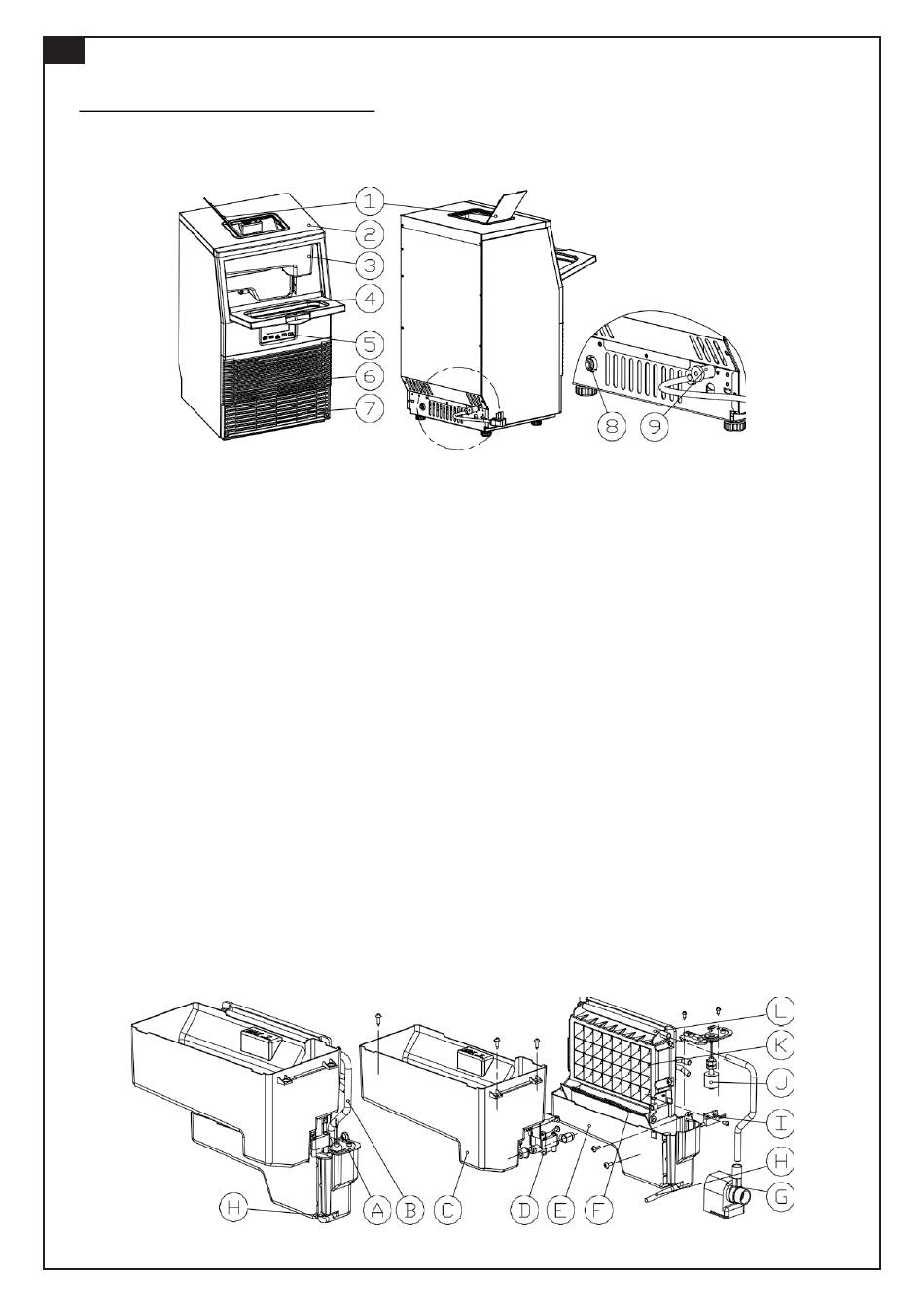

1) Main Unit Construction
1. Water filler cap on top
2. Top cover
3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water
charging tank, water control valve, water pump and some detecting parts
4. Door for ice taking
5. Operation panel
6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
7. Air inlet
8. Main Water supplying inlet: For connecting the main water supplying pipe
9. Water draining port: Normal plugged with the cap. When need to drain the water, unplug the
cap. And connect the white drain pipe.
Accessory:
About 2 meters long and white color water drain pipe
1/4 inches to 1/2 inches water quick connector of the water faucet, ice spoon
¢6.35mm diameter and white color water supplying hose
2) Ice-making and its water tank parts
