8 - CONTROL

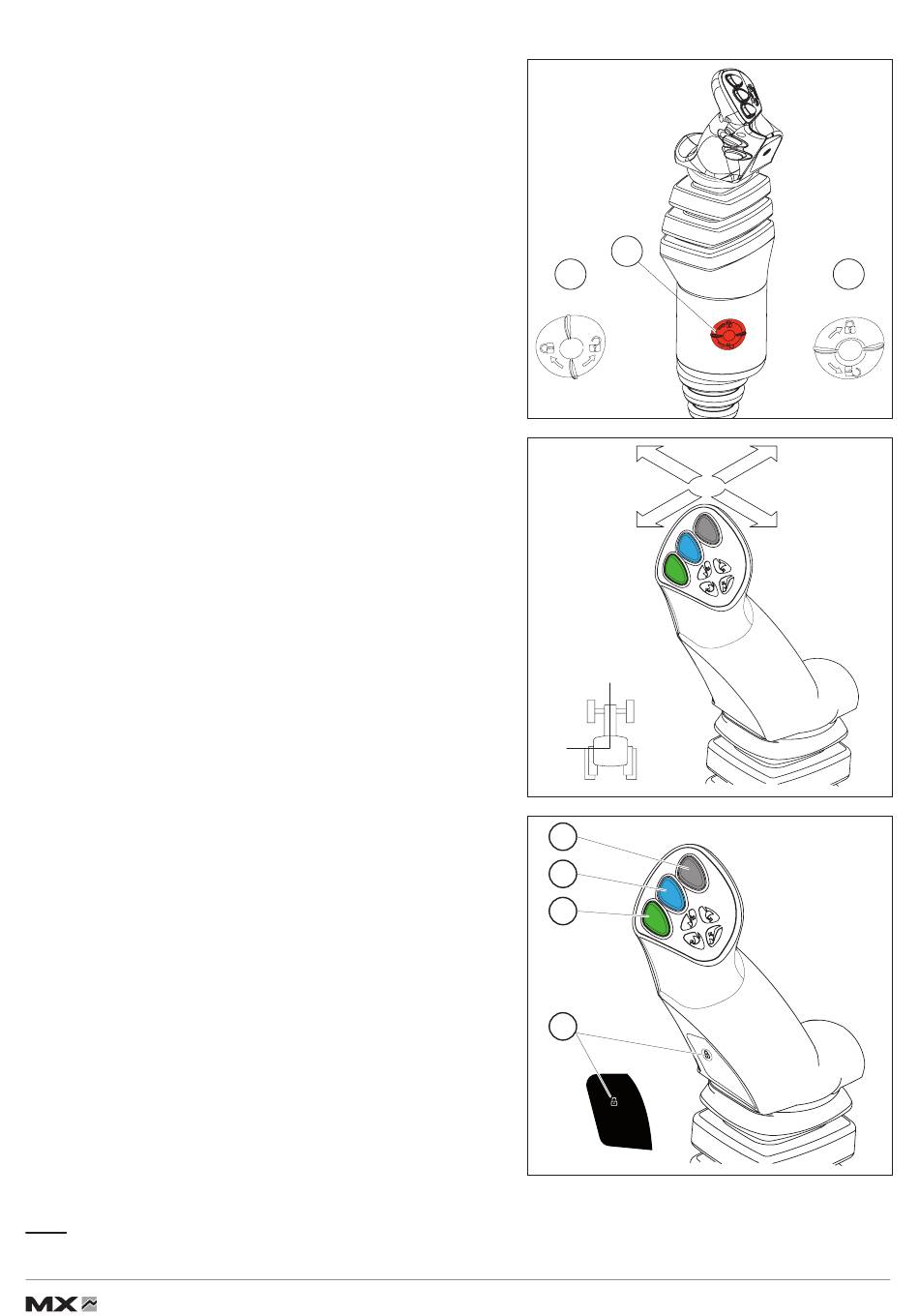

Security
Involuntary loader manoeuvre can be avoided. The FLEXPILOT
joystick can be locked.
Turn the isolating thumbwheel (1):
— (A): released position.
— (B): locked position.
Movements
1st function: along "Y" axis
— Forwards = loader lowered
(Double action of the hydraulic ram).
— Forwards after notch = floating position
(Single action of the hydraulic ram).
— Backwards = loader raised.
2nd function: along "X" axis
— To the left = implement crowding.
— To the right = implement dumping.
3rd function: along "X" axis
— Button (1) + crowding or dumping movement.
4th function: along "X" axis
— Button (2) + crowding or dumping movement.
FAST-LOCK
Automatic hitching / unhitching of the implement.
— Button (1) + (4) + crowding or dumping movement.
SPEED-LINK 2
Automatic hitching / unhitching of the implement with hydraulic and
electric functions.
— Button (1) + (4) + crowding or dumping movement.
ACS
Implement position reset.
— Button (3).
Note:
Button (4) operational only in the case of the FAST-LOCK or SPEED-LINK 2 option.
19, rue de Rennes
•
BP 83221 • F - 35690 ACIGNÉ
•
1
A
Y
Y
X
3
2
1
4
17
Sous réserve de modifications - Modification reserved - Änderungen vorbehalten
