Installation
NOTE!
Pay particular attention to built-in dimensions with (natural) stone countertops. When choosing
the silicone sealant, observe the countertop material and consult the countertop manufacturer.
Use of inappropriate silicone sealants can result in permanent discolouration of some parts.
Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cutout in
the countertop, the slot is adjustable (min. 2 mm).
WARNING!
The service department shall only be responsible for repairing and servicing the cooking hob.
Consult your specialized kitchen equipment dealer regarding re-installing the flush-mount cooking
hob.

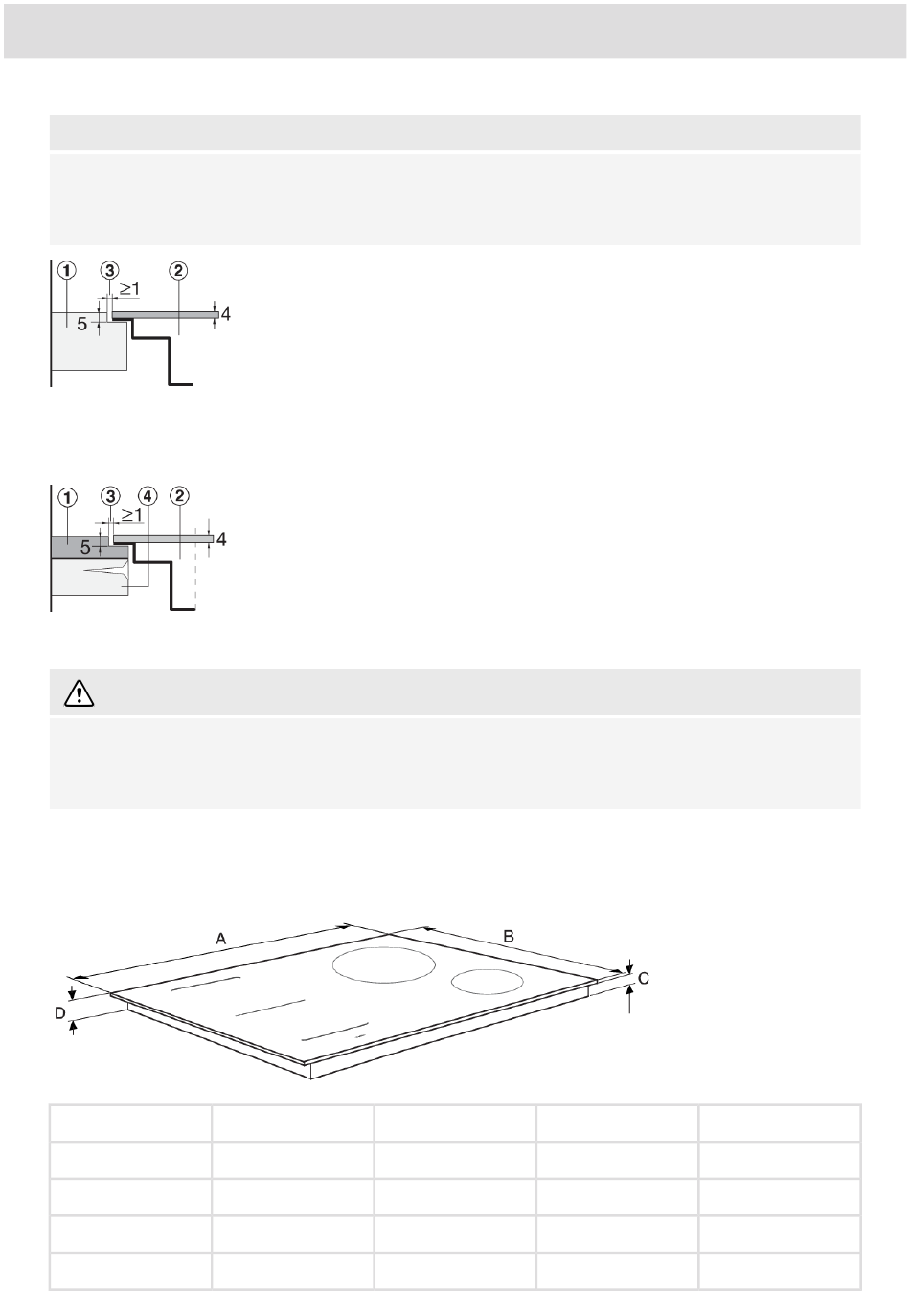

Built-in

Appliance dimensions
HI86xxx
HI87xxx
HI88xxx
HI89xxx
44
Stone countertop
1. Countertop
2. Appliance
3. Slot
Ceramic, wooden, or glass countertop
1. Countertop
2. Appliance
3. Slot
4. Wooden frame, thickness 16 mm
A (mm) B (mm)
600 520
700 520
800 520
900 520
C (mm) D (mm)
46 50
46 50
46 50
46 50
