Assembly steps

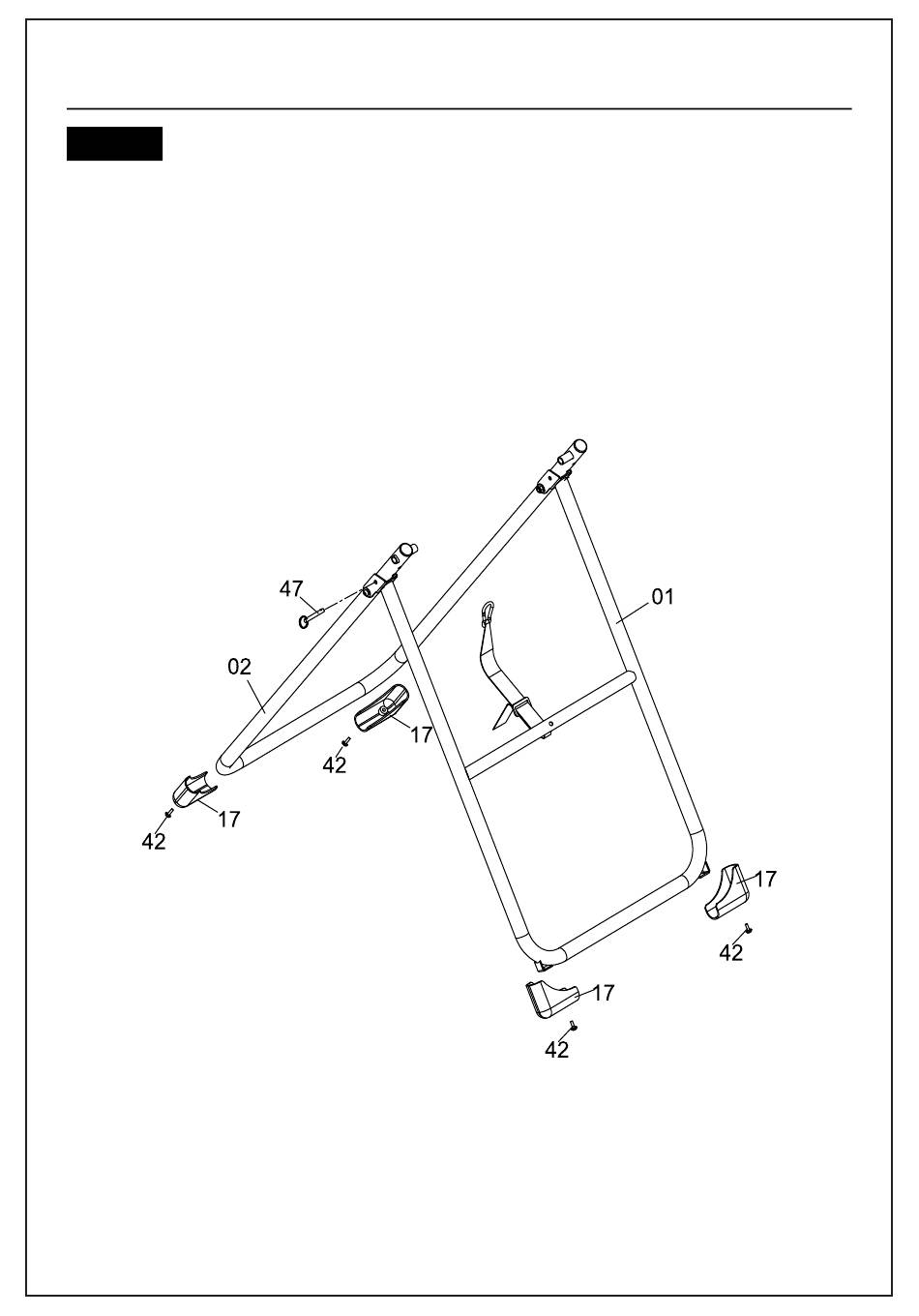

Step 1
Open the pre-installed front and rear brackets, and insert the pin (47) into the
corresponding holes of the front bracket (01) and the rear bracket (02) to secure the
front and rear brackets.
Remove the two M6x15mm hex socket screws (42) that were pre-installed on the
metal plate at the bottom end of the front bracket (01) and set them aside.
Install the two curved foot covers (17) onto the metal plate at the bottom end of the
front bracket (01), and fasten them with the two hex socket screws (42) that were
removed earlier.
