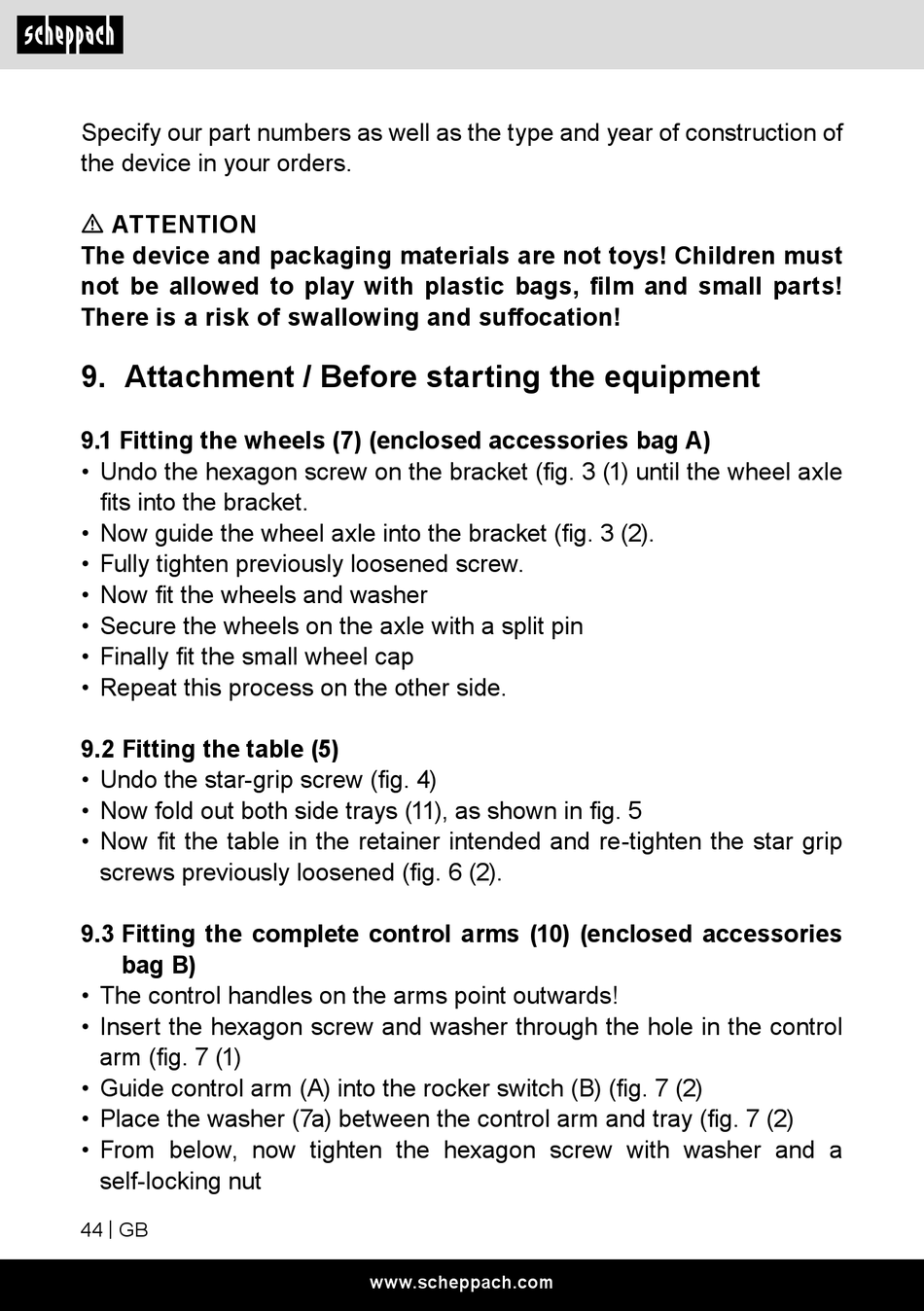

Specify our part numbers as well as the type and year of construction of
the device in your orders.
m ATTENTION
The device and packaging materials are not toys! Children must
not be allowed to play with plastic bags, film and small parts!
There is a risk of swallowing and suffocation!
9. Attachment / Before starting the equipment
9.1 Fitting the wheels (7) (enclosed accessories bag A)
• Undo the hexagon screw on the bracket (fig. 3 (1) until the wheel axle
fits into the bracket.
• Now guide the wheel axle into the bracket (fig. 3 (2).
• Fully tighten previously loosened screw.
• Now fit the wheels and washer
• Secure the wheels on the axle with a split pin
• Finally fit the small wheel cap
• Repeat this process on the other side.
9.2 Fitting the table (5)
• Undo the star-grip screw (fig. 4)
• Now fold out both side trays (11), as shown in fig. 5
• Now fit the table in the retainer intended and re-tighten the star grip
screws previously loosened (fig. 6 (2).
9.3 Fitting the complete control arms (10) (enclosed accessories
bag B)
• The control handles on the arms point outwards!
• Insert the hexagon screw and washer through the hole in the control
arm (fig. 7 (1)
• Guide control arm (A) into the rocker switch (B) (fig. 7 (2)
• Place the washer (7a) between the control arm and tray (fig. 7 (2)
• From below, now tighten the hexagon screw with washer and a
self-locking nut
