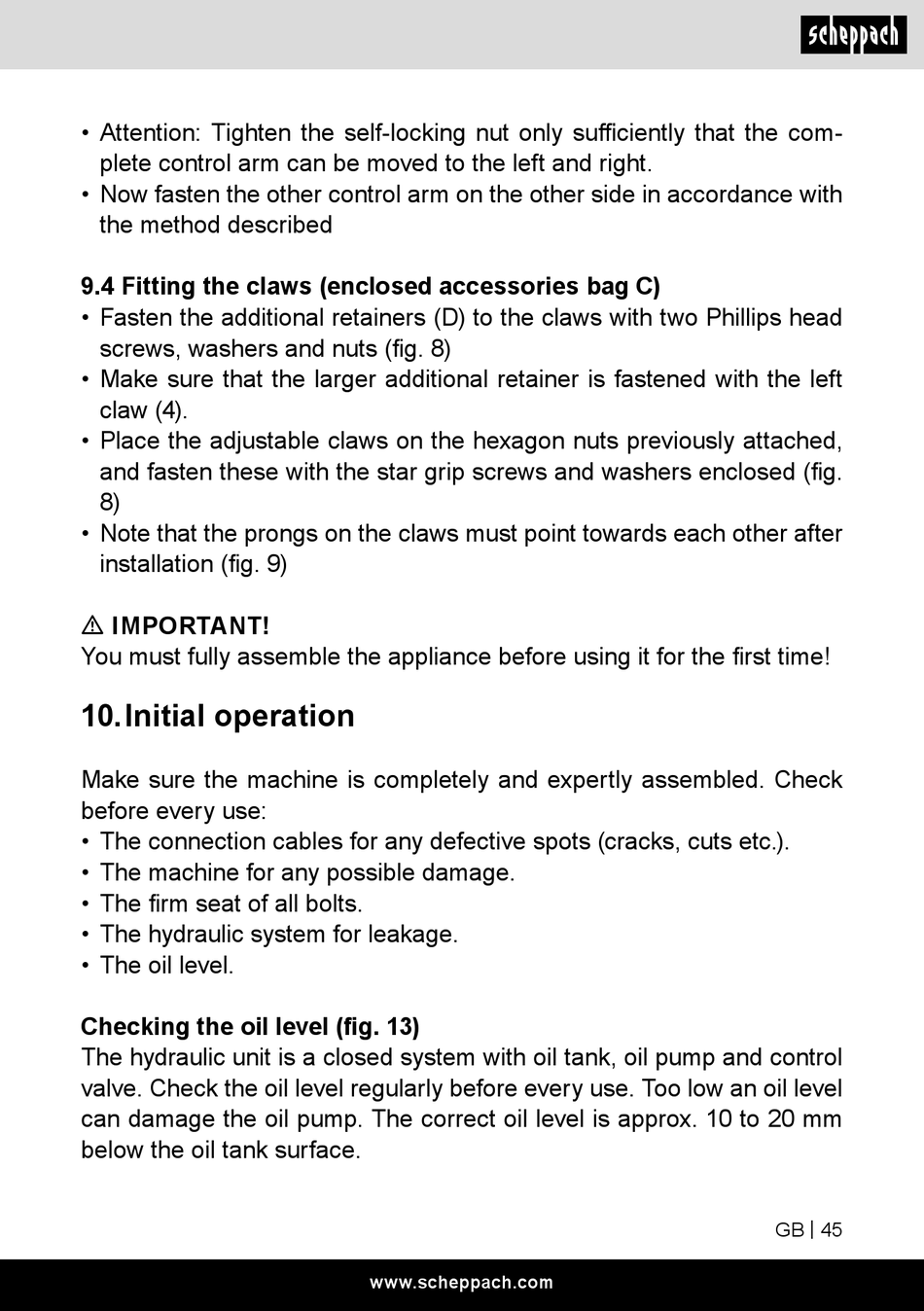

• Attention: Tighten the self-locking nut only sufficiently that the com-
plete control arm can be moved to the left and right.
• Now fasten the other control arm on the other side in accordance with
the method described
9.4 Fitting the claws (enclosed accessories bag C)
• Fasten the additional retainers (D) to the claws with two Phillips head
screws, washers and nuts (fig. 8)
• Make sure that the larger additional retainer is fastened with the left
claw (4).
• Place the adjustable claws on the hexagon nuts previously attached,
and fasten these with the star grip screws and washers enclosed (fig.
8)
• Note that the prongs on the claws must point towards each other after
installation (fig. 9)
m IMPORTANT!
You must fully assemble the appliance before using it for the first time!

10. Initial operation

Make sure the machine is completely and expertly assembled. Check
before every use:
• The connection cables for any defective spots (cracks, cuts etc.).
• The machine for any possible damage.
• The firm seat of all bolts.
• The hydraulic system for leakage.
• The oil level.
Checking the oil level (fig. 13)
The hydraulic unit is a closed system with oil tank, oil pump and control
valve. Check the oil level regularly before every use. Too low an oil level
can damage the oil pump. The correct oil level is approx. 10 to 20 mm
below the oil tank surface.
