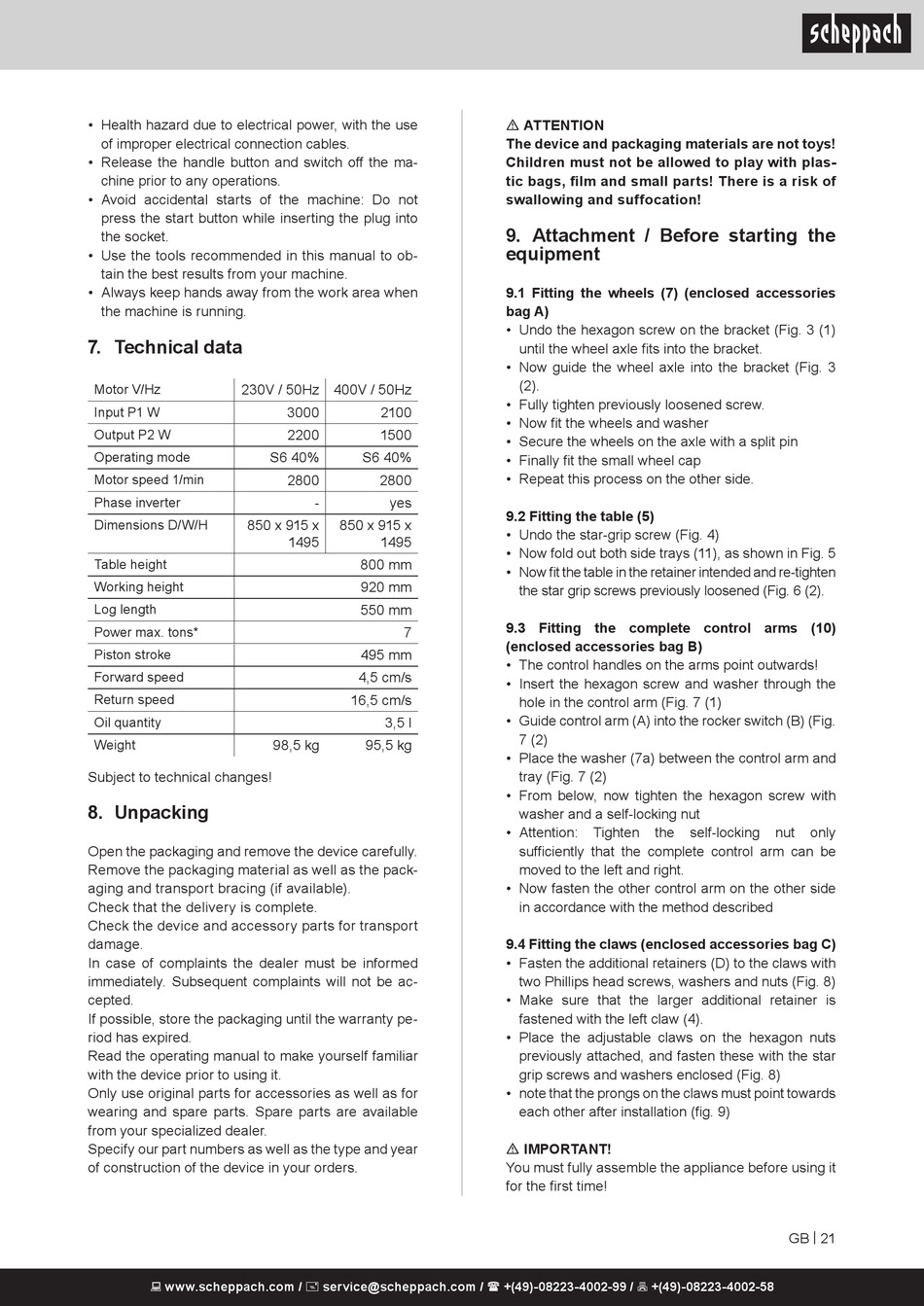

Scheppach 5905309902 Originalbetriebsanweisung Seite 21

• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Release the handle button and switch off the ma-
chine prior to any operations.
• Avoid accidental starts of the machine: Do not
press the start button while inserting the plug into
the socket.
• Use the tools recommended in this manual to ob-
tain the best results from your machine.
• Always keep hands away from the work area when
the machine is running.
7. Technical data
230V / 50Hz 400V / 50Hz
Motor V/Hz
Input P1 W
Output P2 W
Operating mode
Motor speed 1/min
Phase inverter
Dimensions D/W/H 850 x 915 x
Table height
Working height
Log length
Power max. tons*
Piston stroke
Forward speed
Return speed
Oil quantity
Weight
Subject to technical changes!
8. Unpacking
Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage.
In case of complaints the dealer must be informed
immediately. Subsequent complaints will not be ac-
cepted.
If possible, store the packaging until the warranty pe-
riod has expired.
Read the operating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
Specify our part numbers as well as the type and year
of construction of the device in your orders.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
3000 2100
2200 1500
S6 40% S6 40%
2800 2800
- yes
850 x 915 x
1495 1495
800 mm
920 mm
550 mm
7
495 mm
4,5 cm/s
16,5 cm/s
3,5 l
98,5 kg 95,5 kg
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
9. Attachment / Before starting the
equipment
9.1 Fitting the wheels (7) (enclosed accessories
bag A)
• Undo the hexagon screw on the bracket (Fig. 3 (1)
until the wheel axle fits into the bracket.
• Now guide the wheel axle into the bracket (Fig. 3
(2).
• Fully tighten previously loosened screw.
• Now fit the wheels and washer
• Secure the wheels on the axle with a split pin
• Finally fit the small wheel cap
• Repeat this process on the other side.
9.2 Fitting the table (5)
• Undo the star-grip screw (Fig. 4)
• Now fold out both side trays (11), as shown in Fig. 5
• Now fit the table in the retainer intended and re-tighten
the star grip screws previously loosened (Fig. 6 (2).
9.3 Fitting the complete control arms (10)
(enclosed accessories bag B)
• The control handles on the arms point outwards!
• Insert the hexagon screw and washer through the
hole in the control arm (Fig. 7 (1)
• Guide control arm (A) into the rocker switch (B) (Fig.
7 (2)
• Place the washer (7a) between the control arm and
tray (Fig. 7 (2)
• From below, now tighten the hexagon screw with
washer and a self-locking nut
• Attention: Tighten the
sufficiently that the complete control arm can be
moved to the left and right.
• Now fasten the other control arm on the other side
in accordance with the method described
9.4 Fitting the claws (enclosed accessories bag C)
• Fasten the additional retainers (D) to the claws with
two Phillips head screws, washers and nuts (Fig. 8)
• Make sure that the larger additional retainer is
fastened with the left claw (4).
• Place the adjustable claws on the hexagon nuts
previously attached, and fasten these with the star
grip screws and washers enclosed (Fig. 8)
• note that the prongs on the claws must point towards
each other after installation (fig. 9)
m IMPORTANT!
You must fully assemble the appliance before using it
for the first time!
self-locking nut only
