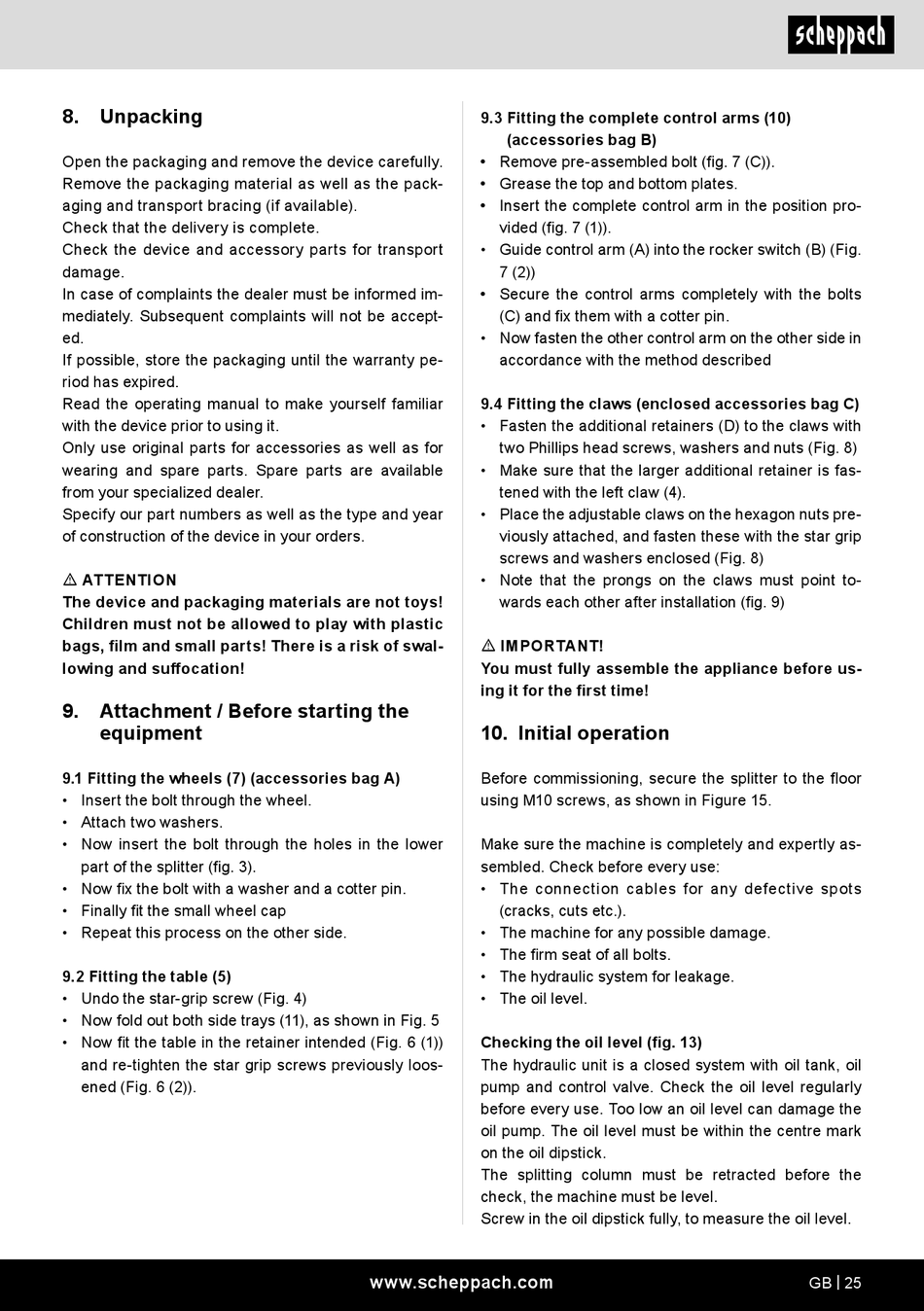

8. Unpacking
Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage.
In case of complaints the dealer must be informed im-
mediately. Subsequent complaints will not be accept-
ed.
If possible, store the packaging until the warranty pe-
riod has expired.
Read the operating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
Specify our part numbers as well as the type and year
of construction of the device in your orders.
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
9. Attachment / Before starting the
equipment
9.1 Fitting the wheels (7) (accessories bag A)
• Insert the bolt through the wheel.
• Attach two washers.
• Now insert the bolt through the holes in the lower
part of the splitter (fig. 3).
• Now fix the bolt with a washer and a cotter pin.
• Finally fit the small wheel cap
• Repeat this process on the other side.
9.2 Fitting the table (5)
• Undo the star-grip screw (Fig. 4)
• Now fold out both side trays (11), as shown in Fig. 5
• Now fit the table in the retainer intended (Fig. 6 (1))
and re-tighten the star grip screws previously loos-
ened (Fig. 6 (2)).
9.3 Fitting the complete control arms (10)
(accessories bag B)
• Remove pre-assembled bolt (fig. 7 (C)).
• Grease the top and bottom plates.
• Insert the complete control arm in the position pro-
vided (fig. 7 (1)).
• Guide control arm (A) into the rocker switch (B) (Fig.
7 (2))
• Secure the control arms completely with the bolts
(C) and fix them with a cotter pin.
• Now fasten the other control arm on the other side in
accordance with the method described
9.4 Fitting the claws (enclosed accessories bag C)
• Fasten the additional retainers (D) to the claws with
two Phillips head screws, washers and nuts (Fig. 8)
• Make sure that the larger additional retainer is fas-
tened with the left claw (4).
• Place the adjustable claws on the hexagon nuts pre-
viously attached, and fasten these with the star grip
screws and washers enclosed (Fig. 8)
• Note that the prongs on the claws must point to-
wards each other after installation (fig. 9)
m IMPORTANT!
You must fully assemble the appliance before us-
ing it for the first time!
10. Initial operation
Before commissioning, secure the splitter to the floor
using M10 screws, as shown in Figure 15.
Make sure the machine is completely and expertly as-
sembled. Check before every use:
• The connection cables for any defective spots
(cracks, cuts etc.).
• The machine for any possible damage.
• The firm seat of all bolts.
• The hydraulic system for leakage.
• The oil level.
Checking the oil level (fig. 13)
The hydraulic unit is a closed system with oil tank, oil
pump and control valve. Check the oil level regularly
before every use. Too low an oil level can damage the
oil pump. The oil level must be within the centre mark
on the oil dipstick.
The splitting column must be retracted before the
check, the machine must be level.
Screw in the oil dipstick fully, to measure the oil level.
