PATCH PANE L MOU NTI NG

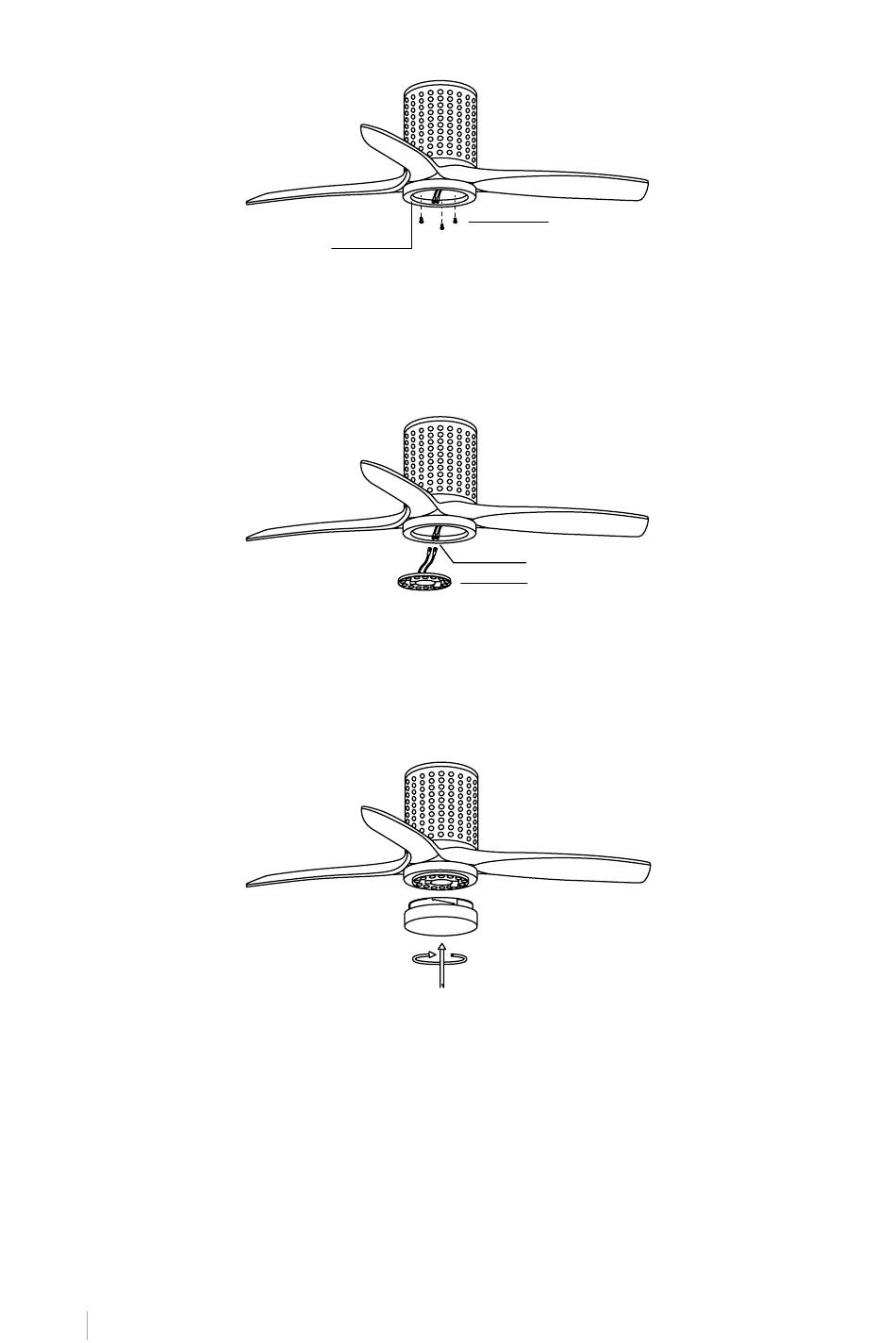

Connection panel
Attach the connection panel to the bottom of the fan by inserting the screw heads into the
designated holes.
Screw in the screws and then secure them properly.
M OU NT I N G TH E LE D BOARD
Connect the cables from the connection board to those from the LED panel.The LED panel is
magnetized so it attaches to the connection board by simply putting both pieces together.
Note: While installing or removing the LED board, be careful not to touch the insulating tabs.
Do not overtighten the screws or thread them too quickly as this could cause damage to the
insulating tabs.
Then attach the LED board decorative screen by screwing it onto the motor connection panel.
C H ECK IN STAL L AT IO N
• Check the correct operation of the ceiling fan, checking that no strange movement or mis-
alignment is observed in any part of the fan.
• If you notice any type of hum/vibration, you can proceed to adjust the blades with the bal-
ancing kit.
• This kit has self-adhesive counterweights and "u" shaped clips.
• Turn off the ceiling fan.
• You can put the clip in the center of any blade and check to see if the vibration decreases.
• Turn on the fan and check. If no change is seen, turn off the fan and add another clip on
another blade or use the adhesive weights.
