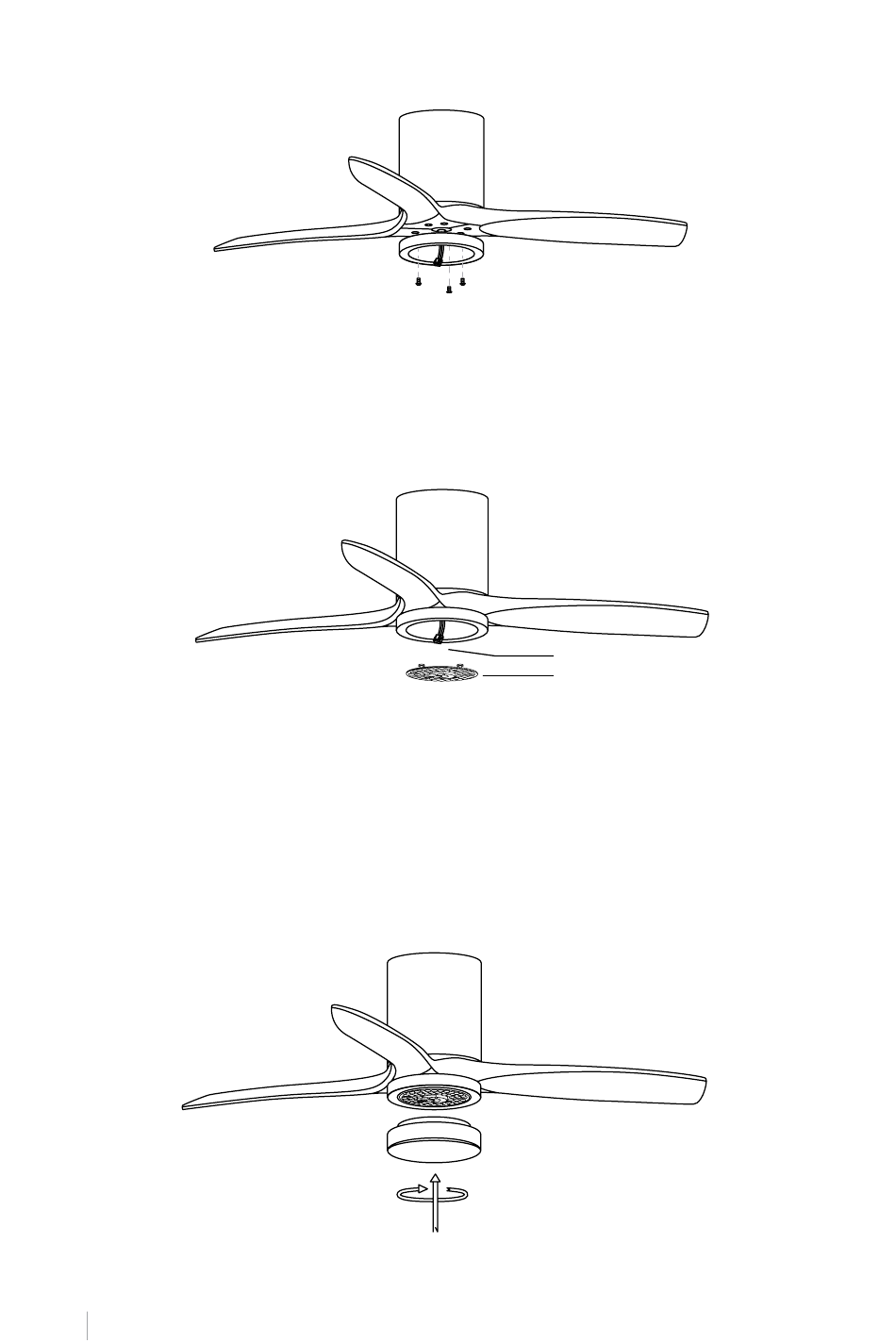

MOUNTING THE CONNECTION PANEL
Attach the connection panel to the bottom of the fan by inserting the screw heads into the
designated holes.
Screw in the screws and then secure them properly.
LE D PAN E L MOU NTI NG
Connect the cables from the connection board to those from the LED panel.The LED panel is
magnetized so it attaches to the connection board by simply putting both pieces together.
Note: While installing or removing the LED board, be careful not to touch the insulating tabs.
Do not overtighten the screws or thread them too quickly as this could cause damage to the
insulating tabs.
AS SE MB LY OF TH E D ECOR AT I VE SCRE E N
Once the LED panel has been correctly positioned, fit the decorative screen of the LED
panel by screwing it onto the motor connection panel.
E NGL I SH
12
Single pin plug
LED panel
