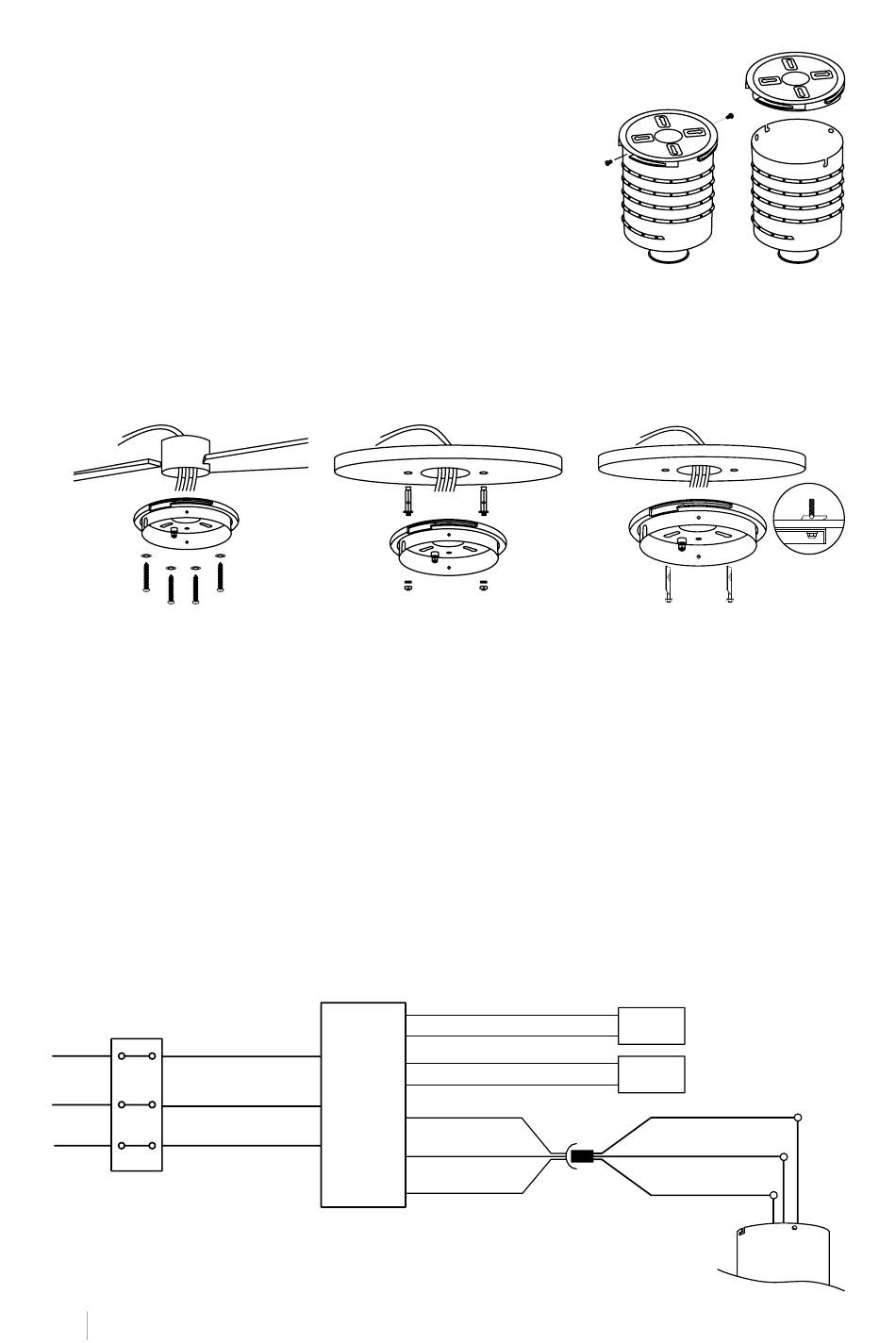

FIX I NG TH E MOU NTI NG B R ACKE T
• Check that the ceiling where you intend to mount the fan is
stable and capable of safely supporting the weight of the
fan.
• Do not fix the mounting bracket directly on ceilings less
than 10mm to avoid the risk of the screw loosening and
coming out.
1. Unscrew the side screws of the ceiling mounting bracket
that are anchored to the fan motor.
2. Carefully remove the mounting bracket to install it on the ceiling.
• Mark the correct position of the holes and fix the mounting bracket using the screws with
metal anchors or screws and washers suitable for the type of ceiling chosen.
Wood roof
Drill the necessary holes
and then secure the mount-
ing bracket with the wood
screws and washers to the
ceiling joints.
• Verify proper installation of the bracket before hanging the fan. The mounting bracket
must support the entire weight of the fan.
W IRING CON NECTI ON
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Ground
(green / yellow)
Ground
L
L Input (black)
N
N Input (white)
E NGL I SH
10
Concrete roof
Drill holes with an 8mm drill
bit, according to the length
of the expansion screws.
Next, secure the mounting
bracket to the ceiling with
the expansion screws.
Light L2 (brown)
Light N2 (gray)
Light L1 (white)
Light N1 (blue)
Remote
control
Motor U (brown)
reciever
V (red)
W (gray)
False ceiling
Drill the necessary holes
and then fix the mounting
bracket with the special
spring lever fixing screws
for use in false ceilings.
Light 2
Light 1
DC L Motor (brown)
DC L Motor (red)
DC L Motor (gray)
