B L ADE AS SE MB LY
Advice: Washers for the blade screws can be placed on each screw before installing the
blades.

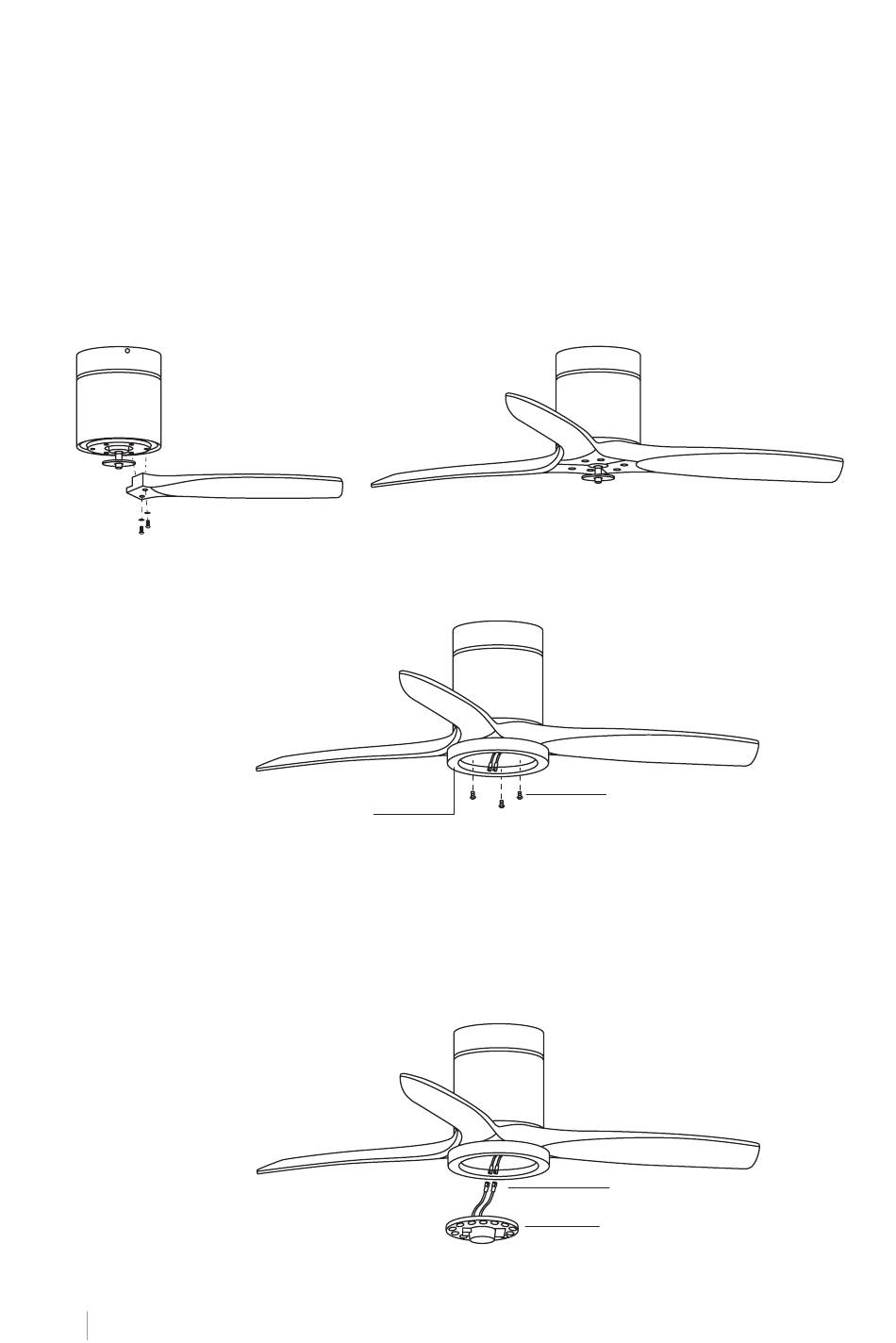

1. Align the blade holes with the screw holes on the motor, and then tighten all the screws
Select the blade screws and attach the first blade, lining up the holes in the motor with
the holes in the blade. Screw the blade in so that it is secured but without tightening the
screws too much to be able to place the rest.
2. Repeat the previous step with the rest of the blades.
3. Once all the blades are in place, tighten the screws completely so that the blades are fully
secured.
Washer
Blade screw
PATC H PAN E L MOU NTI NG
Attach the connection panel to the bottom of the fan by inserting the screw heads into the
designated holes.
Screw in the screws and then secure them properly.
MOU NT IN G THE LE D BOARD
E NGL I SH
12
Connection panel
panel screws
Single pin plug
LED panel
