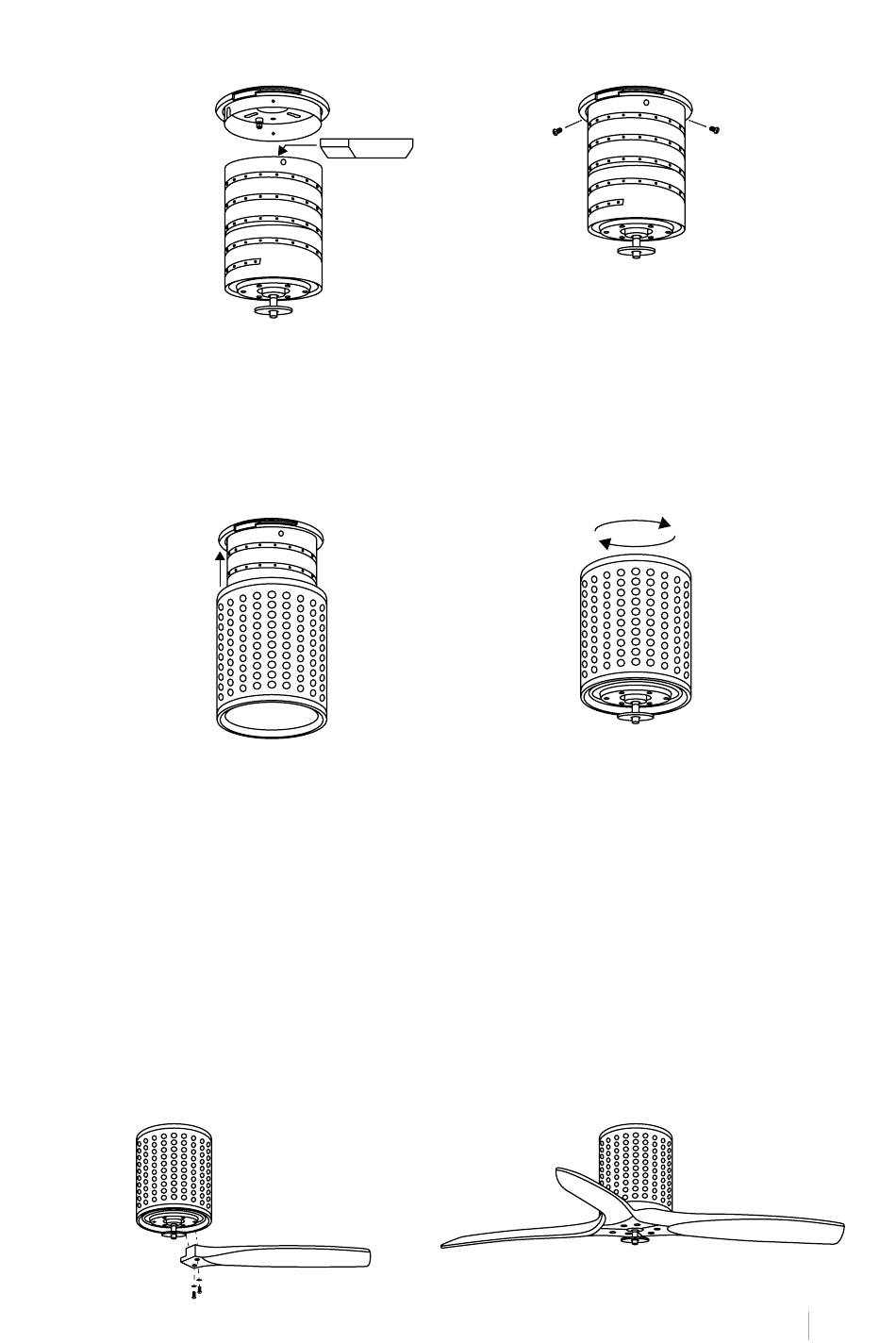

P OSIT IONI N G OF TH E CO NT RO L RECE IV E R
1. Insert the driver into the motor body and route the wiring so that it is not pinched when
attaching the body to the ceiling mounting bracket.
2. Position the motor body so that the holes fit together and then screw the 4 mounting
bracket screws to the motor body.
Note: Make sure that the motor body is perfectly installed to the ceiling.
FIT T IN G T HE TOP COVE R
1. Carefully insert the top cover into the motor of the product.
2. Align the slot of the top cover with the slot opening of the mounting bracket and insert it, then
rotate and install it securely.
Check that the cover is securely in place before further assembly.
B L ADE AS SE MB LY
Advice: Washers for the blade screws can be placed on each screw before installing the
blades.
1. Align the blade holes with the screw holes on the motor, and then tighten all the screws
Select the blade screws and attach the first blade, lining up the holes in the motor with
the holes in the blade. Screw the blade in so that it is secured but without tightening the
screws too much to be able to place the rest.
2. Repeat the previous step with the rest of the blades.
3. Once all the blades are in place, tighten the screws completely so that the blades are fully
secured.
Washer
Blade screw
