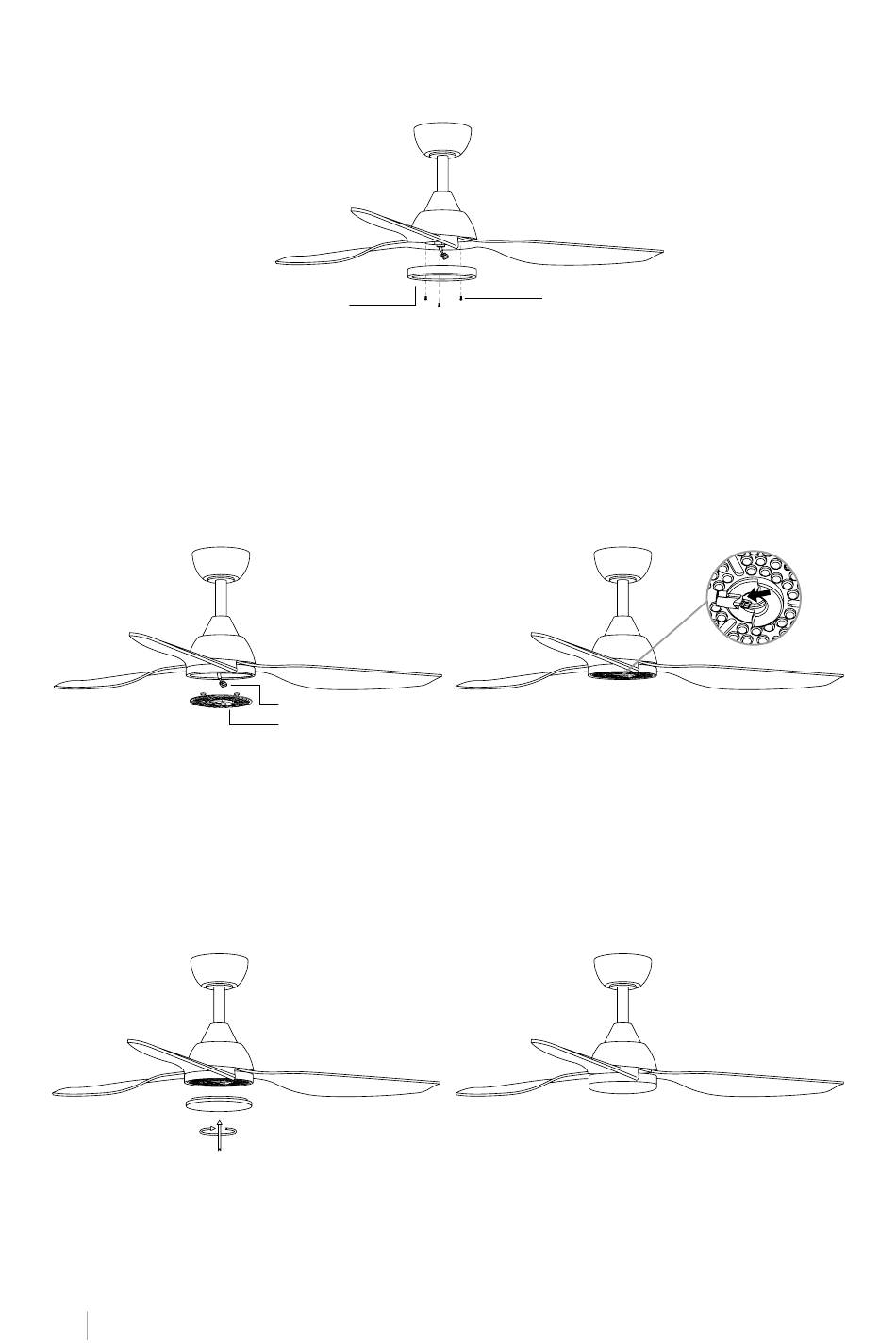

M OU NT IN G TH E PATCH PANE L
* Only for the model WITH LIGHT
• Unscrew the motor fixing screws as shown in the picture. Then fit the connection panel to
the bottom of the fan by inserting the screw heads into the holes provided.
• Finally, screw in the screws and then secure them.
Note: While installing or removing the patch panel, carefully keep the insulation pads in-
tact. Turning the fixing screws too hard or too fast will damage the insulating pads.
M OU NT IN G TH E LE D PANE L
Connect the single pin of the connecting plate to the LED panel, and then attach the LED
panel to the decorative plate through its magnets.
M OUN TI N G THE D ECO R AT I VE SCRE E N
* Only for the model WITH LIGHT
Once the LED panel is correctly positioned, attach the LED panel decorative screen by
screwing it onto the motor connection panel.
E NGL I SH
14
Patch panel
Single pin
LED Panel
Panel screws
