Advice: Washers for the blade screws can be placed on each screw before installing the blades.
1. Align the blade holes with the screw holes on the motor, and then tighten all the screws
Select the blade screws and attach the first blade, lining up the holes in the motor with
the holes in the blade. Screw the blade in so that it is secured but without tightening the
screws too much to be able to place the rest.
2. Repeat the previous step with the rest of the blades.
3. Once all the blades are in place, tighten the screws completely so that the blades are fully
secured.

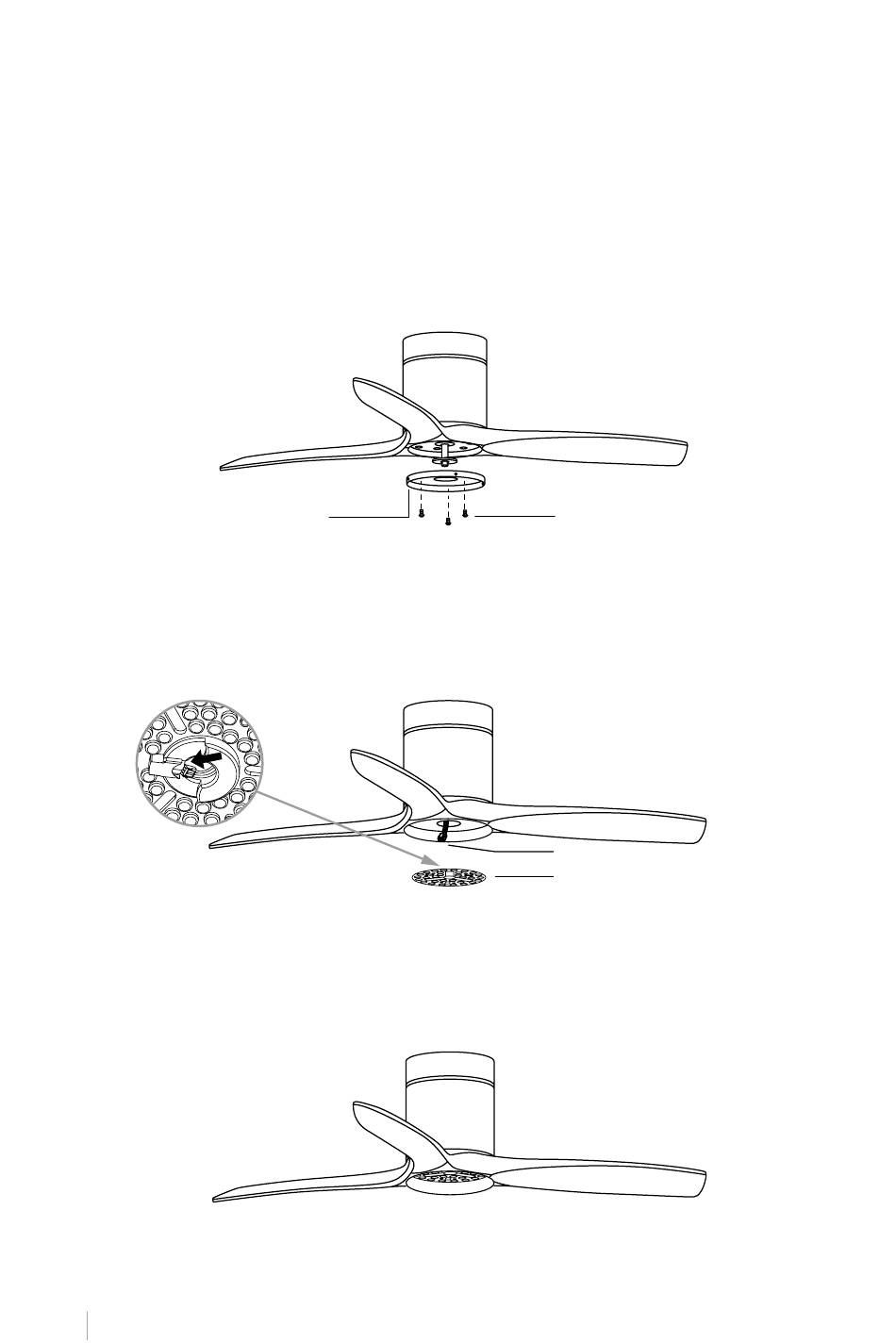

MOUNTING THE CONNECTION PANEL
Connection panel
Attach the connection panel to the bottom of the fan by inserting the screw heads into the
designated holes.
Screw in the screws and then secure them properly.
LE D PAN E L MOU NTI NG
Connect the single plug of the connection board to the LED panel.
Note: While installing or removing the LED panel, be careful not to touch the insulating tabs.
Fix the LED panel to the decorative plate using the magnets on the back of the panel.
E NGL I SH
12
Panel screws
Single pin plug
LED panel
