Commodore 64 Bedienungshandbuch Seite 150

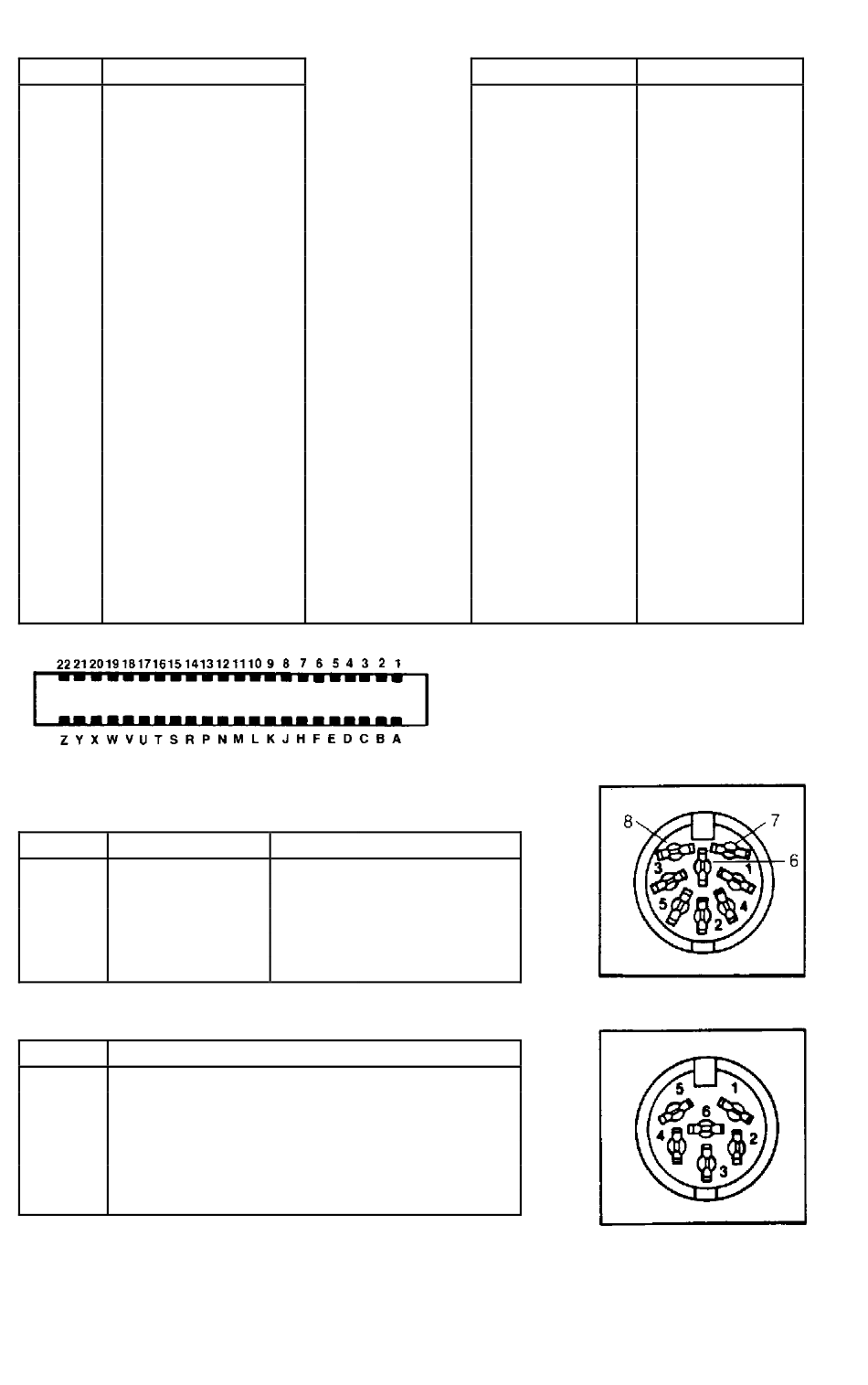

Modul-Steckplatz
Pin Signal
22 GND
21 CD0
20 CD1
19 CD2
18 CD3
17 CD4
16 CD5
15 CD6
14 CD7
13 -DMA-
12 BA
11 -ROML-
10 -I/O 2-
9 -EXROM-
8 -GAME-
7 -I/O 1-
6 Dot Clock
5 CR/-W-
4 -IRQ-
3 +5V
2 +5V
1 GND
Audio/Video
Pin Signal
1 LUMINANCE
2 GND
3 AUDIO OUT
4 VIDEO OUT
5 AUDIO IN
Serielle E/A
Pin
1 SERIAL -SRQIN-
2 GND
3 SERIAL ATN IN/OUT
4 SERIAL CLK IN/OUT
5 SERIAL DATA IN/OUT
6 -RESET-
Pin Signal
6 CROMINANZ
7 O. BELEGUNG
8 O. BELEGUNG
Signal
142
Pin Signal
Z GND
Y CA0
X CA1
W CA2
V CA3
U CA4
T CA5
S CA6
R CA7
P CA8
N CA9
M CA10
L CA11
K CA12
J CA13
H CA14
F CA15
E
D -NMI-
C -RESET-
B -ROMH-
A GND
∅ 2
