Follower
If follower foam appears to be damaged
or does not wipe sides of container
effectively service may be necessary
(→ Fig. 2 and Fig. IPB 1, page 15)
1 Disconnect hydraulic supply from
pump
2 Remove hex head screws (30),
lock washers (13) and eyebolts (11)
attaching drum cover (14) to reservoir
assembly (16)
3 Lift bare pump assembly (10),
hydraulic vent valve (20) and drum
cover (14) out of reservoir
assembly (16)
4 Remove follower assembly (35)
from reservoir assembly (16)
5 Wipe off excess grease from follower
assembly (35)
6 Loosen and remove lock nuts (61) on
top of follower assembly (35)
7 Remove weighted follower plate (62)
and follower foam (60) Replace with
new foam
8 Remove and save spacers (66) from
inside of foam before discarding foam
Reverse above procedure to reassemble
making sure long hex head screws (68)
are staggered with small hex head
screws (67)
NOTE
Do not attempt to rotate pump
assembly once inserted into
reservoir Damage to tubing may
occur
Handle all tubing parts extending
from bare pump assembly (10) into
reservoir assembly (16) with care
Prior to assembly, align drum
cover (14) and follower
assembly (35) with reservoir
assembly (16) so follower assembly
will slide onto vent pipe (34), level
sensor (33) and bare pump
assembly (10)
NOTE
Remove excess grease to allow
access to bolts that must be
removed
Do not bend or twist tubing during
removal of pump, vent valve and
drum cover
10

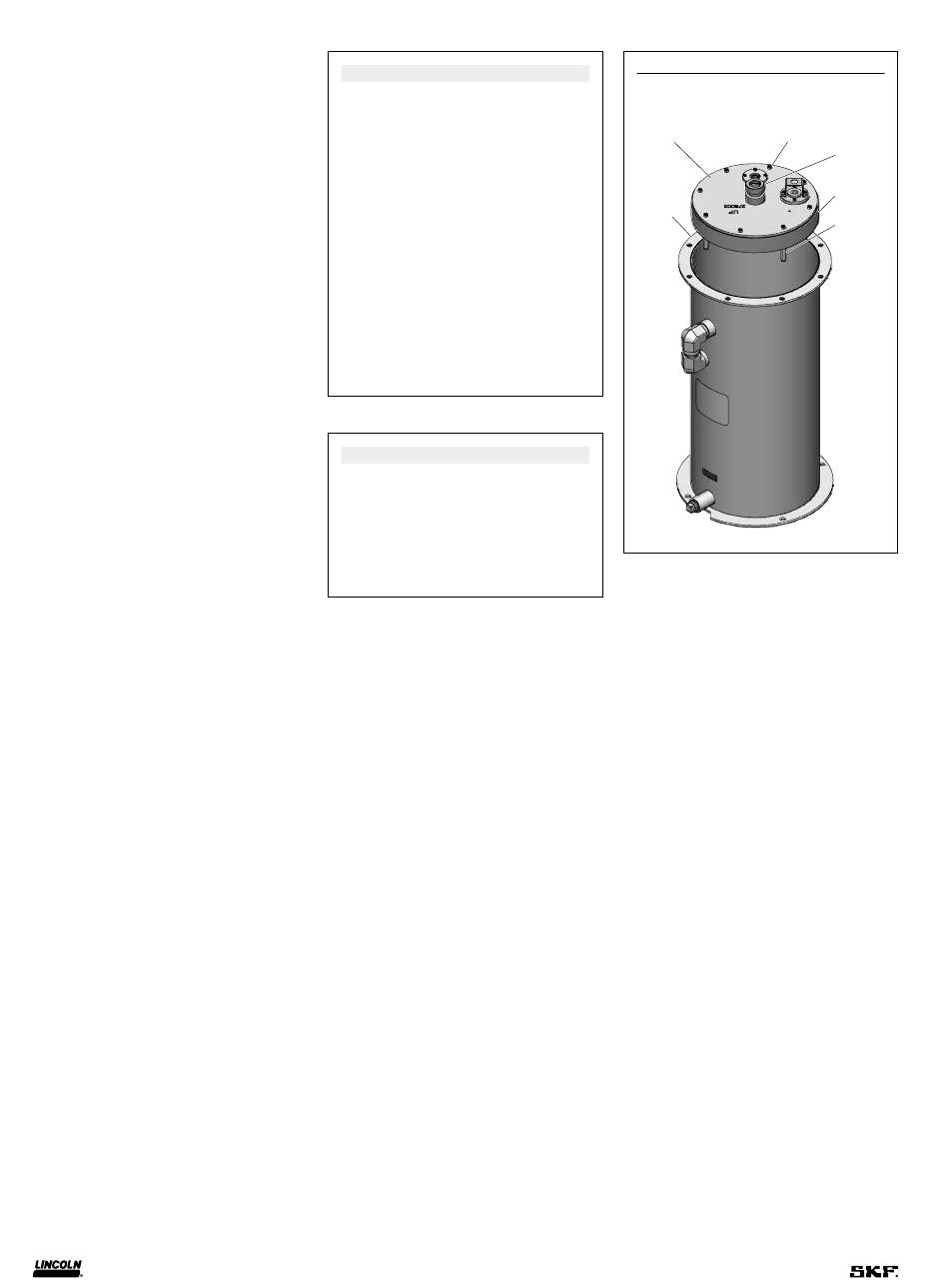

Follower assembly (35)
61
35
16
Fig. 2
62
60
66
