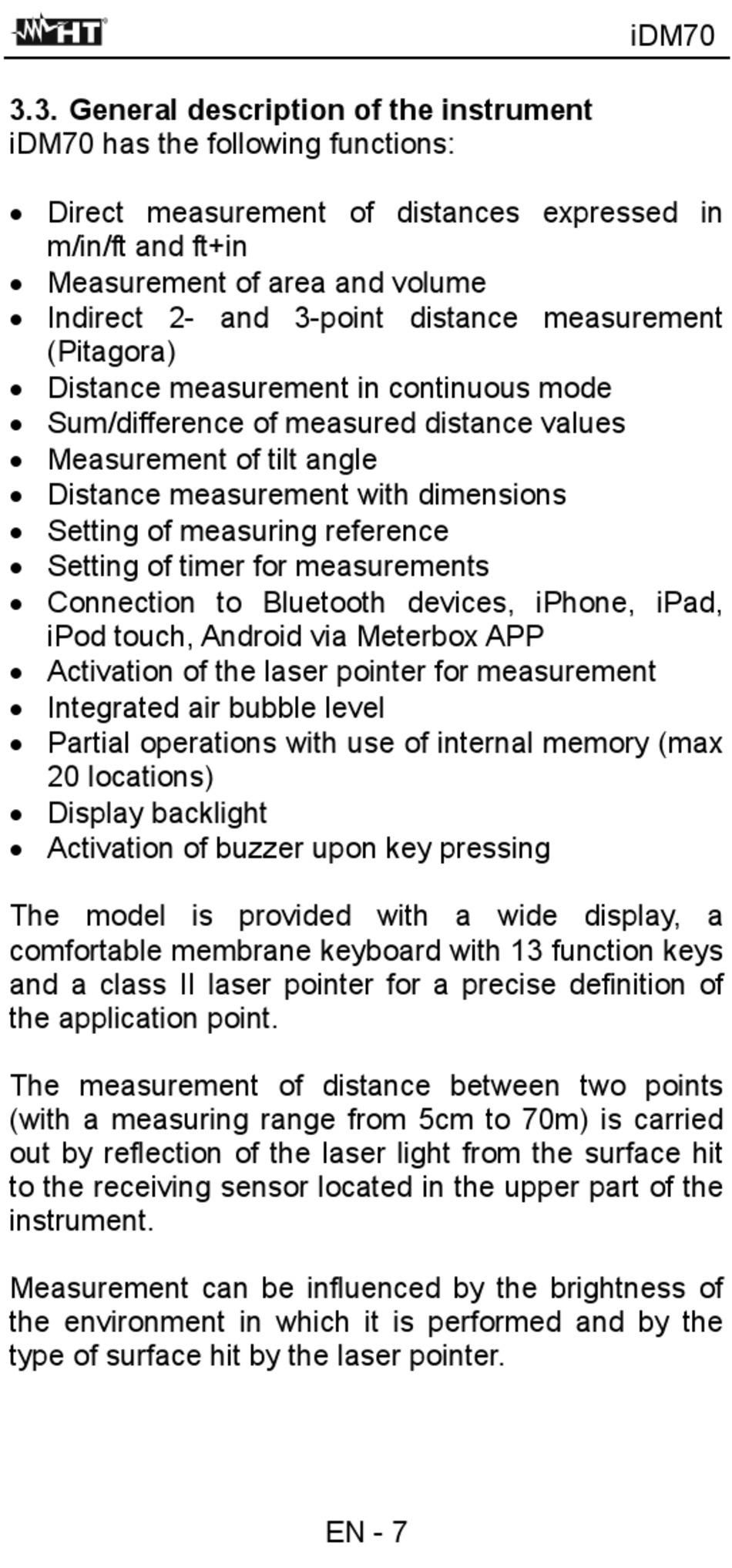

3.3. General description of the instrument

iDM70 has the following functions:
 Direct measurement of distances expressed in
m/in/ft and ft+in
 Measurement of area and volume
 Indirect 2- and 3-point distance measurement
(Pitagora)
 Distance measurement in continuous mode
 Sum/difference of measured distance values
 Measurement of tilt angle
 Distance measurement with dimensions
 Setting of measuring reference
 Setting of timer for measurements
 Connection to Bluetooth devices, iPhone, iPad,
iPod touch, Android via Meterbox APP
 Activation of the laser pointer for measurement
 Integrated air bubble level
 Partial operations with use of internal memory (max
20 locations)
 Display backlight
 Activation of buzzer upon key pressing
The model is provided with a wide display, a
comfortable membrane keyboard with 13 function keys
and a class II laser pointer for a precise definition of
the application point.
The measurement of distance between two points
(with a measuring range from 5cm to 70m) is carried
out by reflection of the laser light from the surface hit
to the receiving sensor located in the upper part of the
instrument.
Measurement can be influenced by the brightness of
the environment in which it is performed and by the
type of surface hit by the laser pointer.
