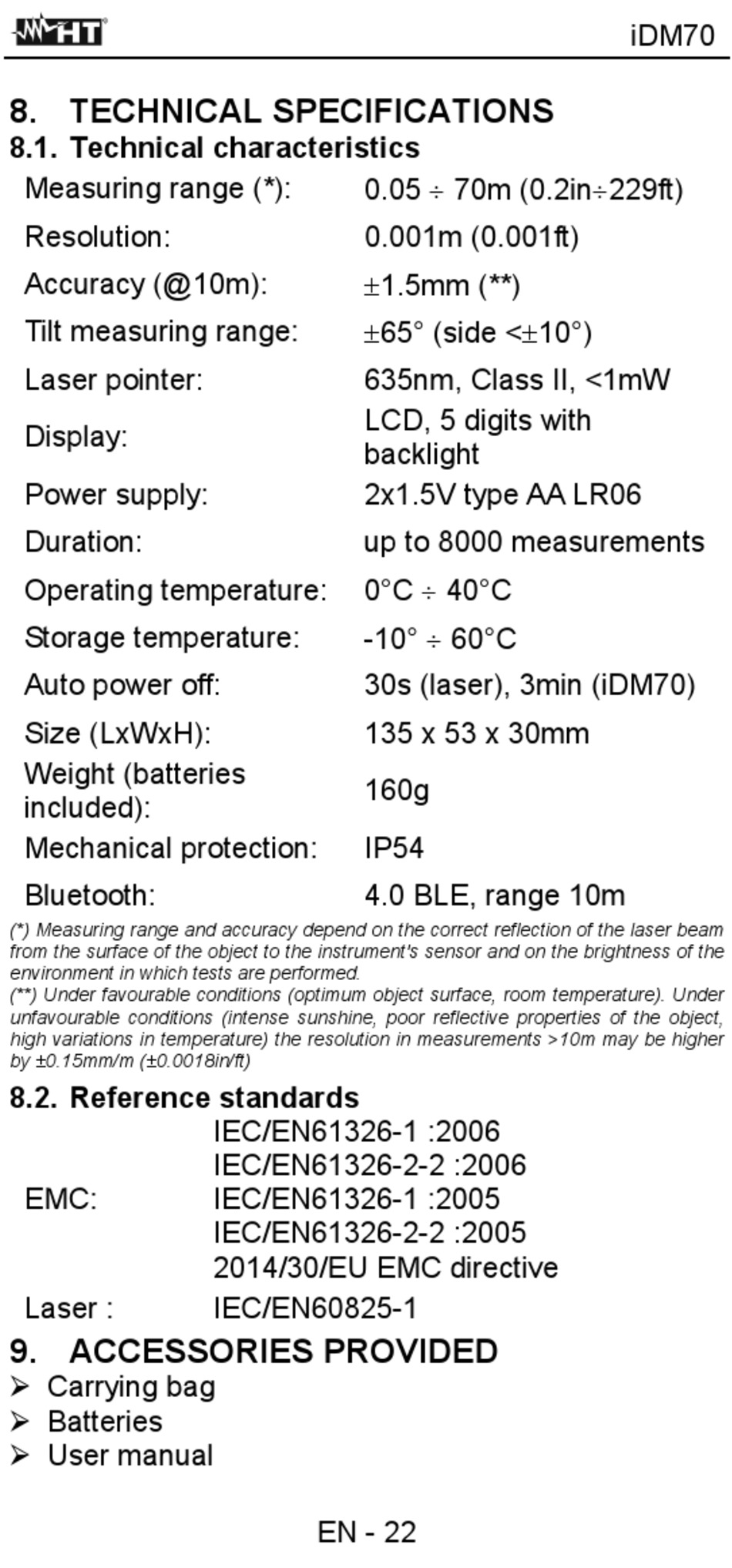

8. TECHNICAL SPECIFICATIONS

8.1. Technical characteristics

Measuring range (*):
Resolution:
Accuracy (@10m):
Tilt measuring range:
Laser pointer:
Display:
Power supply:
Duration:
Operating temperature:
Storage temperature:
Auto power off:
Size (LxWxH):
Weight (batteries
included):
Mechanical protection:
Bluetooth:
(*) Measuring range and accuracy depend on the correct reflection of the laser beam
from the surface of the object to the instrument's sensor and on the brightness of the
environment in which tests are performed.
(**) Under favourable conditions (optimum object surface, room temperature). Under
unfavourable conditions (intense sunshine, poor reflective properties of the object,
high variations in temperature) the resolution in measurements >10m may be higher
by ±0.15mm/m (±0.0018in/ft)

8.2. Reference standards

EMC:
Laser :

9. ACCESSORIES PROVIDED

 Carrying bag
 Batteries
 User manual
IEC/EN61326-1 :2006
IEC/EN61326-2-2 :2006
IEC/EN61326-1 :2005
IEC/EN61326-2-2 :2005
2014/30/EU EMC directive
IEC/EN60825-1
EN - 22
0.05  70m (0.2in229ft)
0.001m (0.001ft)
1.5mm (**)
65° (side <10°)
635nm, Class II, <1mW
LCD, 5 digits with
backlight
2x1.5V type AA LR06
up to 8000 measurements
0°C  40°C
-10°  60°C
30s (laser), 3min (iDM70)
135 x 53 x 30mm
160g
IP54
4.0 BLE, range 10m
iDM70
