4. NOMENCLATURE

4.1.

DESCRIPTION OF THE INSTRUMENT

4.2.

DESCRIPTION OF THE SYMBOLS ON THE DISPLAY

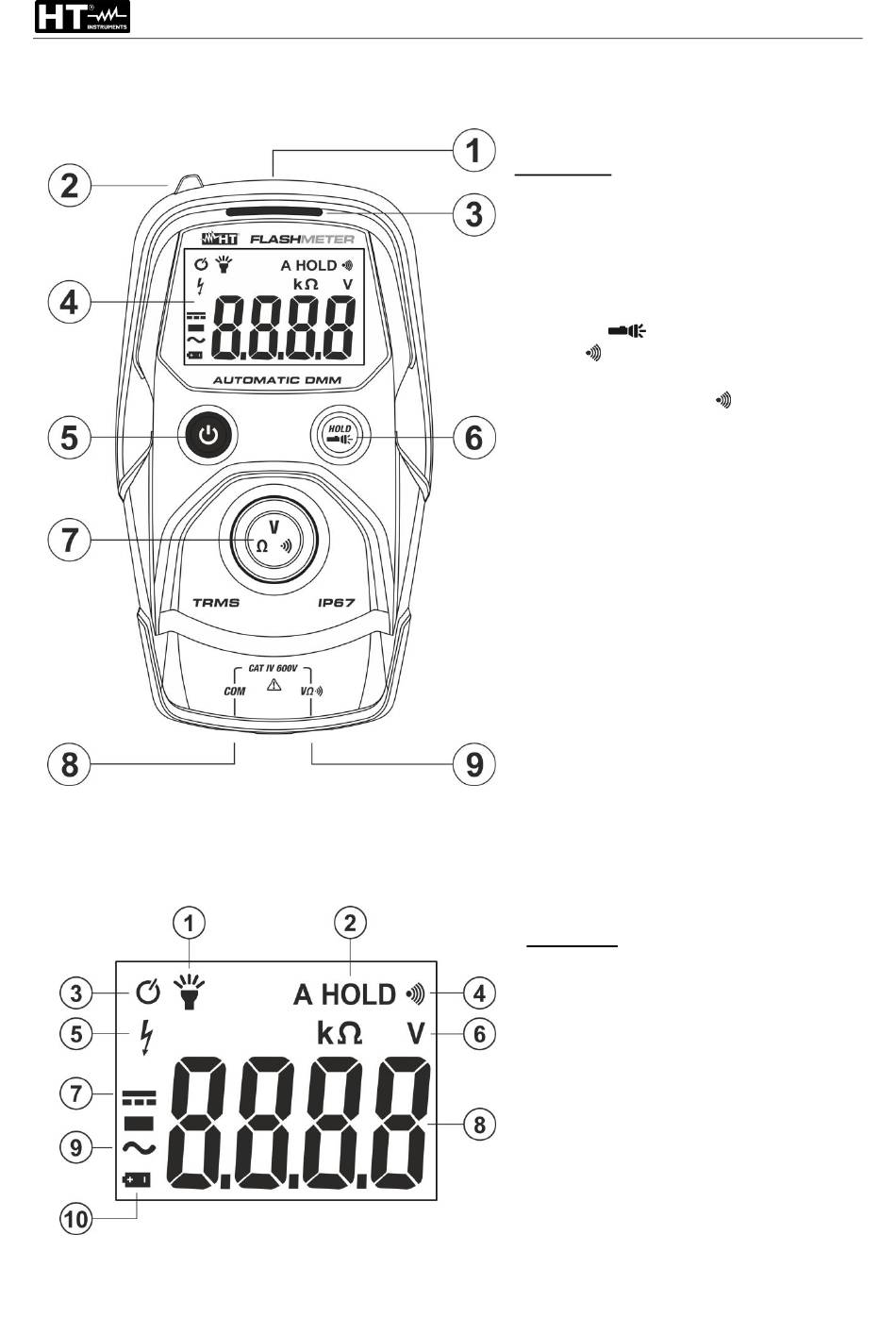

Fig. 1: Description of the instrument
Fig. 2: Description of the symbols on the display
CAPTION:
1. White-light torch
2. NCV sensor
3. Detector of AC voltage without
contact
4. LCD display
5. ON/OFF key
6. HOLD/
7. V/Ω/ key
8. Input terminal COM
9. Input terminal V/Ω/
CAPTION:
1. Activated white-light torch
2. Active A HOLD function
3. Auto Power Off (APO)
4. Activation of continuity test
5. Presence of high voltage
6. Measuring unit
7. DC Voltage
8. LCD display
9. AC Voltage
10. Low battery symbol
EN - 6
FLASHMETER
key
