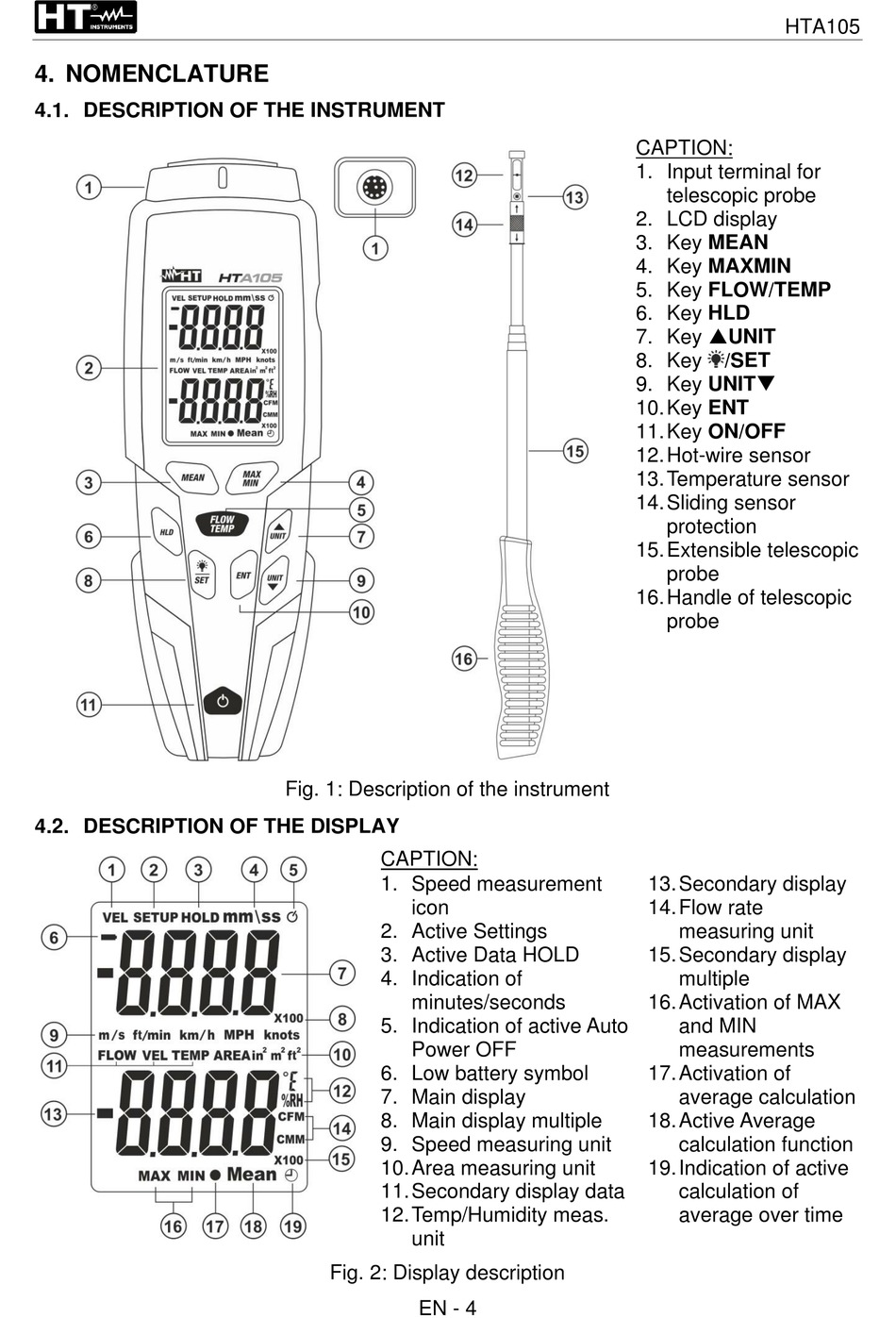

4. NOMENCLATURE
4.1. DESCRIPTION OF THE INSTRUMENT
4.2. DESCRIPTION OF THE DISPLAY
Fig. 1: Description of the instrument
CAPTION:
1. Speed measurement
icon
2. Active Settings
3. Active Data HOLD
4. Indication of
minutes/seconds
5. Indication of active Auto
Power OFF
6. Low battery symbol
7. Main display
8. Main display multiple
9. Speed measuring unit
10. Area measuring unit
11. Secondary display data
12. Temp/Humidity meas.
unit
Fig. 2: Display description
EN - 4
HTA105
CAPTION:
1. Input terminal for
telescopic probe
2. LCD display
3. Key MEAN
4. Key MAXMIN
5. Key FLOW/TEMP
6. Key HLD
7. Key UNIT
8. Key /SET
9. Key UNIT
10. Key ENT
11. Key ON/OFF
12. Hot-wire sensor
13. Temperature sensor
14. Sliding sensor
protection
15. Extensible telescopic
probe
16. Handle of telescopic
probe
13. Secondary display
14. Flow rate
measuring unit
15. Secondary display
multiple
16. Activation of MAX
and MIN
measurements
17. Activation of
average calculation
18. Active Average
calculation function
19. Indication of active
calculation of
average over time
