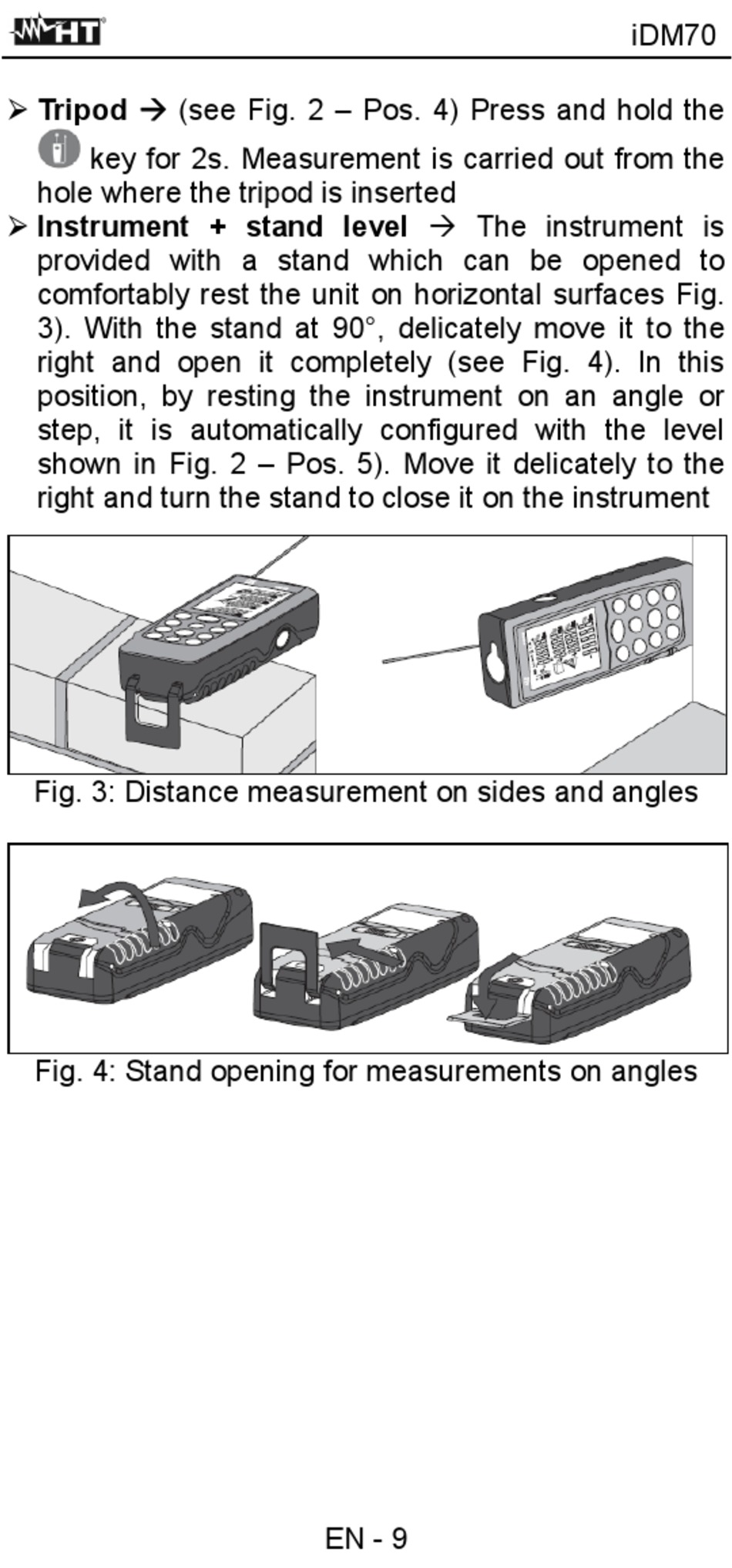

 Tripod  (see Fig. 2 – Pos. 4) Press and hold the
key for 2s. Measurement is carried out from the
hole where the tripod is inserted
 Instrument + stand level  The instrument is
provided with a stand which can be opened to
comfortably rest the unit on horizontal surfaces Fig.
3). With the stand at 90°, delicately move it to the
right and open it completely (see Fig. 4). In this
position, by resting the instrument on an angle or
step, it is automatically configured with the level
shown in Fig. 2 – Pos. 5). Move it delicately to the
right and turn the stand to close it on the instrument
Fig. 3: Distance measurement on sides and angles
Fig. 4: Stand opening for measurements on angles
EN - 9
iDM70
