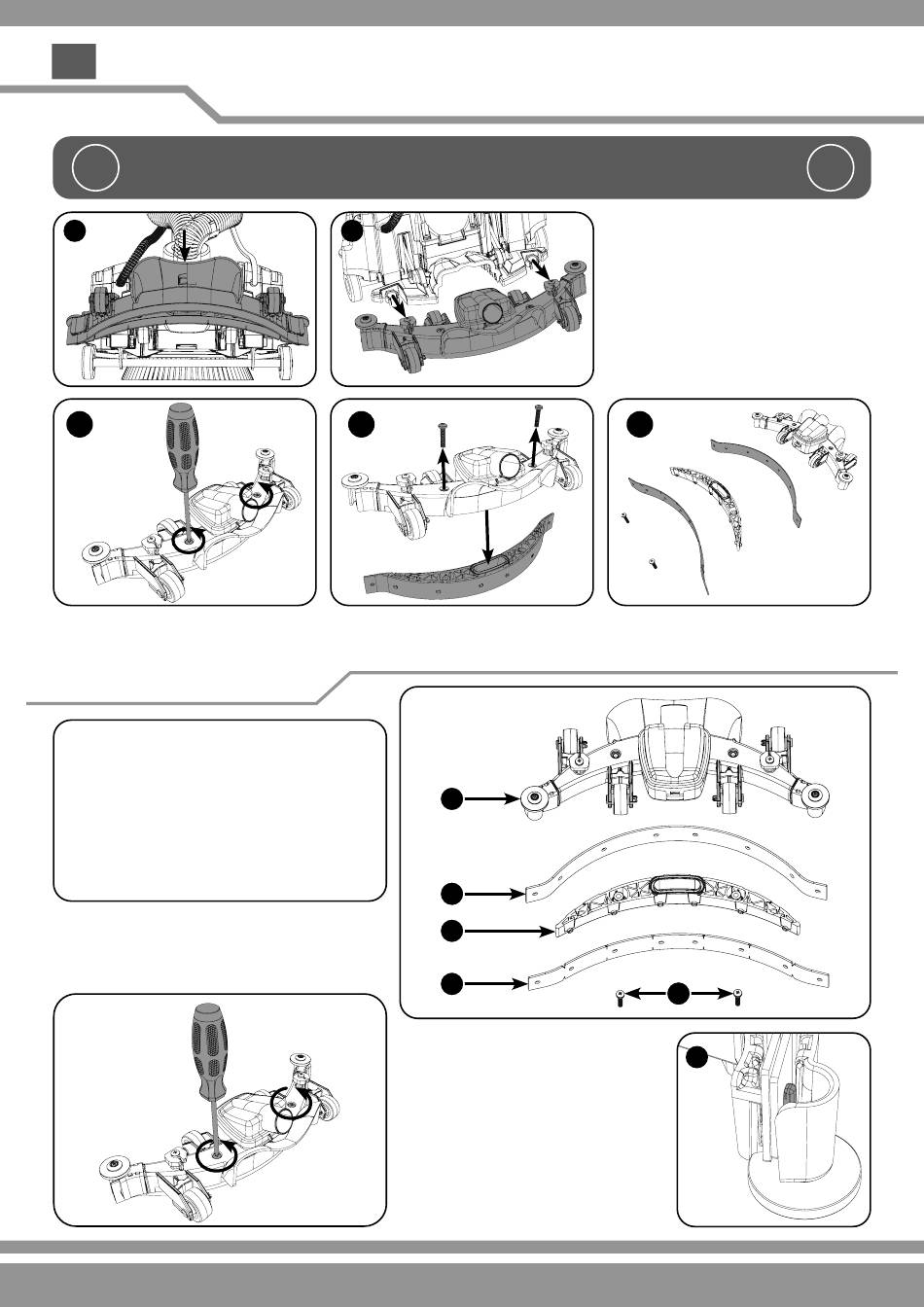

Changing the Floor Tool Blades
EN
!
ALWAYS MAKE SURE THAT THE MACHINE IS SWITCHED OFF AND THE BATTERY IS
A
1
Unscrew the two screws securing the
blade holder.
Refitting the floor tool blades
Floor Tool Overview
1. Screws x 2
2. Front blade (Slotted / Reversible)
3. Blade carrier
4. Rear blade
5. Floor tool main body
NOTE: The blades are designed to be reversible and
rotated giving 4 usable surfaces (front, back, top and
bottom, thus extending their useful working life).
REMOVED PRIOR TO ANY MAINTENANCE.
B
2
Remove the screws and blade holder.
5
4
3
2
Refit the blade holder, retain using the two
screws. Make sure the slotted blade goes
to the front of the floor tool.
Make sure the end holes on both
squeegee blades are positioned correctly
on 'T' shaped clip mouldings (A).
55
55
To change the floor tool, firstly lower the
floor tool by pressing down on the toe cap
located behind the hose (A).
Pull the floor tool away from the machine (B).
3
Replace the Squeegee blades using
replacement blade set (3), fitting the
blades on to the moulded location lugs.
1
A
!
