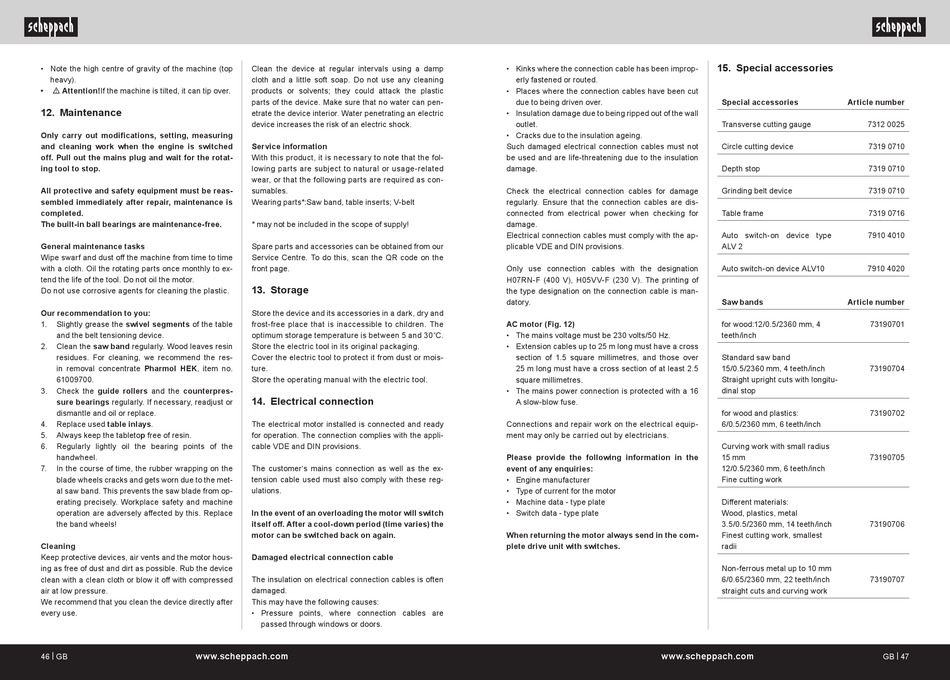

• Note the high centre of gravity of the machine (top
heavy).
• m Attention!If the machine is tilted, it can tip over.
12. Maintenance
Only carry out modifications, setting, measuring
and cleaning work when the engine is switched
off. Pull out the mains plug and wait for the rotat-
ing tool to stop.
All protective and safety equipment must be reas-
sembled immediately after repair, maintenance is
completed.
The built-in ball bearings are maintenance-free.
General maintenance tasks
Wipe swarf and dust off the machine from time to time
with a cloth. Oil the rotating parts once monthly to ex-
tend the life of the tool. Do not oil the motor.
Do not use corrosive agents for cleaning the plastic.
Our recommendation to you:
1. Slightly grease the swivel segments of the table
and the belt tensioning device.
2. Clean the saw band regularly. Wood leaves resin
residues. For cleaning, we recommend the res-
in removal concentrate Pharmol HEK, item no.
61009700.
3. Check the guide rollers and the counterpres-
sure bearings regularly. If necessary, readjust or
dismantle and oil or replace.
4. Replace used table inlays.
5. Always keep the tabletop free of resin.
6. Regularly lightly oil the bearing points of the
handwheel.
7. In the course of time, the rubber wrapping on the
blade wheels cracks and gets worn due to the met-
al saw band. This prevents the saw blade from op-
erating precisely. Workplace safety and machine
operation are adversely affected by this. Replace
the band wheels!
Cleaning
Keep protective devices, air vents and the motor hous-
ing as free of dust and dirt as possible. Rub the device
clean with a clean cloth or blow it off with compressed
air at low pressure.
We recommend that you clean the device directly after
every use.
46 | GB www.scheppach.com
Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use any cleaning
products or solvents; they could attack the plastic
parts of the device. Make sure that no water can pen-
etrate the device interior. Water penetrating an electric
device increases the risk of an electric shock.
Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*:Saw band, table inserts; V-belt
* may not be included in the scope of supply!
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
13. Storage
Store the device and its accessories in a dark, dry and
frost-free place that is inaccessible to children. The
optimum storage temperature is between 5 and 30˚C.
Store the electric tool in its original packaging.
Cover the electric tool to protect it from dust or mois-
ture.
Store the operating manual with the electric tool.
14. Electrical connection
The electrical motor installed is connected and ready
for operation. The connection complies with the appli-
cable VDE and DIN provisions.
The customer's mains connection as well as the ex-
tension cable used must also comply with these reg-
ulations.
In the event of an overloading the motor will switch
itself off. After a cool-down period (time varies) the
motor can be switched back on again.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions.
Only use connection cables with the designation
H07RN-F (400 V), H05VV-F (230 V). The printing of
the type designation on the connection cable is man-
datory.
AC motor (Fig. 12)
• The mains voltage must be 230 volts/50 Hz.
• Extension cables up to 25 m long must have a cross
section of 1.5 square millimetres, and those over
25 m long must have a cross section of at least 2.5
square millimetres.
• The mains power connection is protected with a 16
A slow-blow fuse.
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the
event of any enquiries:
• Engine manufacturer
• Type of current for the motor
• Machine data - type plate
• Switch data - type plate
When returning the motor always send in the com-
plete drive unit with switches.
www.scheppach.com
15. Special accessories
Special accessories Article number
Transverse cutting gauge 7312 0025
Circle cutting device 7319 0710
Depth stop 7319 0710
Grinding belt device 7319 0710
Table frame 7319 0716
Auto switch-on device type 7910 4010
ALV 2
Auto switch-on device ALV10 7910 4020
Saw bands Article number
for wood:12/0.5/2360 mm, 4 73190701
teeth/inch
Standard saw band
15/0.5/2360 mm, 4 teeth/inch 73190704
Straight upright cuts with longitu-
dinal stop
for wood and plastics: 73190702
6/0.5/2360 mm, 6 teeth/inch
Curving work with small radius
15 mm 73190705
12/0.5/2360 mm, 6 teeth/inch
Fine cutting work
Different materials:
Wood, plastics, metal
3.5/0.5/2360 mm, 14 teeth/inch 73190706
Finest cutting work, smallest
radii
Non-ferrous metal up to 10 mm
6/0.65/2360 mm, 22 teeth/inch 73190707
straight cuts and curving work
