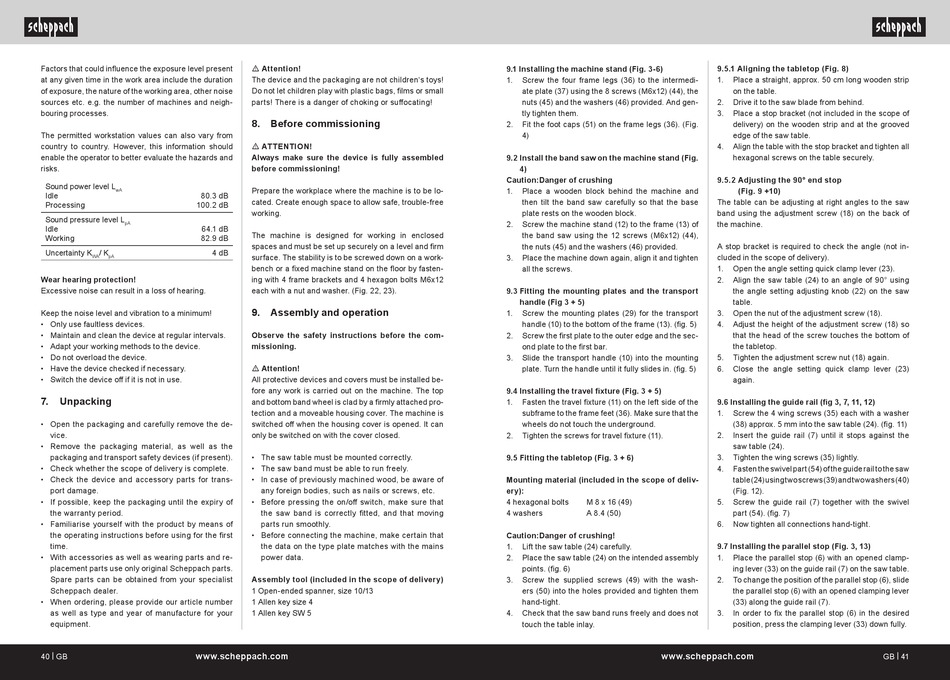

Factors that could influence the exposure level present
at any given time in the work area include the duration
of exposure, the nature of the working area, other noise
sources etc. e.g. the number of machines and neigh-
bouring processes.
The permitted workstation values can also vary from
country to country. However, this information should
enable the operator to better evaluate the hazards and
risks.
Sound power level L
wA
Idle 80.3 dB
Processing 100.2 dB
Sound pressure level L
pA
Idle 64.1 dB
Working 82.9 dB
Uncertainty K / K 4 dB
WA pA
Wear hearing protection!
Excessive noise can result in a loss of hearing.
Keep the noise level and vibration to a minimum!
• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating instructions before using for the first
time.
• With accessories as well as wearing parts and re-
placement parts use only original Scheppach parts.
Spare parts can be obtained from your specialist
Scheppach dealer.
• When ordering, please provide our article number
as well as type and year of manufacture for your
equipment.
40 | GB www.scheppach.com
m Attention!
The device and the packaging are not children's toys!
Do not let children play with plastic bags, films or small
parts! There is a danger of choking or suffocating!
8. Before commissioning
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
Prepare the workplace where the machine is to be lo-
cated. Create enough space to allow safe, trouble-free
working.
The machine is designed for working in enclosed
spaces and must be set up securely on a level and firm
surface. The stability is to be screwed down on a work-
bench or a fixed machine stand on the floor by fasten-
ing with 4 frame brackets and 4 hexagon bolts M6x12
each with a nut and washer. (Fig. 22, 23).
9. Assembly and operation
Observe the safety instructions before the com-
missioning.
m Attention!
All protective devices and covers must be installed be-
fore any work is carried out on the machine. The top
and bottom band wheel is clad by a firmly attached pro-
tection and a moveable housing cover. The machine is
switched off when the housing cover is opened. It can
only be switched on with the cover closed.
• The saw table must be mounted correctly.
• The saw band must be able to run freely.
• In case of previously machined wood, be aware of
any foreign bodies, such as nails or screws, etc.
• Before pressing the on/off switch, make sure that
the saw band is correctly fitted, and that moving
parts run smoothly.
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
Assembly tool (included in the scope of delivery)
1 Open-ended spanner, size 10/13
1 Allen key size 4
1 Allen key SW 5
9.1 Installing the machine stand (Fig. 3-6)
1. Screw the four frame legs (36) to the intermedi-
ate plate (37) using the 8 screws (M6x12) (44), the
nuts (45) and the washers (46) provided. And gen-
tly tighten them.
2. Fit the foot caps (51) on the frame legs (36). (Fig.
4)
9.2 Install the band saw on the machine stand (Fig.
4)
Caution:Danger of crushing
1. Place a wooden block behind the machine and
then tilt the band saw carefully so that the base
plate rests on the wooden block.
2. Screw the machine stand (12) to the frame (13) of
the band saw using the 12 screws (M6x12) (44),
the nuts (45) and the washers (46) provided.
3. Place the machine down again, align it and tighten
all the screws.
9.3 Fitting the mounting plates and the transport
handle (Fig 3 + 5)
1. Screw the mounting plates (29) for the transport
handle (10) to the bottom of the frame (13). (fig. 5)
2. Screw the first plate to the outer edge and the sec-
ond plate to the first bar.
3. Slide the transport handle (10) into the mounting
plate. Turn the handle until it fully slides in. (fig. 5)
9.4 Installing the travel fixture (Fig. 3 + 5)
1. Fasten the travel fixture (11) on the left side of the
subframe to the frame feet (36). Make sure that the
wheels do not touch the underground.
2. Tighten the screws for travel fixture (11).
9.5 Fitting the tabletop (Fig. 3 + 6)
Mounting material (included in the scope of deliv-
ery):
4 hexagonal bolts M 8 x 16 (49)
4 washers A 8.4 (50)
Caution:Danger of crushing!
1. Lift the saw table (24) carefully.
2. Place the saw table (24) on the intended assembly
points. (fig. 6)
3. Screw the supplied screws (49) with the wash-
ers (50) into the holes provided and tighten them
hand-tight.
4. Check that the saw band runs freely and does not
touch the table inlay.
www.scheppach.com
9.5.1 Aligning the tabletop (Fig. 8)
1. Place a straight, approx. 50 cm long wooden strip
on the table.
2. Drive it to the saw blade from behind.
3. Place a stop bracket (not included in the scope of
delivery) on the wooden strip and at the grooved
edge of the saw table.
4. Align the table with the stop bracket and tighten all
hexagonal screws on the table securely.
9.5.2 Adjusting the 90° end stop
(Fig. 9 +10)
The table can be adjusting at right angles to the saw
band using the adjustment screw (18) on the back of
the machine.
A stop bracket is required to check the angle (not in-
cluded in the scope of delivery).
1. Open the angle setting quick clamp lever (23).
2. Align the saw table (24) to an angle of 90° using
the angle setting adjusting knob (22) on the saw
table.
3. Open the nut of the adjustment screw (18).
4. Adjust the height of the adjustment screw (18) so
that the head of the screw touches the bottom of
the tabletop.
5. Tighten the adjustment screw nut (18) again.
6. Close the angle setting quick clamp lever (23)
again.
9.6 Installing the guide rail (fig 3, 7, 11, 12)
1. Screw the 4 wing screws (35) each with a washer
(38) approx. 5 mm into the saw table (24). (fig. 11)
2. Insert the guide rail (7) until it stops against the
saw table (24).
3. Tighten the wing screws (35) lightly.
4. Fasten the swivel part (54) of the guide rail to the saw
table (24) using two screws (39) and two washers (40)
(Fig. 12).
5. Screw the guide rail (7) together with the swivel
part (54). (fig. 7)
6. Now tighten all connections hand-tight.
9.7 Installing the parallel stop (Fig. 3, 13)
1. Place the parallel stop (6) with an opened clamp-
ing lever (33) on the guide rail (7) on the saw table.
2. To change the position of the parallel stop (6), slide
the parallel stop (6) with an opened clamping lever
(33) along the guide rail (7).
3. In order to fix the parallel stop (6) in the desired
position, press the clamping lever (33) down fully.
