5.11. Wheels
5.11.1. Drive wheel height

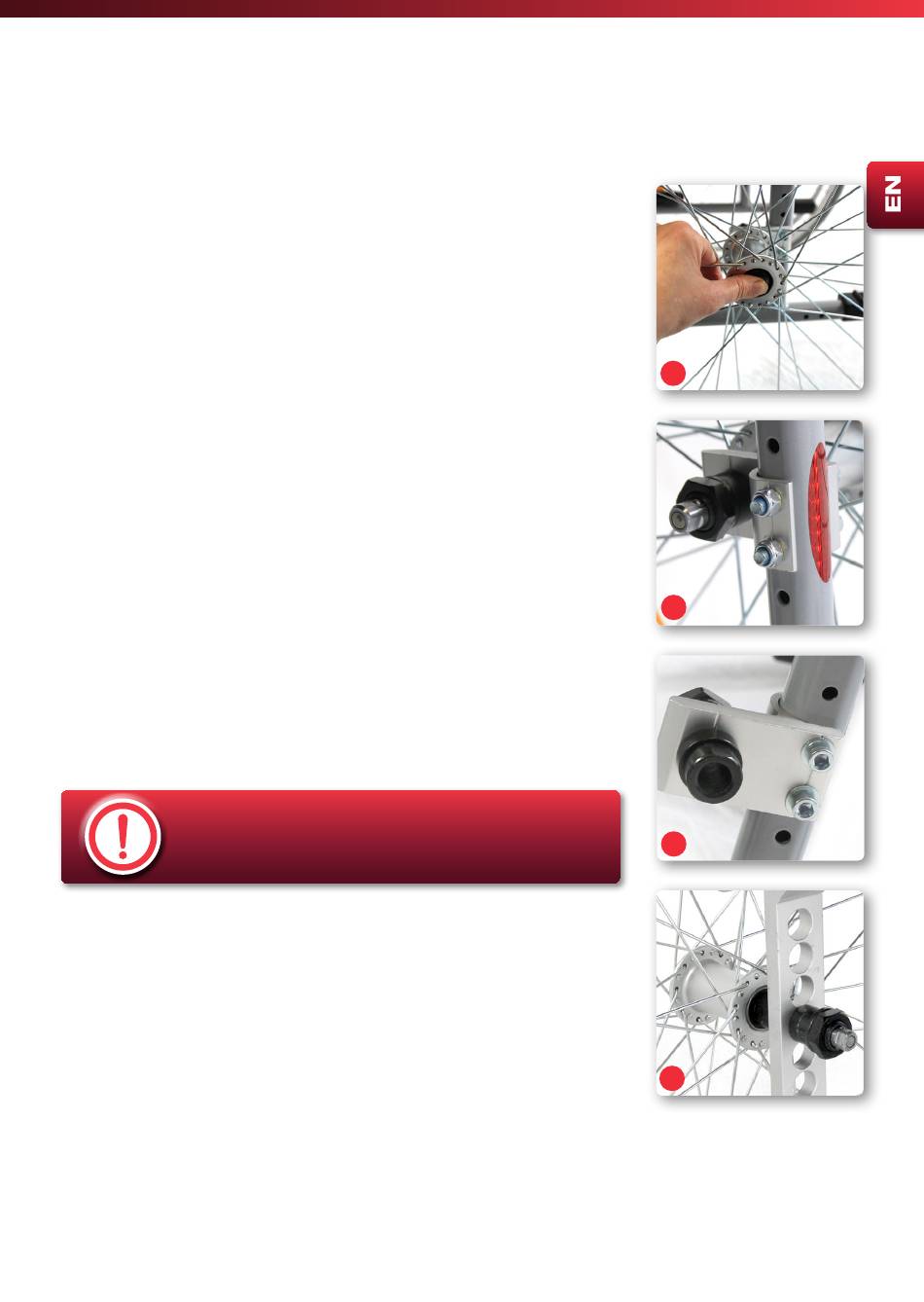

To facilitate the work, remove the drive wheel by pressing on the
quick-release axle (Fig. 19 /Chapter 5.20). To adjust the height of
the drive wheel and thus raise or lower the entire wheelchair, you
must first remove the drive wheel bracket.
For Pyrolight
Using a spanner on the inside (Fig. 20) and an Allen key (Fig. 21) on
the outside, you can loosen the fastening nuts (Fig. 20) of the axle
bracket. Now you can remove the bracket and attach it at the desired
height. Tighten the nut again and attach the drive wheel. Make sure
that both drive wheels are mounted at the same height.
For Pyrolight XL
Use two spanners to loosen the nut (Fig. 22). Now you can remove
the bracket and attach it at the desired height. Tighten the nut again
and attach the drive wheel. Make sure that both drive wheels are
mounted at the same height.
If the drive wheel height is changed, the knee lever
brake must be readjusted.
