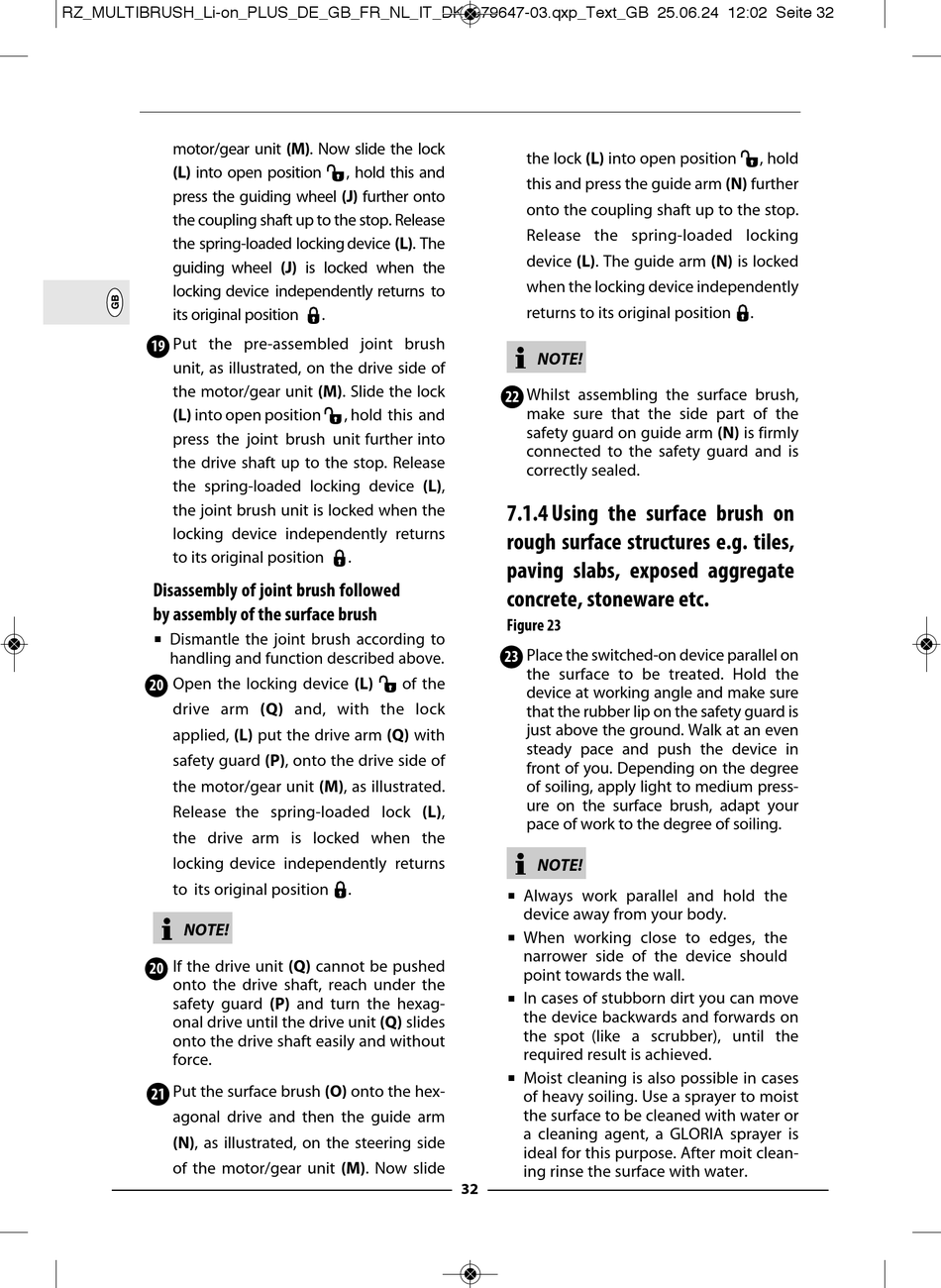

motor/gear unit (M). Now slide the lock
(L) into open position
press the guiding wheel (J) further onto
the coupling shaft up to the stop. Release
the spring-loaded locking device (L). The
guiding wheel (J) is locked when the
locking device independently returns to
its original position
19
Put the pre-assembled joint brush
unit, as illustrated, on the drive side of
the motor/gear unit (M). Slide the lock
(L) into open position
press the joint brush unit further into
the drive shaft up to the stop. Release
the spring-loaded locking device (L),
the joint brush unit is locked when the
locking device independently returns
to its original posi tion
Disassembly of joint brush followed
by assembly of the surface brush

Dismantle the joint brush according to
handling and function described above.
20
Open the locking device (L)
drive arm (Q) and, with the lock
applied, (L) put the drive arm (Q) with
safety guard (P), onto the drive side of
the motor/gear unit (M), as illustrated.
Release the spring-loaded lock (L),
the drive arm is locked when the
locking device independently returns
to its original position
NOTE!
20
If the drive unit (Q) cannot be pushed
onto the drive shaft, reach under the
safety guard (P) and turn the hexag-
onal drive until the drive unit (Q) slides
onto the drive shaft easily and without
force.
21
Put the surface brush (O) onto the hex-
agonal drive and then the guide arm
(N), as illustrated, on the steering side
of the motor/gear unit (M). Now slide
, hold this and
.
, hold this and
.
of the
.
32
the lock (L) into open position
this and press the guide arm (N) further
onto the coupling shaft up to the stop.
Release the spring-loaded locking
device (L). The guide arm (N) is locked
when the locking device independently
returns to its original position
NOTE!
22
Whilst assembling the surface brush,
make sure that the side part of the
safety guard on guide arm (N) is firmly
connected to the safety guard and is
correctly sealed.
7.1.4 Using the surface brush on
rough surface structures e.g. tiles,
paving slabs, exposed aggregate
concrete, stoneware etc.
Figure 23
23
Place the switched-on device parallel on
the surface to be treated. Hold the
device at working angle and make sure
that the rubber lip on the safety guard is
just above the ground. Walk at an even
steady pace and push the device in
front of you. Depending on the degree
of soiling, apply light to medium press-
ure on the surface brush, adapt your
pace of work to the degree of soiling.
NOTE!

Always work parallel and hold the
device away from your body.

When working close to edges, the
narrower side of the device should
point towards the wall.

In cases of stubborn dirt you can move
the device backwards and forwards on
the spot (like a scrubber), until the
required result is achieved.

Moist cleaning is also possible in cases
of heavy soiling. Use a sprayer to moist
the surface to be cleaned with water or
a cleaning agent, a GLORIA sprayer is
ideal for this purpose. After moit clean-
ing rinse the surface with water.
