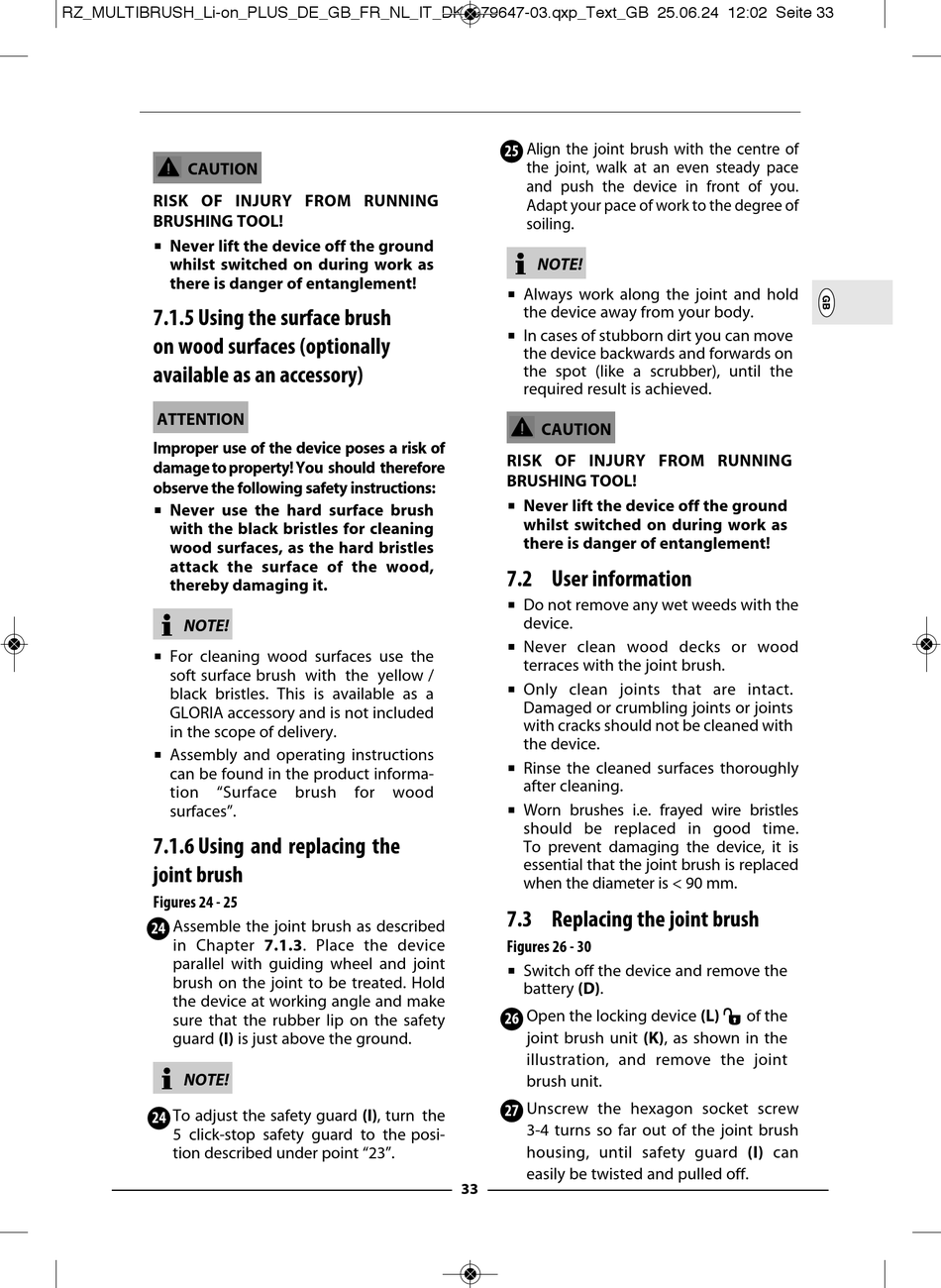

Gloria MULTIBRUSH li-on PLUS Betriebsanleitung Seite 33

RZ_MULTIBRUSH_Li-on_PLUS_DE_GB_FR_NL_IT_DK_979647-03.qxp_Text_GB 25.06.24 12:02 Seite 33
CAUTION
RISK OF INJURY FROM RUNNING
BRUSHING TOOL!

Never lift the device off the ground
whilst switched on during work as
there is danger of entanglement!
7.1.5 Using the surface brush
on wood surfaces (optionally
available as an accessory)
ATTENTION
Improper use of the device poses a risk of
damage to property! You should therefore
observe the following safety instructions:

Never use the hard surface brush
with the black bristles for cleaning
wood surfaces, as the hard bristles
attack the surface of the wood,
thereby damaging it.
NOTE!

For cleaning wood surfaces use the
soft surface brush with the yellow /
black bristles. This is available as a
GLORIA accessory and is not in cluded
in the scope of delivery.

Assembly and operating instructions
can be found in the product informa-
tion "Surface
surfaces".
7.1.6 Using and replacing the
joint brush
Figures 24 - 25
24
Assemble the joint brush as described
in Chapter 7.1.3. Place the device
parallel with guiding wheel and joint
brush on the joint to be treated. Hold
the device at working angle and make
sure that the rubber lip on the safety
guard (I) is just above the ground.
NOTE!
24
To adjust the safety guard (I), turn the
5 click-stop safety guard to the posi-
tion described under point "23".
brush for wood
33
25
Align the joint brush with the centre of
the joint, walk at an even steady pace
and push the device in front of you.
Adapt your pace of work to the degree of
soiling.
NOTE!

Always work along the joint and hold
the device away from your body.

In cases of stubborn dirt you can move
the device backwards and forwards on
the spot (like a scrubber), until the
required result is achieved.
CAUTION
RISK OF INJURY FROM RUNNING
BRUSHING TOOL!

Never lift the device off the ground
whilst switched on during work as
there is danger of entanglement!
7.2 User information

Do not remove any wet weeds with the
device.

Never clean wood decks or wood
terraces with the joint brush.

Only clean joints that are intact.
Damaged or crumbling joints or joints
with cracks should not be cleaned with
the device.

Rinse the cleaned surfaces thoroughly
after cleaning.

Worn brushes i.e. frayed wire bristles
should be replaced in good time.
To prevent damaging the device, it is
essential that the joint brush is replaced
when the diameter is < 90 mm.
7.3 Replacing the joint brush
Figures 26 - 30

Switch off the device and remove the
battery (D).
26
Open the locking device (L)
joint brush unit (K), as shown in the
illustration, and remove the joint
brush unit.
27
Unscrew the hexagon socket screw
3-4 turns so far out of the joint brush
housing, until safety guard (I) can
easily be twisted and pulled off.
of the
