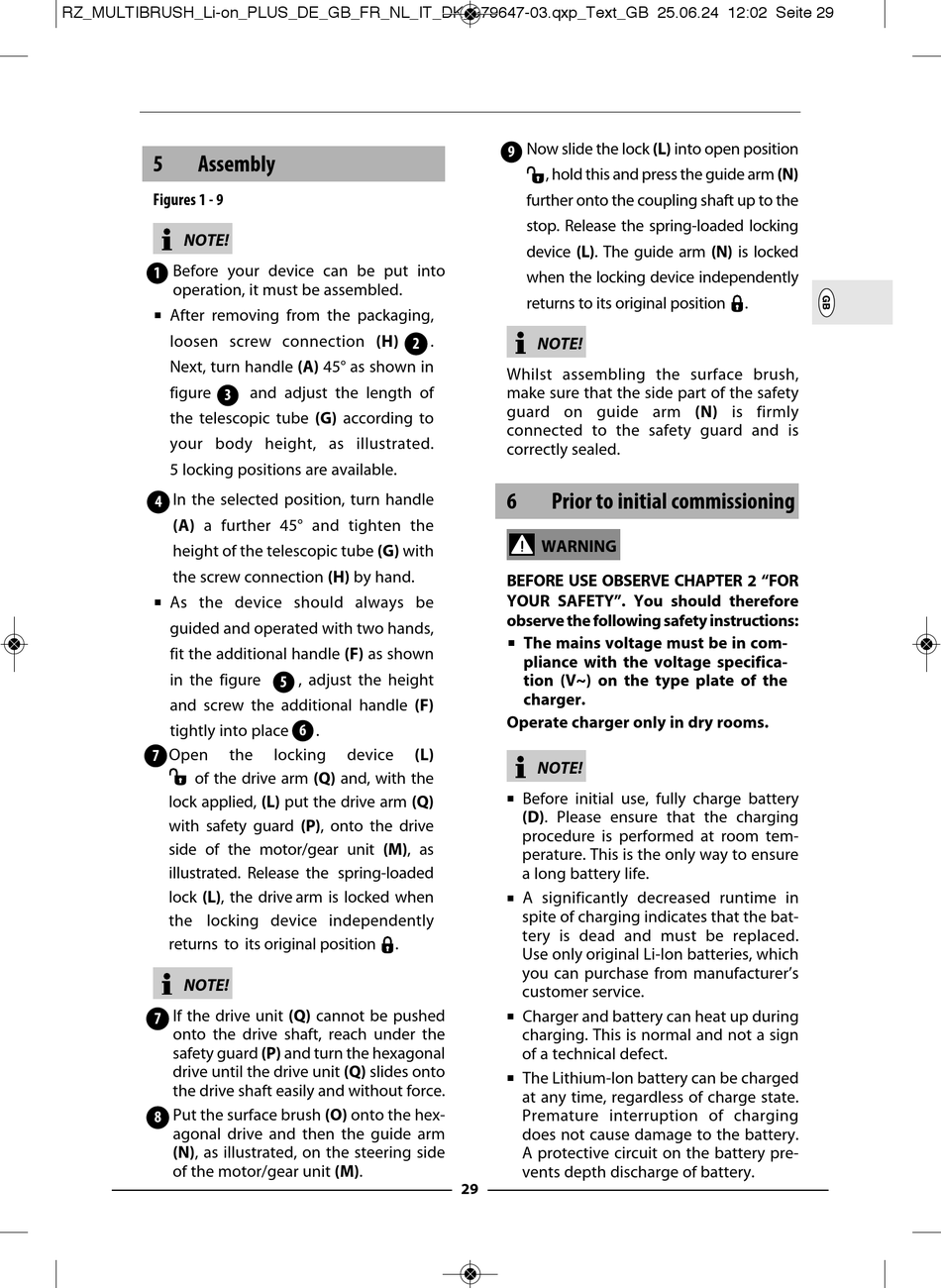

Gloria MULTIBRUSH li-on PLUS Betriebsanleitung Seite 29

RZ_MULTIBRUSH_Li-on_PLUS_DE_GB_FR_NL_IT_DK_979647-03.qxp_Text_GB 25.06.24 12:02 Seite 29
5 Assembly
Figures 1 - 9
NOTE!
1
Before your device can be put into
operation, it must be assembled.

After removing from the packaging,
loosen screw connection (H)
Next, turn handle (A) 45° as shown in
3
fig ure
the telescopic tube (G) according to
your body height, as illustrated.
5 locking positions are available.
4
In the selected position, turn handle
(A) a further 45° and tighten the
height of the telescopic tube (G) with
the screw connection (H) by hand.

As the device should always be
guided and operated with two hands,
fit the additional handle (F) as shown
in the figure
and screw the additional handle (F)
tightly into place
7
Open the
of the drive arm (Q) and, with the
lock applied, (L) put the drive arm (Q)
with safety guard (P), onto the drive
side of the motor/gear unit (M), as
illustrated. Release the spring-loaded
lock (L), the drive arm is locked when
the locking device independently
returns to its original position
NOTE!
7
If the drive unit (Q) cannot be pushed
onto the drive shaft, reach under the
safety guard (P) and turn the hexagonal
drive until the drive unit (Q) slides onto
the drive shaft easily and without force.
8
Put the surface brush (O) onto the hex-
agonal drive and then the guide arm
(N), as illustrated, on the steering side
of the motor/gear unit (M).
2
and adjust the length of
5
, adjust the height
6
.
locking device (L)
.
9
Now slide the lock (L) into open position
, hold this and press the guide arm (N)
further onto the coupling shaft up to the
stop. Release the spring-loaded locking
device (L). The guide arm (N) is locked
when the locking device independently
returns to its original position
NOTE!
.
Whilst assembling the surface brush,
make sure that the side part of the safety
guard on guide arm (N) is firmly
connected to the safety guard and is
correctly sealed.
6 Prior to initial commissioning
WARNING
BEFORE USE OBSERVE CHAPTER 2 "FOR
YOUR SAFETY". You should therefore
observe the following safety instructions:

The mains voltage must be in com-
pliance with the voltage specifica-
tion (V~) on the type plate of the
charger.
Operate charger only in dry rooms.
NOTE!

Before initial use, fully charge battery
(D). Please ensure that the charging
procedure is performed at room tem-
perature. This is the only way to ensure
a long battery life.

A significantly decreased runtime in
spite of charging indicates that the bat-
tery is dead and must be replaced.
Use only original Li-Ion batteries, which
you can purchase from manufacturer's
customer service.

Charger and battery can heat up during
charging. This is normal and not a sign
of a technical defect.

The Lithium-Ion battery can be charged
at any time, regardless of charge state.
Premature interruption of charging
does not cause damage to the battery.
A protective circuit on the battery pre-
vents depth discharge of battery.
