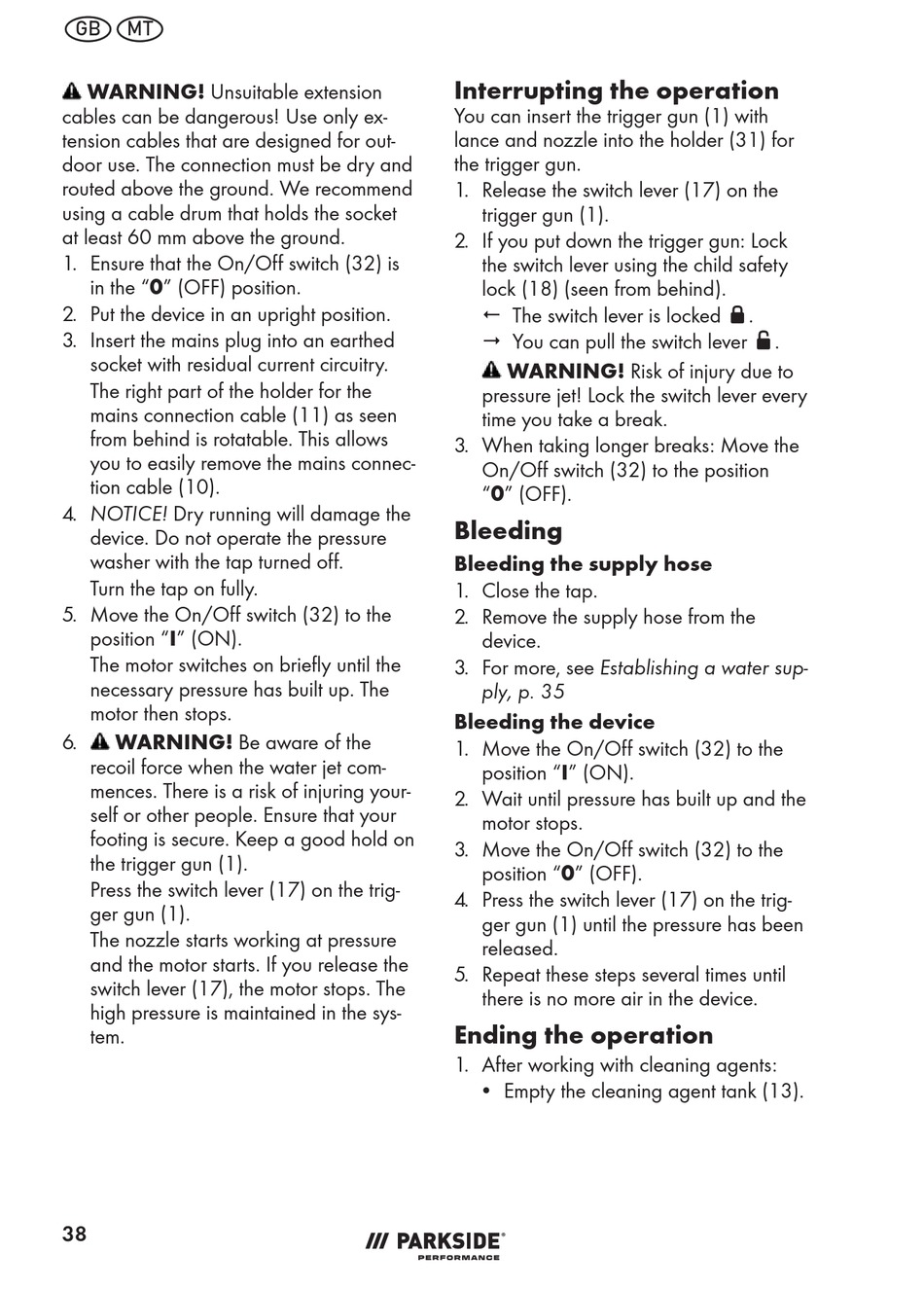

Parkside Performance PHDP 180 C2 Originalbetriebsanleitung Seite 38

GB MT
WARNING! Unsuitable extension
cables can be dangerous! Use only ex-
tension cables that are designed for out-
door use. The connection must be dry and
routed above the ground. We recommend
using a cable drum that holds the socket
at least 60 mm above the ground.
1. Ensure that the On/Off switch (32) is
in the "0" (OFF) position.
2. Put the device in an upright position.
3. Insert the mains plug into an earthed
socket with residual current circuitry.
The right part of the holder for the
mains connection cable (11) as seen
from behind is rotatable. This allows
you to easily remove the mains connec-
tion cable (10).
4. NOTICE! Dry running will damage the
device. Do not operate the pressure
washer with the tap turned off.
Turn the tap on fully.
5. Move the On/Off switch (32) to the
position "I" (ON).
The motor switches on briefly until the
necessary pressure has built up. The
motor then stops.
WARNING! Be aware of the
6.
recoil force when the water jet com-
mences. There is a risk of injuring your-
self or other people. Ensure that your
footing is secure. Keep a good hold on
the trigger gun (1).
Press the switch lever (17) on the trig-
ger gun (1).
The nozzle starts working at pressure
and the motor starts. If you release the
switch lever (17), the motor stops. The
high pressure is maintained in the sys-
tem.
38
Interrupting the operation
You can insert the trigger gun (1) with
lance and nozzle into the holder (31) for
the trigger gun.
1. Release the switch lever (17) on the
trigger gun (1).
2. If you put down the trigger gun: Lock
the switch lever using the child safety
lock (18) (seen from behind).
⭠ The switch lever is locked ὑ.
⭢ You can pull the switch lever ὑ.
WARNING! Risk of injury due to
pressure jet! Lock the switch lever every
time you take a break.
3. When taking longer breaks: Move the
On/Off switch (32) to the position
"0" (OFF).
Bleeding
Bleeding the supply hose
1. Close the tap.
2. Remove the supply hose from the
device.
3. For more, see Establishing a water sup-
ply, p. 35
Bleeding the device
1. Move the On/Off switch (32) to the
position "I" (ON).
2. Wait until pressure has built up and the
motor stops.
3. Move the On/Off switch (32) to the
position "0" (OFF).
4. Press the switch lever (17) on the trig-
ger gun (1) until the pressure has been
released.
5. Repeat these steps several times until
there is no more air in the device.
Ending the operation
1. After working with cleaning agents:
• Empty the cleaning agent tank (13).
