Anhang/Appendix; Typenschilder/Rating Plates; Elektronisches Motorschutzrelais/Electronic Motor-Protective Relay Zev; Stromsensoren Zev-Xsw - Eaton ZEV Handbuch

05/11 MN03407008Z-DE/EN
Typenschilder/
Rating Plates

Anhang/Appendix

Elektronisches Motorschutzrelais/
Electronic motor-protective relay ZEV
Eaton
ZEV
A1, A2 : U
= 24 ... 240V AC 50/60 Hz
S
24 ... 240V DC
U
AC-15 220-240 V
e
95/96 + 97/98 I
3 A
e
05/06 + 07/08 I
1,5 A
e
U
DC-13 24 V
e
95/96 + 97/98 I
1 A
e
05/06 + 07/08 I
1 A
e
IEC 947
AUX. CONT. B300 R300 2(1N0+1NC).
TRIPPING CURRENT IS 125% OF SETTING.
EN 60947
WITH AUTOMATIC RESET AND 2 WIRE
CONTROL. MOTOR MAY RESTART
VDE 0660
AUTOMATICALLY.
FOR CLASS DESIGNATION AND TRIPPING
CURRENT SEE INSTRUCTIONS PAGE 3+5
0102
TIGHTENING TORQUE 0,8...1,2 Nm
Made in
AUX: AWG 18 ... 14, 75°C CU WIRE ONLY.
Germany

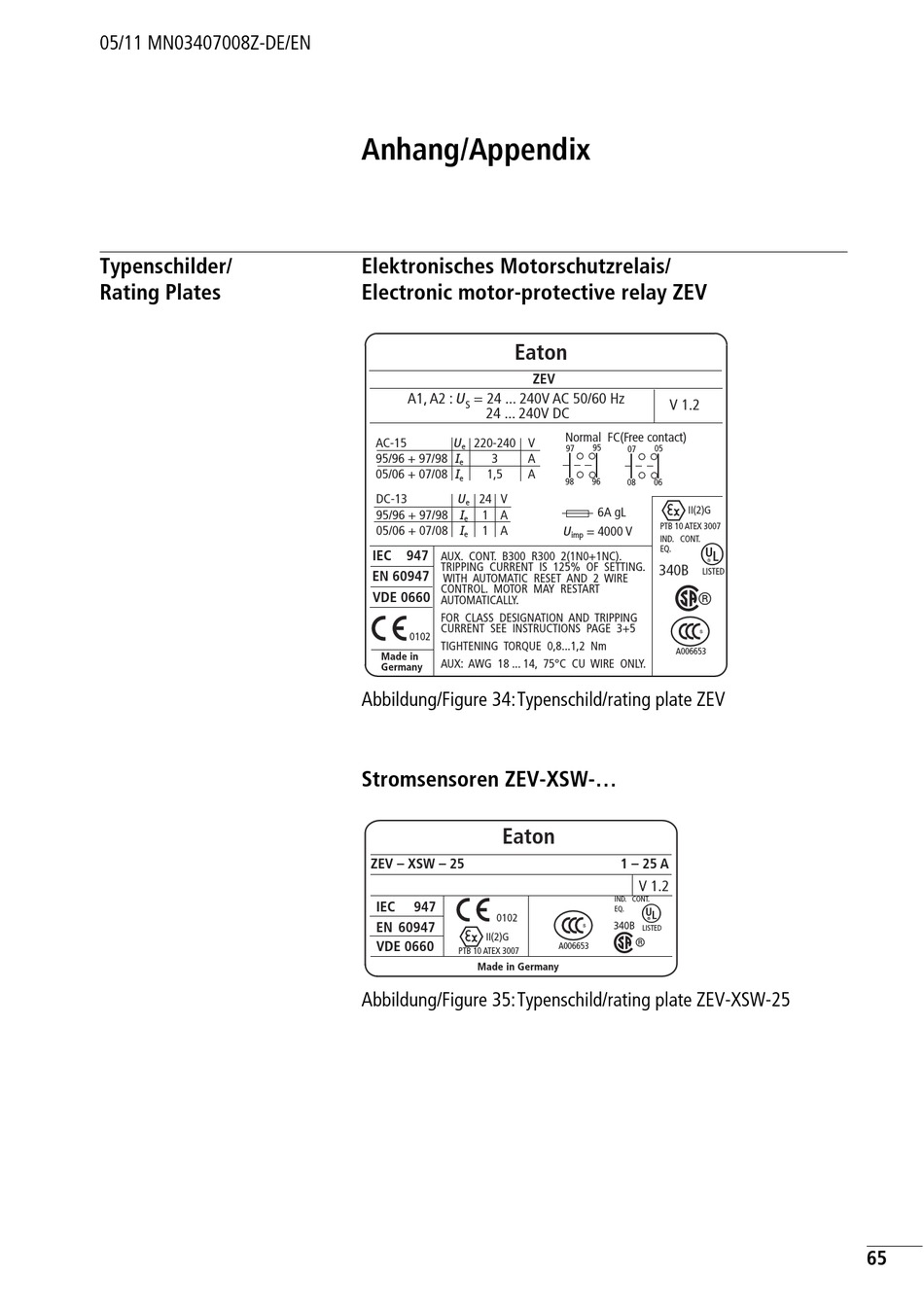

Abbildung/Figure 34:Typenschild/rating plate ZEV

Stromsensoren ZEV-XSW-...

Eaton
ZEV – XSW – 25
IEC 947
0102
EN 60947
II(2)G
VDE 0660
PTB 10 ATEX 3007
Made in Germany
Abbildung/Figure 35:Typenschild/rating plate ZEV-XSW-25
V 1.2
Normal FC(Free contact)
95
97 07 05
98 96 08
06
II(2)G
6A gL
PTB 10 ATEX 3007
U
= 4000 V
imp
IND. CONT.
u
EQ.
340B
LISTED
s
A006653
1 – 25 A
V 1.2
IND. CONT.
u
EQ.
340B
LISTED
s
A006653
65
