Installation

Removing devices

58

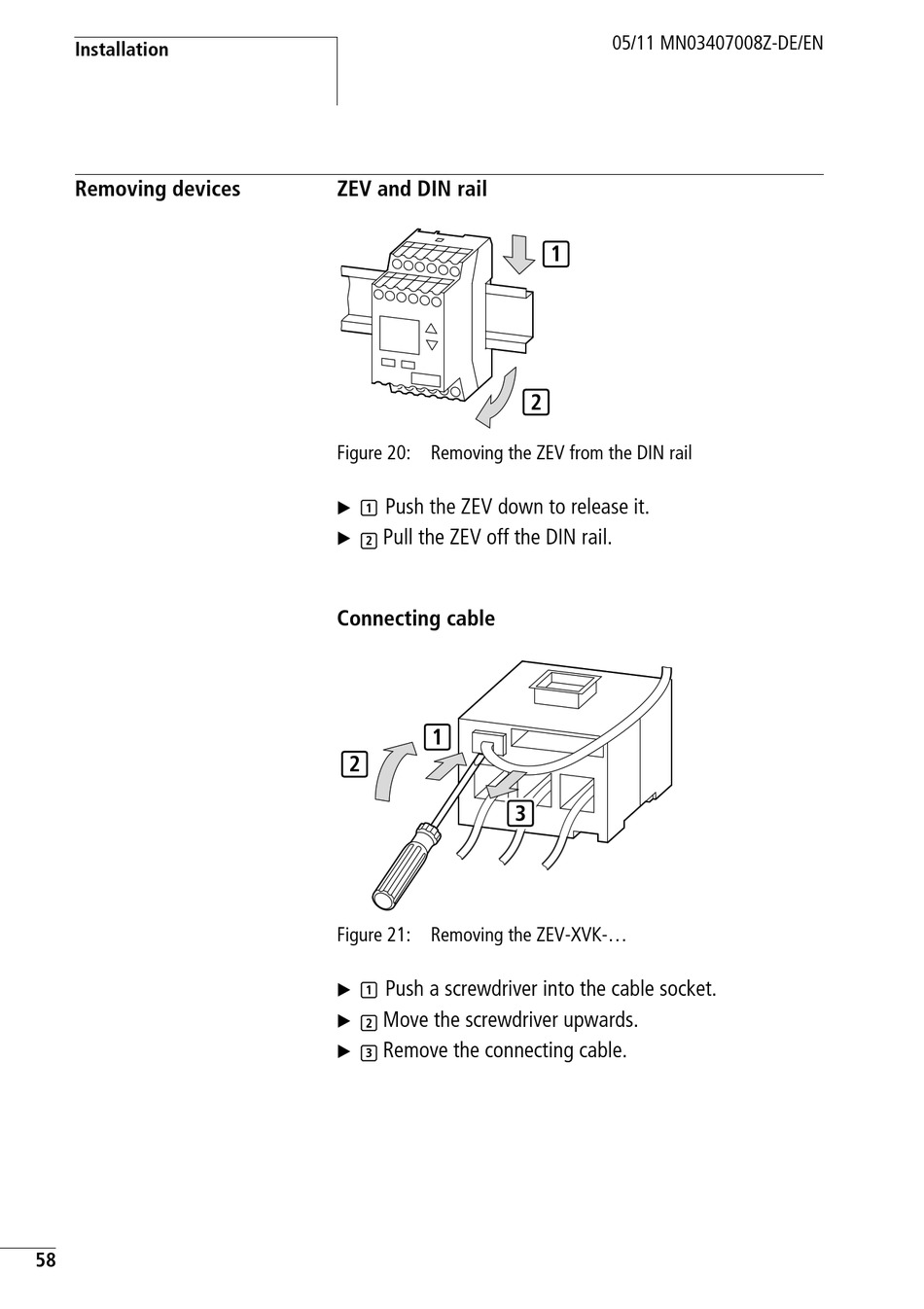

ZEV and DIN rail

Figure 20: Removing the ZEV from the DIN rail
Push the ZEV down to release it.
X
1
Pull the ZEV off the DIN rail.
X
2

Connecting cable

1
2
Figure 21: Removing the ZEV-XVK-...
Push a screwdriver into the cable socket.
X
1
Move the screwdriver upwards.
X
2
Remove the connecting cable.
X
3
