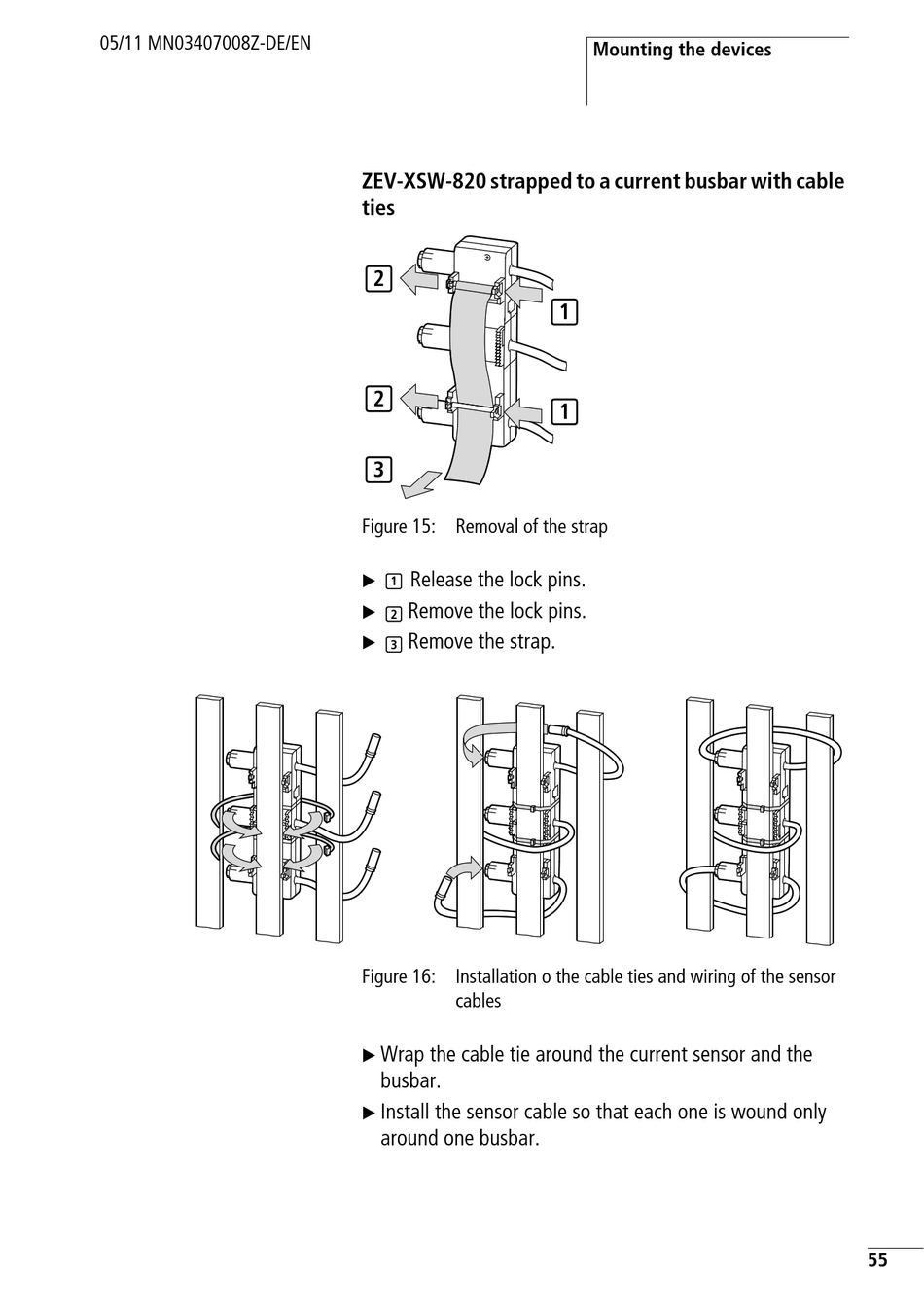

ZEV-XSW-820 strapped to a current busbar with cable
ties
2
2
3
Figure 15: Removal of the strap
Release the lock pins.
X
1
Remove the lock pins.
X
2
Remove the strap.
X
3
Figure 16: Installation o the cable ties and wiring of the sensor
cables
Wrap the cable tie around the current sensor and the
X
busbar.
Install the sensor cable so that each one is wound only
X
around one busbar.
Mounting the devices
1
1
