Installation
56

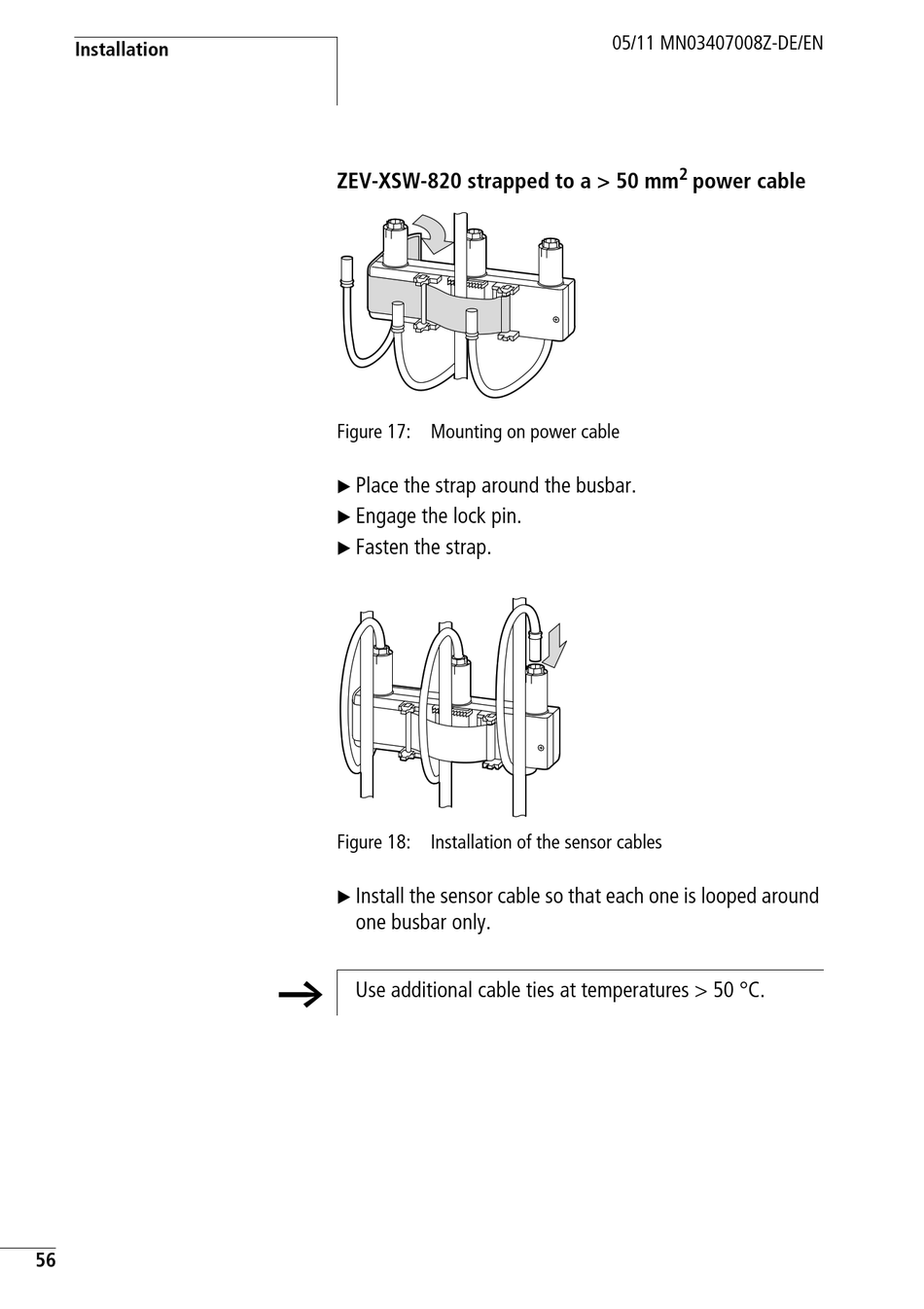

ZEV-XSW-820 strapped to a > 50 mm
Figure 17: Mounting on power cable
Place the strap around the busbar.
X
Engage the lock pin.
X
Fasten the strap.
X
Figure 18: Installation of the sensor cables
Install the sensor cable so that each one is looped around
X
one busbar only.
h
Use additional cable ties at temperatures > 50 °C.
05/11 MN03407008Z-DE/EN
2
power cable
