ZEV-XSW-25
ZEV-XSW-65
ZEV-XSW-145

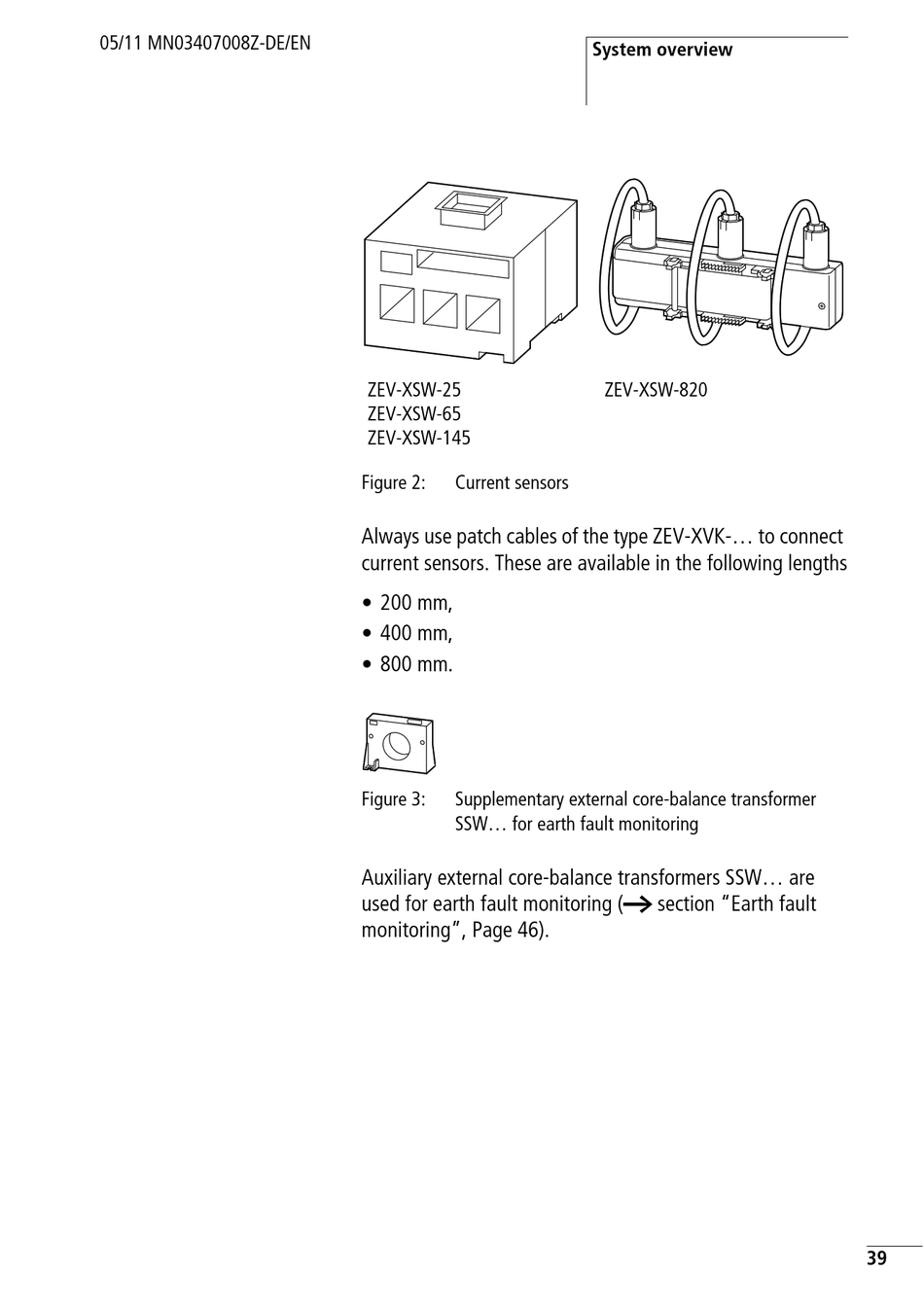

Figure 2: Current sensors
Always use patch cables of the type ZEV-XVK-... to connect
current sensors. These are available in the following lengths
• 200 mm,
• 400 mm,
• 800 mm.
Figure 3: Supplementary external core-balance transformer
SSW... for earth fault monitoring
Auxiliary external core-balance transformers SSW... are
used for earth fault monitoring (a section "Earth fault
monitoring", Page 46).
