05/11 MN03407008Z-DE/EN

ZEV and ZEV-XSW-820

F 0.8 m
(F 31.5")

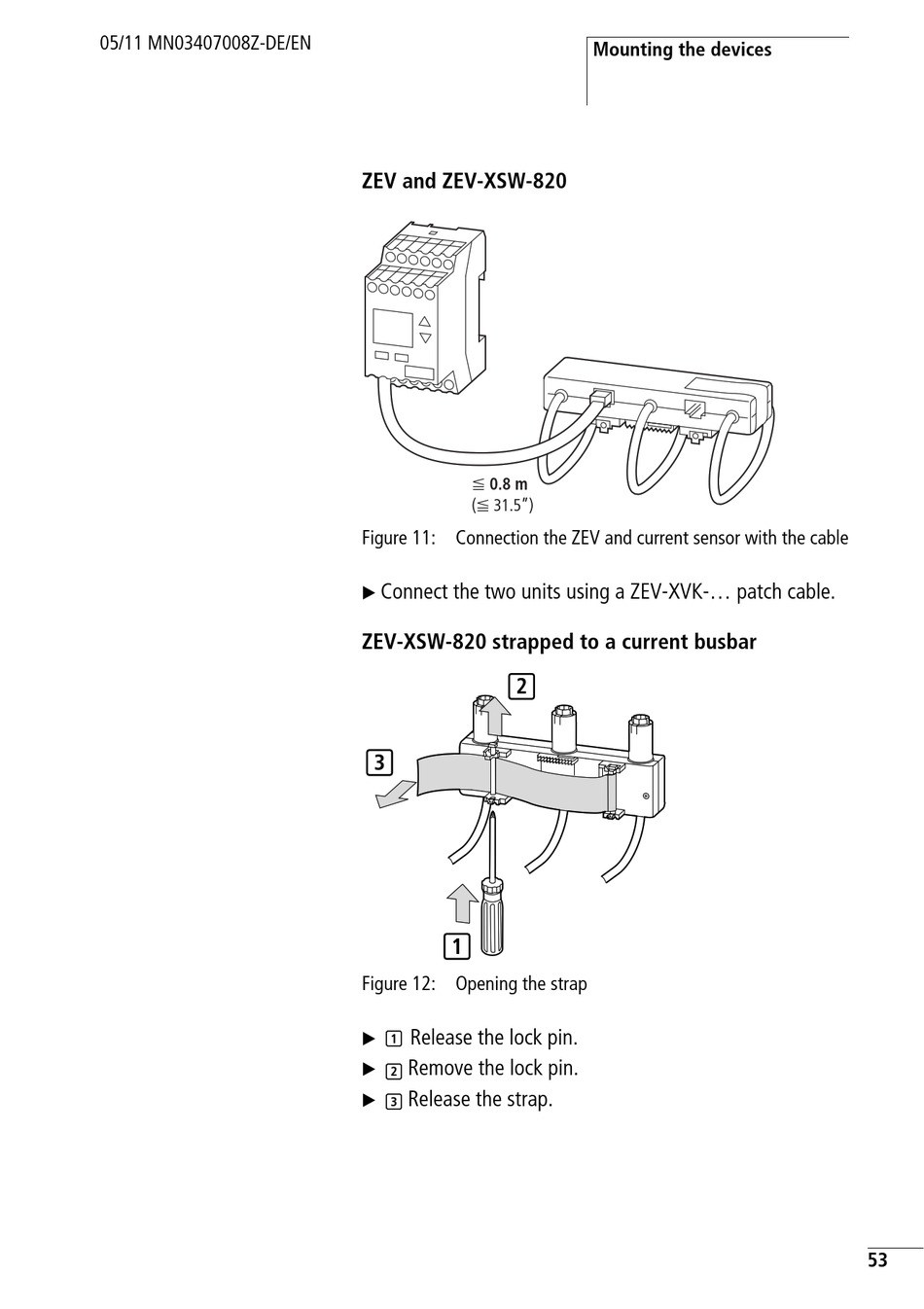

Figure 11: Connection the ZEV and current sensor with the cable
Connect the two units using a ZEV-XVK-... patch cable.
X
ZEV-XSW-820 strapped to a current busbar
2
3
1
Figure 12: Opening the strap
Release the lock pin.
X
1
Remove the lock pin.
X
2
Release the strap.
X
3
Mounting the devices
